Edge PitchFH/FZ5 Processing Item Function Reference Manual
237
2
Inspecting and Measuring
1 In the Item Tab area, click [Region setting].
2 Use the Drawing tools to specify the measurement region.
3 Click [OK] in the Figure setting area.
• [OK]: Changes the settings and returns to the previous menu.
• [Cancel]: Changes are discarded. R
eturns to the previous menu.
• [Apply]: Updates the settings without leaving edit window.
Edge Color Specification - For Color Cameras Only (Edge Pitch)
Specify the target color to be counted.
1 In the Item Tab area, click [Edge color].
2 Specify the target color for the edges to be counted (used as the reference color for edge
detecting).
Measurement Parameters (Edge Pitch)
This item specifies the judgement condition for measurement results. Also specify the range for positions to be
judged as OK.
1 In the Item Tab area, click [Measurement].
The edge profile of the measurement region (straight line) is displayed in the Image Display area.
Setting method Description
Image Display area
Specify a region on the image that includes the target
co
lor. The average color of the specified
region is registered.
Color chart
Click the color on the color chart to spec
ify it. The RGB values for the specified color are
displayed at the bottom.
R, G, B The color to be detected is set with the RGB values.
Difference R, G, B
This sets the allowable color difference for detecting the edge,
using the specified color as the
reference. The larger the difference values, the larger the color range that is used to detect the
edge.

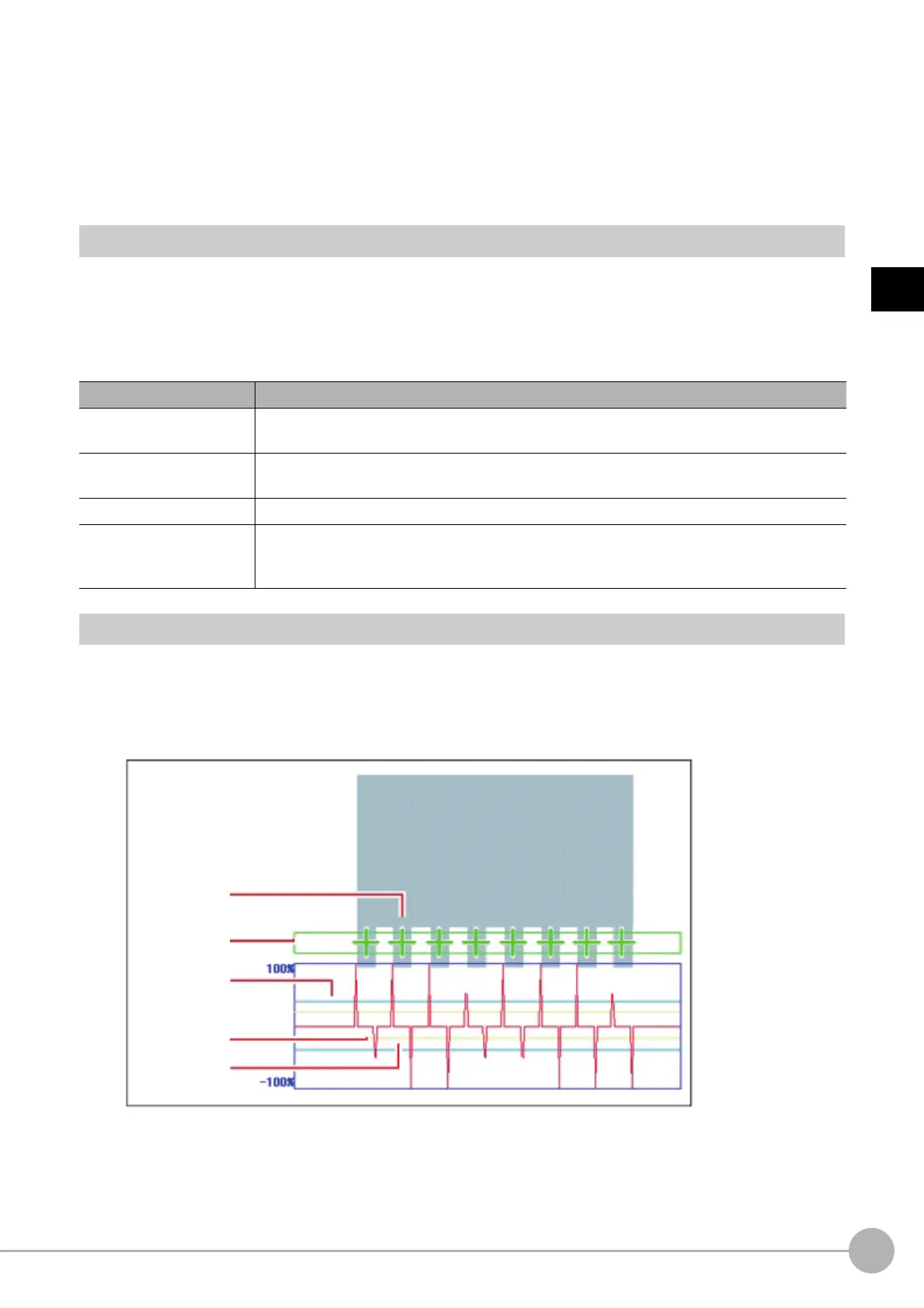

Detected
edge
Measurement
region
Edge level
(blue)
Color difference
distribution
Noise level
(yellow)
