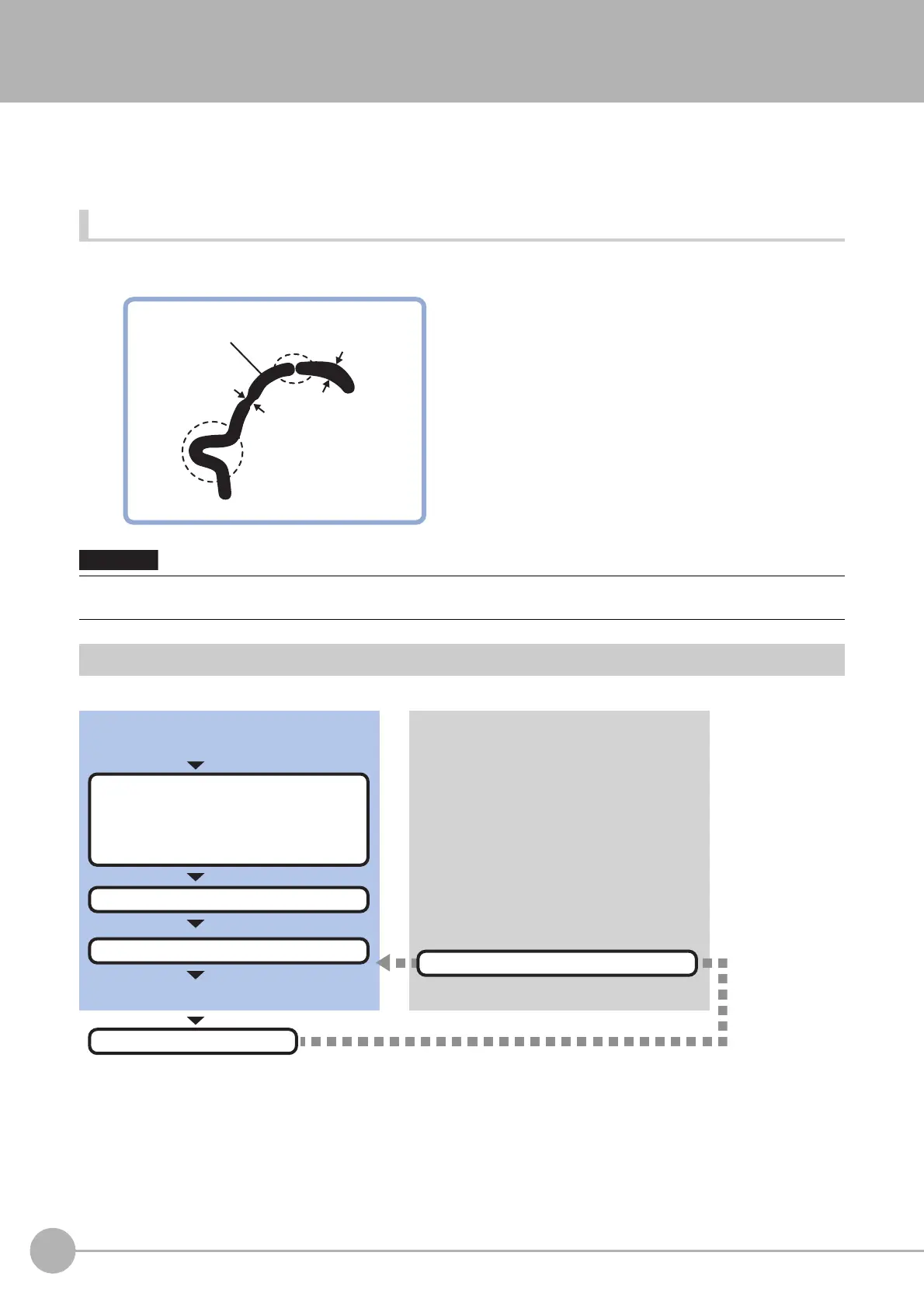

Glue Bead Inspection
494
FH/FZ5 Processing Item Function Reference Manual
Glue Bead Inspection
Inspect the coated condition of coating (sealer, etc.). You can inspect coating of a specified color for gaps or
runoffs along the coating path. In addition to inspecting the above, you can also measure the maximum width,
minimum width and average of coating.
Used in the Following Case
• When you want to inspect coating for gaps and runoffs
Settings Flow (Glue Bead Inspection)
Setting of coating gap inspection follows the flow shown below.
• Processing is different for color images and monochrome images. If the camera type, color camera, or monochrome
camera, was changed from a previous setup, a reset of some settings may be needed.
Coating
Gap
Max. width
Min. width
Extrusion
Important
Make sure to set Set as necessary.
Check results/make adjustments
Start
â–²
Region Setting (Glue Bead Inspection)
â–²
Measurement Parameters (Glue Bead Inspection)
Settings complete
Test measurement
â–²
Output Parameters (Glue Bead Inspection)
• For color cameras
â–²
Color Setting (Glue Bead Inspection)
• For monochrome cameras
â–²
Binarization (Glue Bead Inspection)
