Get Unit Figure
658
FH/FZ5 Processing Item Function Reference Manual

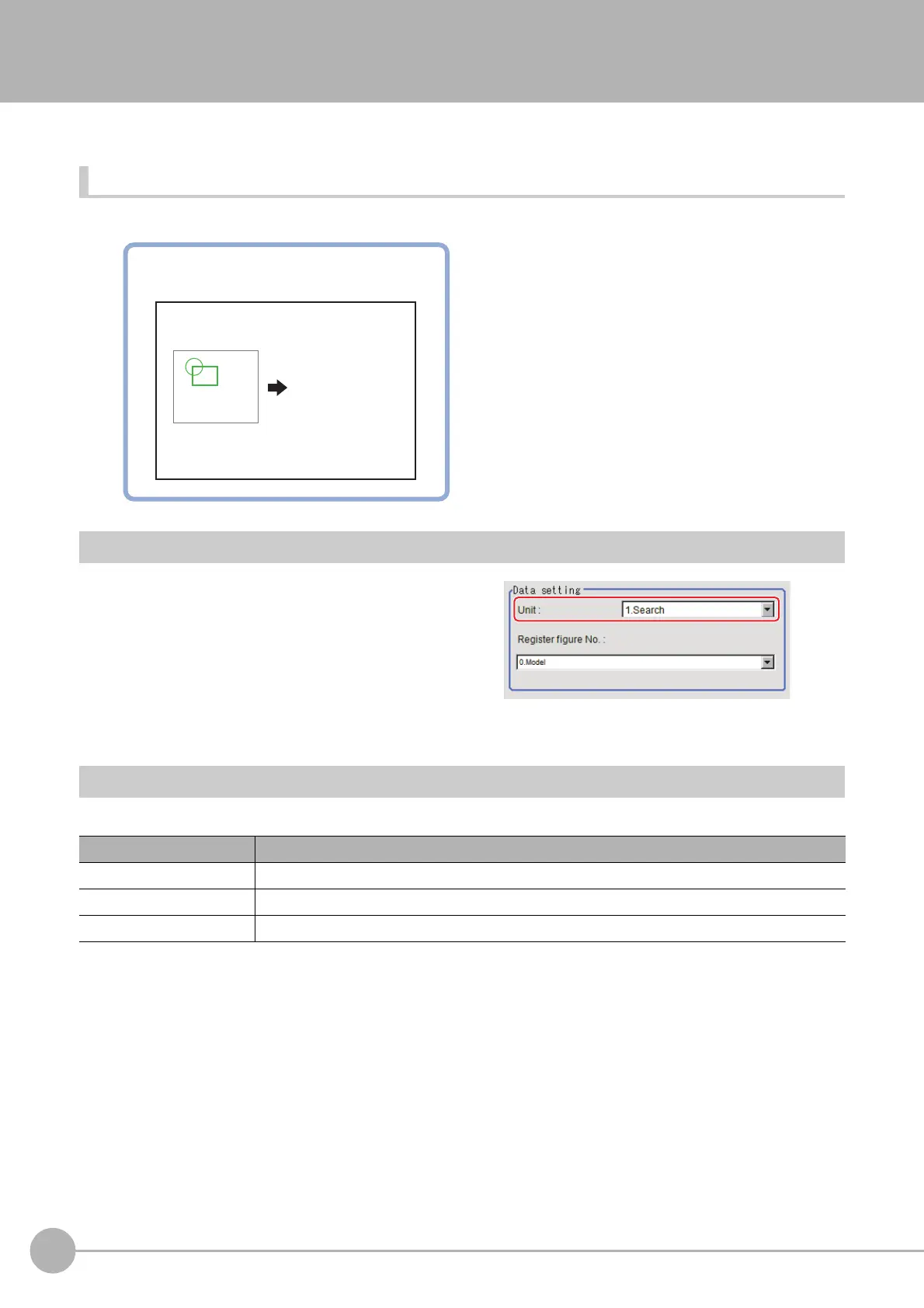

Get Unit Figure
Acquires and displays figures drawn by other processing units.
Used in the Following Case
• When you want to acquire data such as coordinates from figure information
Parameter Settings (Get Unit Figure)
1 In the "Data setting" area, click the [Unit]
[ ] to set the number of the registered
figure you want to acquire.
2 Click [ ] for [Resister figure No.] and
specify Register figure No. you would like to
acquire.
Key Points for Test Measurement and Adjustment (Get Unit Figure)
The following content can be confirmed in the "Detail result" area using text.
Displayed items Description
Judge Judgement result
Target unit Target unit which acquired figure
Register figure No. Acquired figure number
Example) Acquiring data from figure information
(model, measurement region) set in a unit.
Rectangle
Circle
Radius : 250
View X: 250
Y: 200


