Glue Bead InspectionFH/FZ5 Processing Item Function Reference Manual
497
2
Inspecting and Measuring
Binarization (Glue Bead Inspection)
When a monochrome camera is connected, the 256-tone grayscale images taken in from the camera are
converted into binary black-and-white images before the images are measured. Converted white pixels are
measured.
This specifies the level for converting
g
rayscale images into binary images.

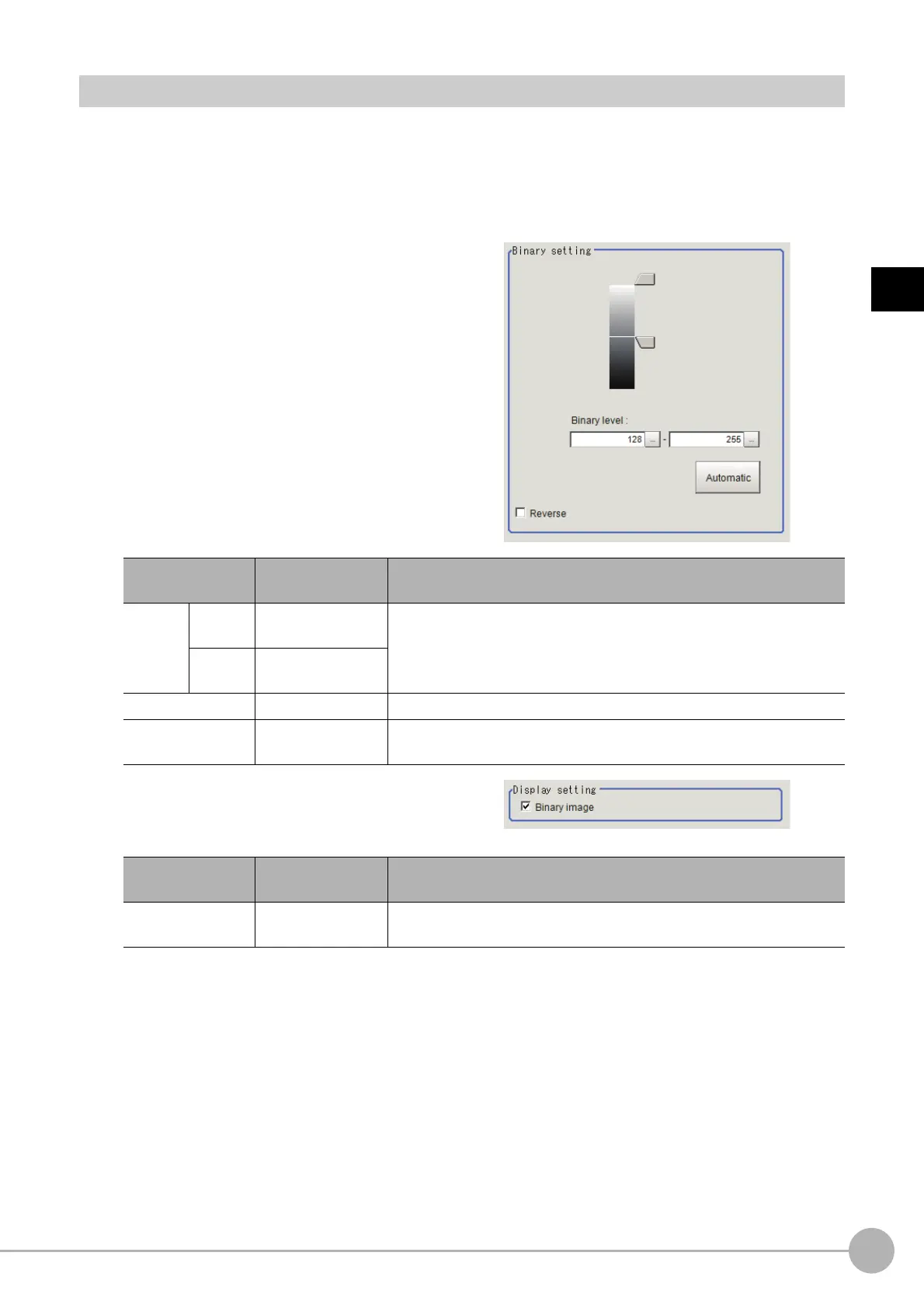

1 In the Item Tab area, click [Binary].
2 In the "Binary setting" area, set the
reference density range.
3 If necessary, set up display settings for
the images displayed in the "Display
setting" area.
Setting item
Setting value
[Factory default]
Description
Binary
level
Upper
limit
0 to 255
[128]
Specify the level for converting 256-tone grayscale images to binary
images.
Set the binary level so that the measurement object is converted
to white pixels. You can also set the binary level so that only intermediate
density is measured.
Lower
limit
0 to 255
[128]
Automatic - Optimum binary levels are calculated automatically and set.
Reverse
• Checked
•[Unchecked]
This item reverses black and white colors.
Setting item
Setting value
[Factory default]
Description
Binary image
• [Checked]
• Unchecked
The image is displayed in binary with black and white.
