Image Logging
674
FH/FZ5 Processing Item Function Reference Manual
Image Logging
This is used when saving measurement images to on-board memory, RAMDisk or USB memory.
This enables preparation of logging conditions using an
expression and is more flexible than the system image
logging conditions settings.
However, the settings of this unit are enabled if "None" is set on the [Image logging] in [Logging setting] of
[S
ystem] menu.
Refer
ence: "Chapter 3 Logging Measurement Values and Measurement Images instruction" in the Vi
s
ion
Sensor FH/FZ5 Series Vision System User's Manual (Z365).
If settings that perform image loggin
g
for multiple units during measurement are executed, the last settings
executed are enabled.
Used in the Following Case
• This is used when saving logging images under specific conditions.
• If several image logging units are set in the flow, saving is performed based on the last image logging conditions
executed.
• When [Multiple image logging] in [Logging setting]
o
f [System] is [ON], refer to the followings.
• All of the transfered images will be saved according to [Image lo
gging] setting.
• Latest images that exceed Sensor Controller memory size will be
deleted because all of the transfered images will be
saved temporarily.
• When [Save to memory + FTP Server] is selected for destination, sp
ecify the
destination folder name and prefix of the
image logging file using only single-byte alphanumeric characters and numbers.

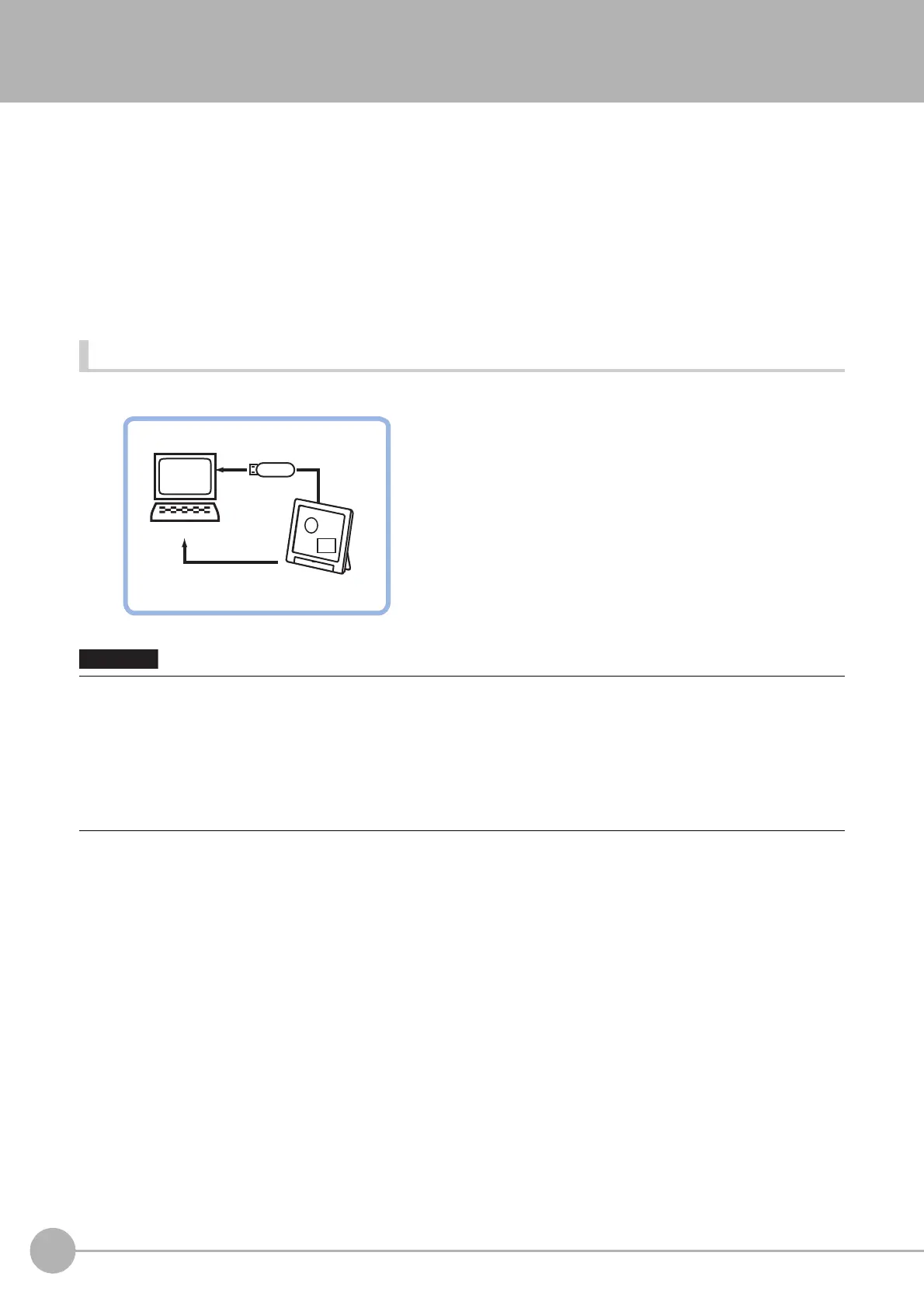

USB memory
device
Sensor controller
PC
To Next Page
