Gravity and AreaFH/FZ5 Processing Item Function Reference Manual
317
2
Inspecting and Measuring
Gravity and Area
Inspect using the area of the specified color.
Used in the Following Case
• Label deviation measurement
• Detection of defects, contamination, and stains of measurement objects whose appearance is
not defined
• Processing is different for color images and monochrome images. If the camera type, color camera, or monochrome
camera, was changed from a previous setup, a reset of some settings may be needed.

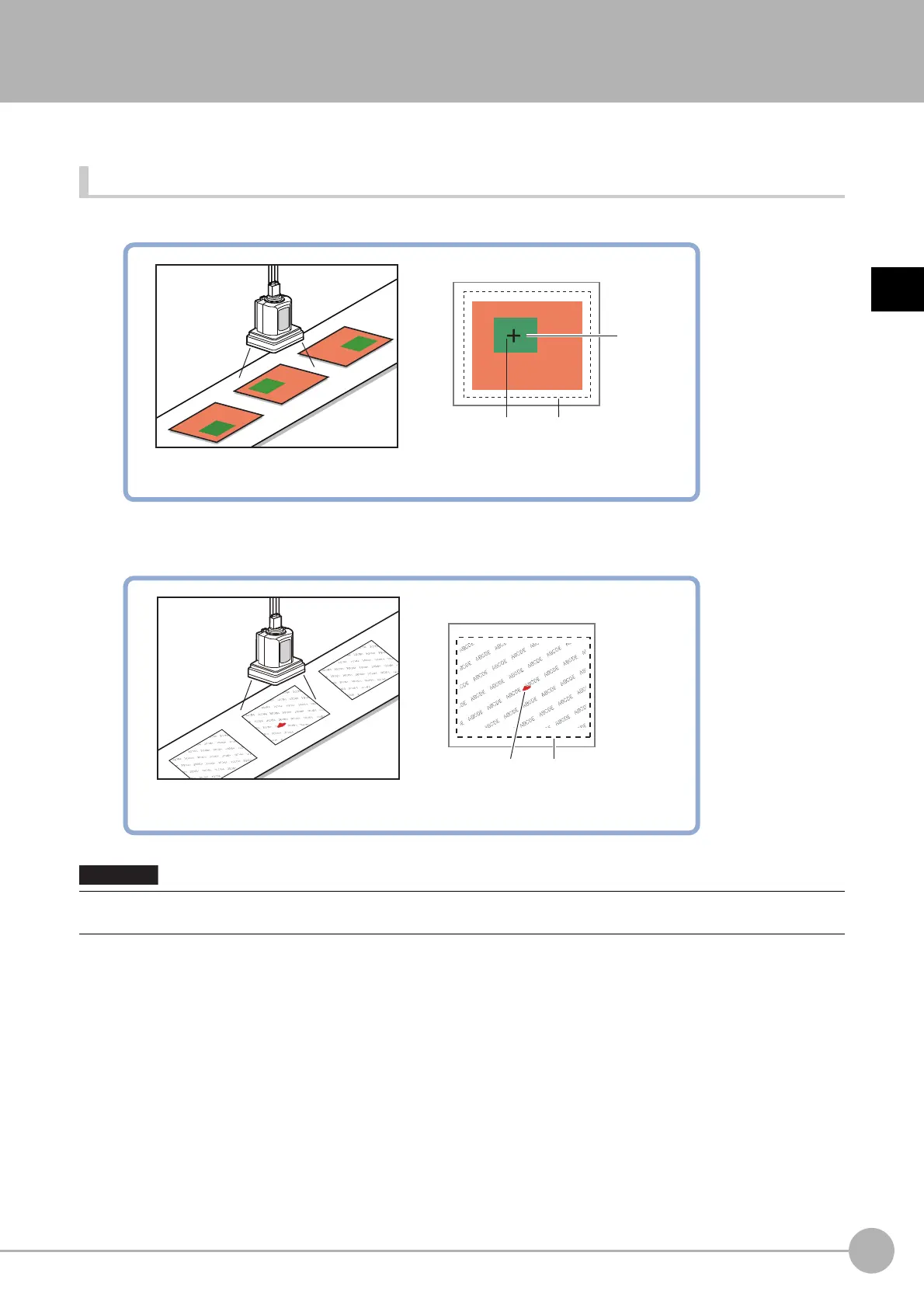

Measurement
region
Specified
color
Center of
gravity
Measurement can be enabled by gravity coordinates of specified color in measurement region.
Measurement regionDefect
Measurement can be enabled by area of specified color in measurement region.
