Edge Pitch
236
FH/FZ5 Processing Item Function Reference Manual

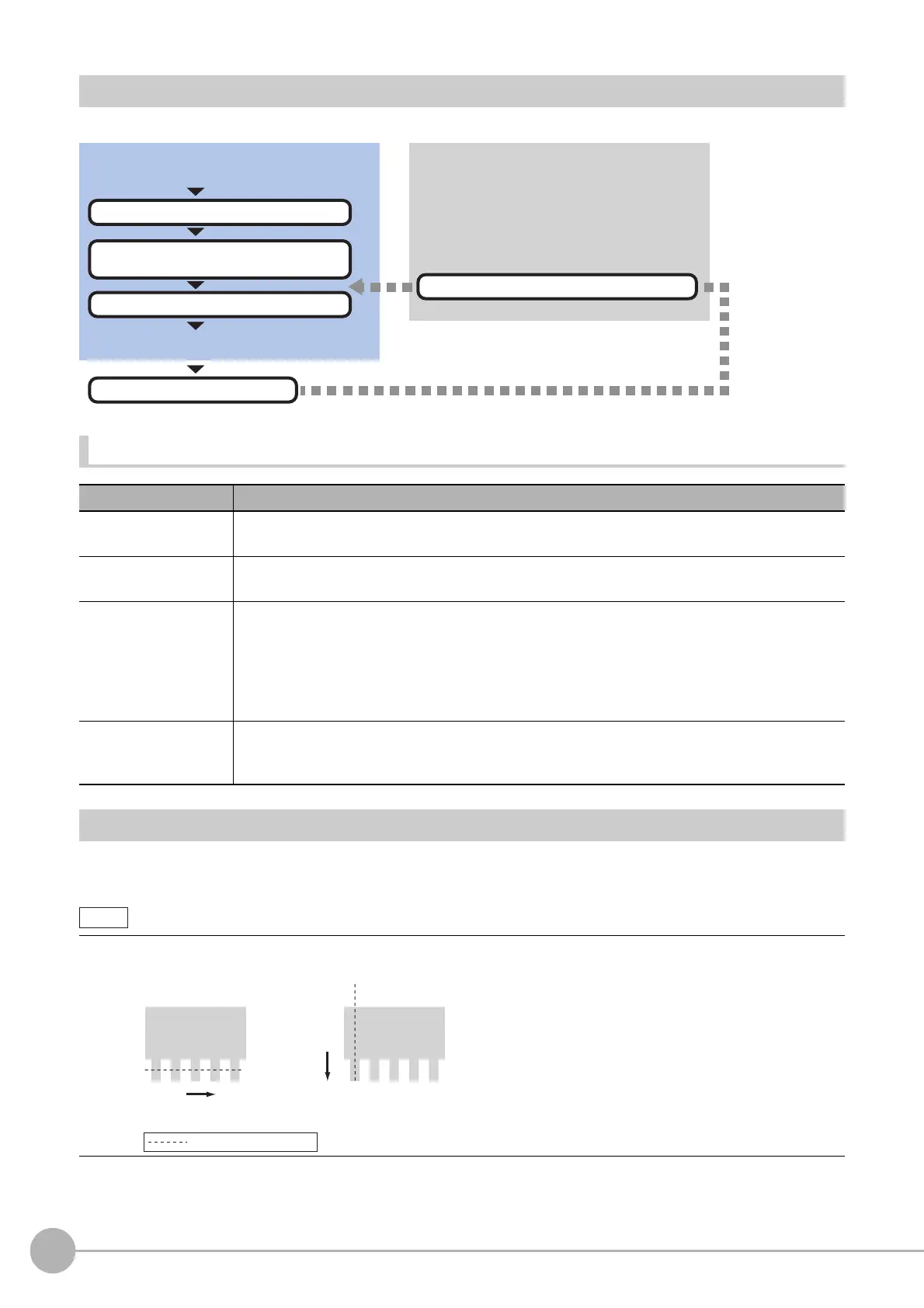

Settings Flow (Edge Pitch)
Set the Edge Pitch with the following steps.
Item List for Edge Pitch
Region Setting (Edge Pitch)
This item is used to set up the measurement area.
Use a straight line, circumference, or arc to spec
ify a measurement region for [Edge Pitch].
Item name Description
Region setting
This item is used to set up the measurement area.
Reference: Region Setting (Edge Pitch) (p.236)
Edge color
(for color cameras only)
This item selects the color informa
t
ion for the edges to be detected.
Reference: Edge Color Specification - For Color Cameras Only (Edge Pitch) (p.237)
Measurement
This item specifies the judgement condition for measurement results. Measurement parameter can
be changed as needed to address unstable measurement results.
Specify the pitch and width for counting edges.
The displayed items depend on whether your camera
is a color or monochrome camera. Normally,
the factory default value will be used.
Reference: Measurement Parameters (Edge Pitch) (p.237)
Output parameter
This item can be changed if necessary. Normally, the factory default value may be used.
Select the measurement result coordinates and set how to handle the coordinates.
Reference: Output Parameters (Edg
e Pi
tch) (p.240)
• When setting up a measurement region, please include all the edges to be detected.
Necessary Steps Optional Steps
Verify/Adjust results
▲
Region Setting (Edge Pitch)
▲
Edge Color Specification – For Color
Cameras Only (Edge Pitch)
▲
Measurement Parameters (Edge Pitch)
Start
Settings completed
Test measurement
▲
Output Parameters (Edge Pitch)
Measurement
direction
5
0
: Measurement area
OK NG
Measurement
direction
To Next Page
