PLC Master Calibration
772
FH/FZ5 Processing Item Function Reference Manual

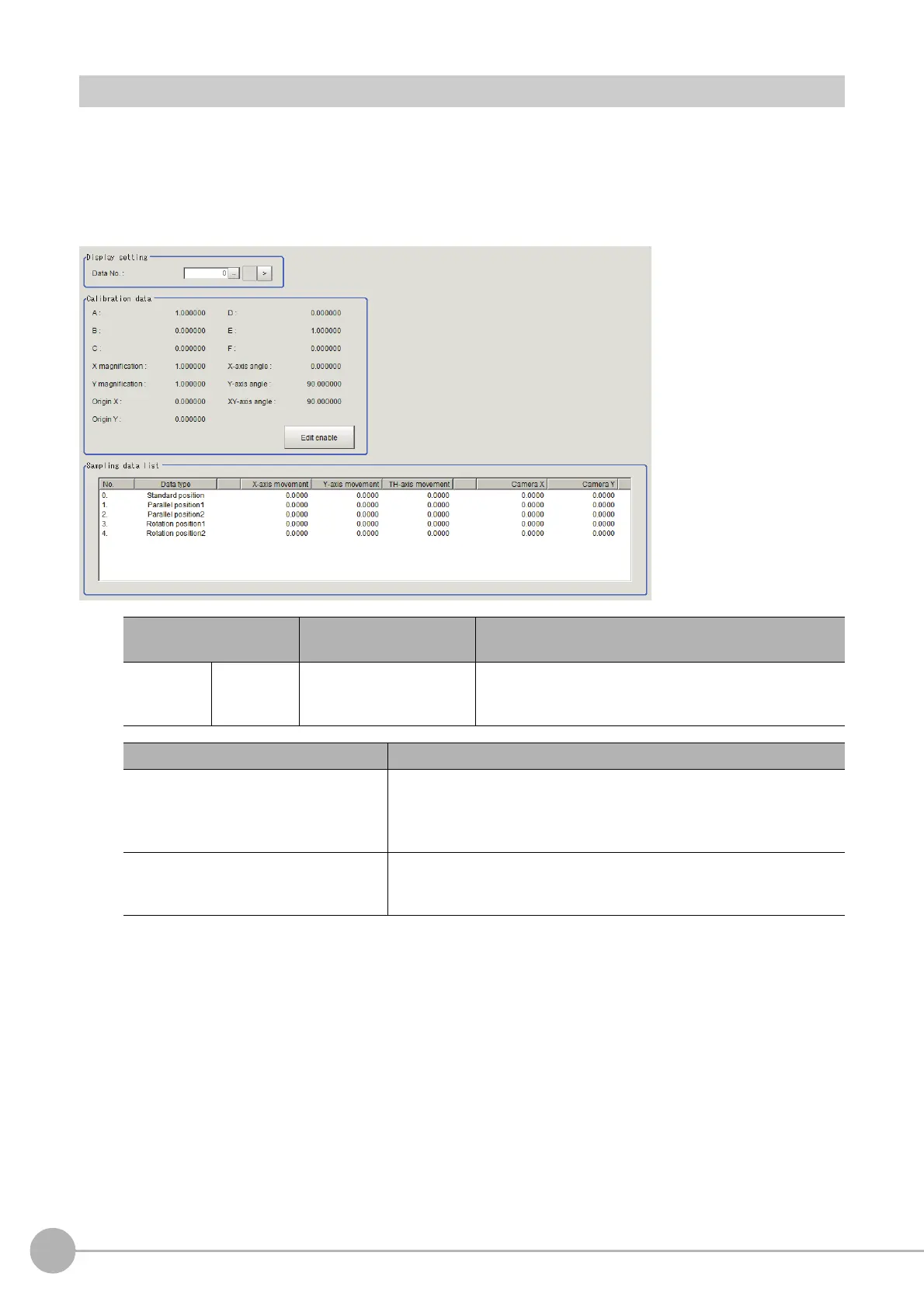

Calibration Result (PLC Master Calibration)
The created calibration data is displayed in this item. The calibration data can be adjusted directly using the Edit
function.
It is also possible to confirm the samplin
g da
ta used for the calculation.
1 In the Item Tab area, click [Calibration result].
2 This item confirms the calibration data you created.
Setting item
Setting value
[Factory default]
Description
Display
setting
Display
setting
Data No.
0 to 7
[0]
Sets the calibration data number that displayed the
calcul
ati
on results.
Item Description
Calibaraiton data
Displays details about the calibration parameters.
Clicking [Enable direct edit] will let you change the numbers for A to F.
If any number has been changed, the message "This data has been
directly edi
te
d" appears at the left of [Enable direct edit].
Sampling data list
Displays sampling data used for creating the calibration parameters.
Normally, non-existing axis value will be 0 when Xθ, Yθ, θX, θY. X
o r Y
stage is selected.
To Next Page
