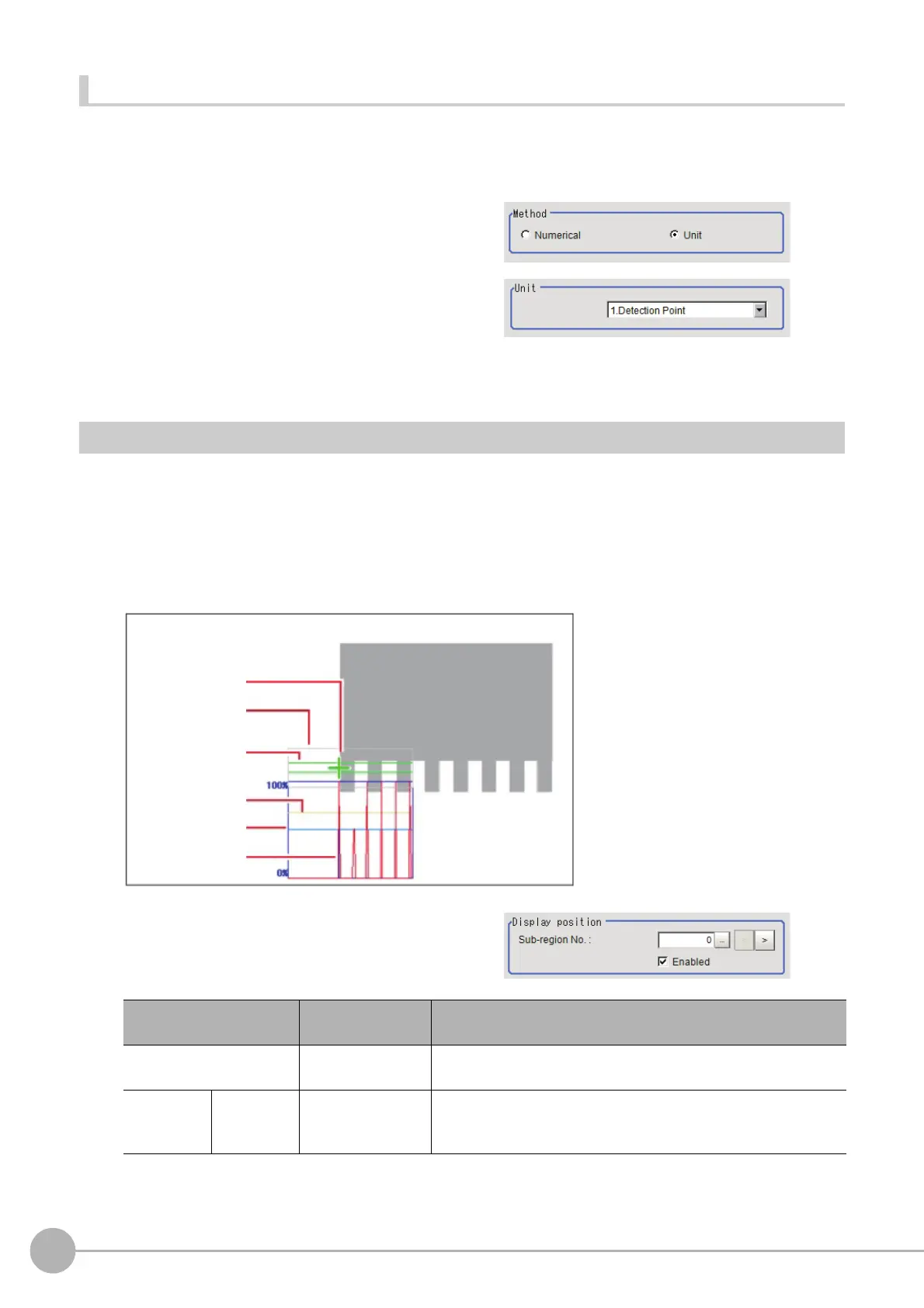

Scan Edge Position
248
FH/FZ5 Processing Item Function Reference Manual
Referencing a unit
Set a reference by referencing a detection point unit with registered X coordinate, Y coordinate and angle data.
1 In the Item Tab area, click [Ref. setting].
In the display area, the current reference position will be displayed as the crosshair cursor.
2 In the "Method" area, select "Unit".
3 In the scene in the "Unit" area, select a
detection point unit.
4 Perform the next measurement, and the reference will be displayed.
Measurement Parameters (Scan Edge Positions)
Measurement parameters can be changed as needed to address unstable measurement results. Normally, the
factory default value will be used.
After changing a setting, check wheth
e
r measurement can be done properly by performing an actual
measurement.
1 In the Item Tab area, click [Measurement].
The edge profile of the measurement region is displayed as a graph in the Image Display area.
2 Set the value of each item in the Display
position area.
Setting item
Set value
[Factory default]
Description
Sub-region No. [0] to 99
Specify the edge measurement number
for which the edge profile
is displayed.
Enabled
• [Checked]
• Unchecked
Specify enable/disable for the displayed edge measurement
nu
mber
. When disabled (unchecked) is specified, that edge
measurement number is not measured.
Detected edge
Measurement
region (white)
Divided measurement
region (green)
Noise level
(yellow)
Edge level
(blue)
Color difference
distribution
