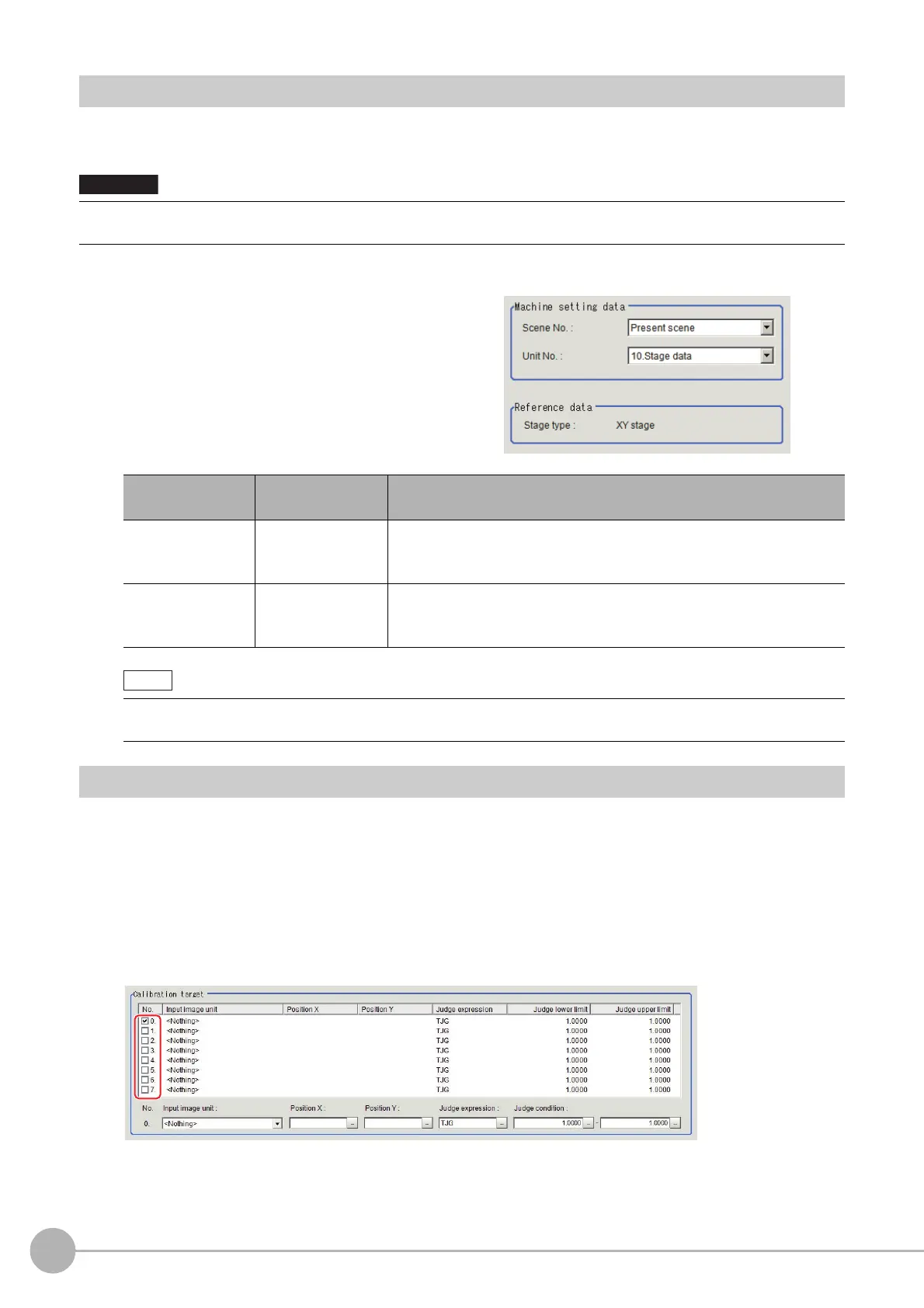

Vision Master Calibration
746
FH/FZ5 Processing Item Function Reference Manual
Machine Setting (Vision Master Calibration)
Select a processing unit (stage data or robot data) under which external device information needed for
calculation of axis movement amount is held.
1 In the Item Tab area, click [Machine setting].
2 Select the processing unit that retains
information on external device.
Information of the selected processing unit is
displayed in the reference data display area.
Displayed contents will be change depending
o
n
selected type of Robot or Stage.
Calibration (Vision Master Calibration)
This item sets data related to calibration. Sets the number of calibration data to be created and the measurement
processing items to be used for sampling in the arithmetic expression. Also sets the output method for the
calculated axis movement amount.
Displayed contents will be change depending on selected
type of Robot
or Stage.
1 In the Item Tab area, click [Calibration].
2 Check the calibration data items that you want to set.
Calibration data is created for the checked numbers.
• [Vision Master Calibration] refers to [Stage Data] or [Robot Data]. Be sure to register [Stage Data] or [Robot Data] with a
given scene.
Setting item
Setting value
[Factory default]
Description
Scene No.
[Present scene]
Scenes 0 to 127
Select a scene number (stage data or robot data) under which external
device i
nformation needed for calculation of axis movement amount is
held.
Unit No. ---
From among the referenced scene numbers, select a processing item
(stage data or robot data) under which external device information
needed for calculation of axis movement amount is held.
• If the number of scenes is increased using the scene g
r
oup conversion tool, the maximum value that can be
selected in "Scene No." changes.
To Next Page
