PLC Master CalibrationFH/FZ5 Processing Item Function Reference Manual
767
4
Support Inspection and Measurement
PLC Master Calibration
This processing item is specifically provided for calibration between the camera coordination system and the
control equipment coordination system.
In this processing item, the axis movement amount of the
control equipment necessary for calibration can be set
freely.
If how to move the calibration mark has already been determined and it cannot be changed, use this processing
item. If it can b
e
changed, we recommend you to use [Vision master calibration].
Used in the Following Case
• When you want to position the FPD panel
• The calibration data created with this processing item can be referred from [Calibration Data Reference].
Unlike other calibration-related proc
essing items, note that this processing item cannot use the calibration data on its
own.
• This function refers processing items, e.g. Stage Data or Robo
t Dat
a, having external device information required the
calculation of movement distance. If you change those items, setting contents of PLC Master Calibration will change.
Rechecking settings is required.

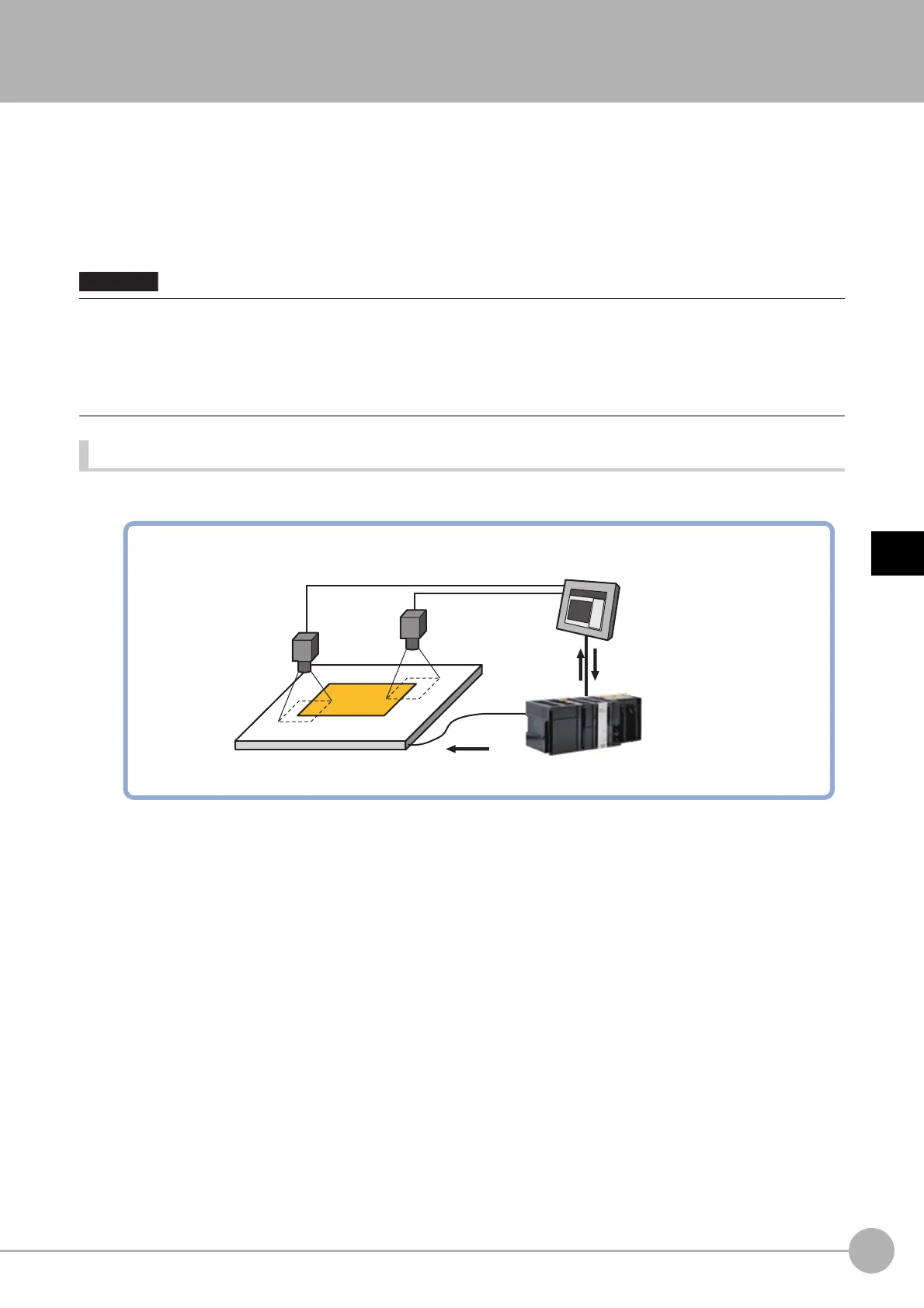

PLC calculates the axis movement amount of stages required for calibration, and sets it to FH/FZ5.
FH
PLC
Camera 0
Camera 1
Trigger input
Axis control of stageStage
Response
Stage axis movement
amount
To Next Page
