Label DataFH/FZ5 Processing Item Function Reference Manual
351
2
Inspecting and Measuring
Label Data
You can specify a desired label number and obtain measurement values for that label stored by other processing units.
The processing items that can be set up as reference objects are the following items that perform the labeling processing.
• Labeling
Used in the Following Case
• Label position acquisition
• Processing is different for color images and monochrome images. If the camera type, color camera, or monochrome
camera, was changed from a previous setup, a reset of some settings may be needed.
• Do not insert the following processing items between Label Data and Labeling units.
• Camera Image Input
• Camera Switching
• Position Compensation
• Color Gray Filter
• Filtering

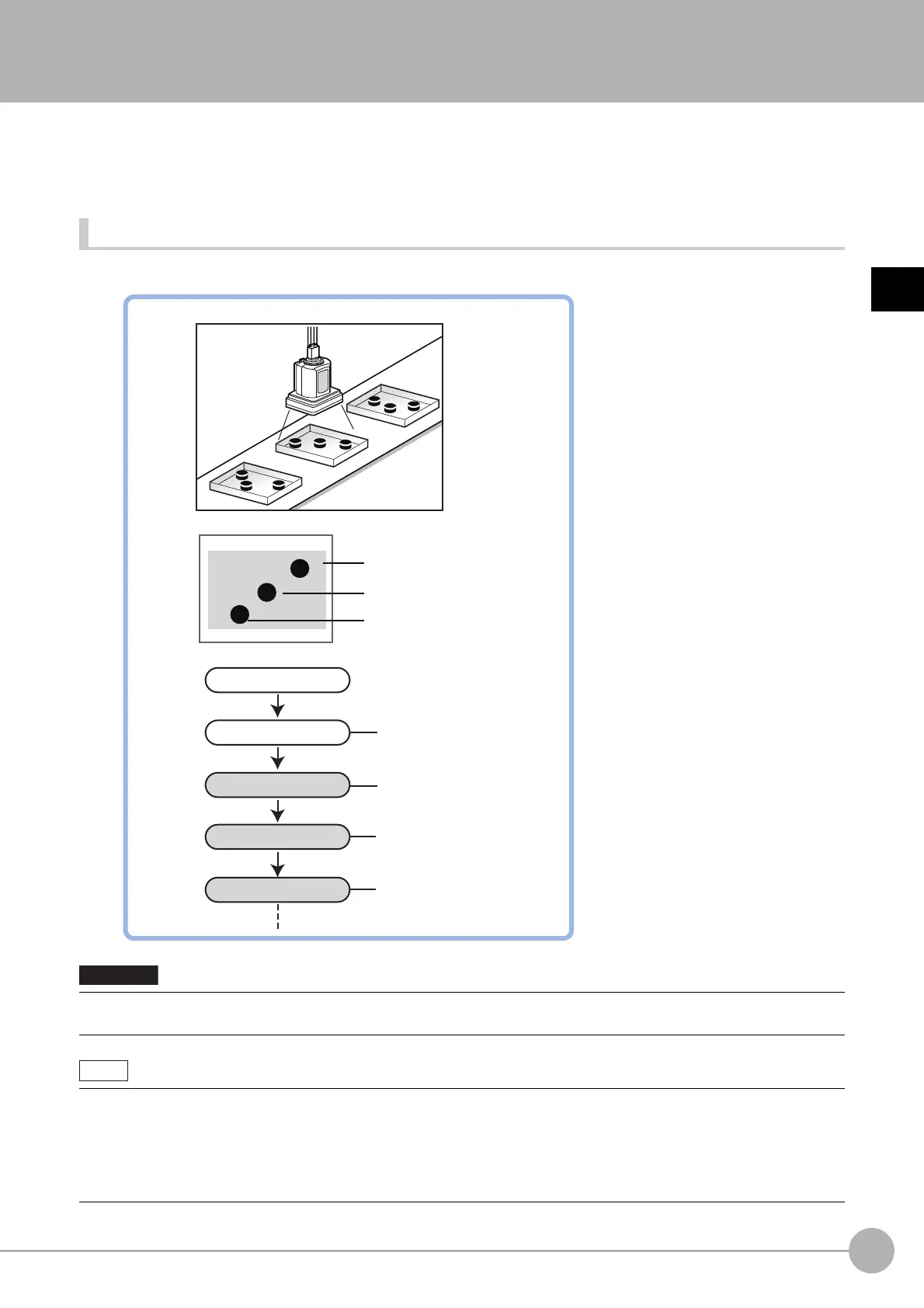

Example) Obtaining the position for each block
Assigning the label numbers
0.
1.
2.
3.
4.
Label 0
Label 2
Label 1
Obtaining measured values for
Label 0
Obtaining measured values for
Label 1
Obtaining measured values for
Label 2
Camera Image Input
Labeling
Label Data
Label Data
Label Data
Important
Note
