Inspecting and Measuring
[Note 1]: Comparison is with the pixel separated by exactly the comparison interval (the value set in "Edge
Pitch").
Output Parameters (Circle Angle)
Specify how to treat the coordinates to be output to the external device as measurement results. This item can
be changed if necessary. Normally, the factory default value will be used.
1 Click [Output parameter] in the Item Tab area.
2 Set up each item.
Skipping angle
0.1 to 10
[0.4]
Specify the interval degrees for extracting po
ints. The color of all the
points on the circumference (360° circumference/skipping angle)
corresponding to the set skipping angle.
For the initial setting, the optimal value will be automatically set up based
on the radi
us of the drawn circle.
The bigger the value set, the faster the
proce
ssing, but the lower the
detection angle and rotation precision.
Edge pitch
1 to 99
[10]
Specify the spacing for calculating the color difference.
This item is enabled only when "Mode" is set to "Edge" or "Defect".
• After setting up the measurement parameters, changing the output p
a
rameters will cause measurement results to vary
accordingly. If the output parameters have been changed, re-specify the measurement, too.
Setting item
Set value
[Factory default]
Description
Output coordinates
• [After scroll]
• Before scroll
As measurement results, select whether to output coordinate values
to external de
vices before or after the position deflection correction is
applied.
Calibration
• [OFF]
•ON
Select whether to reflect the calibration
in
the values output to the
external device as measurement results.
ON: Output the coordinates converted into actual dimensions.
OFF: Output the camera coordinate values.
Setting item
Set value
[Factory default]
Description

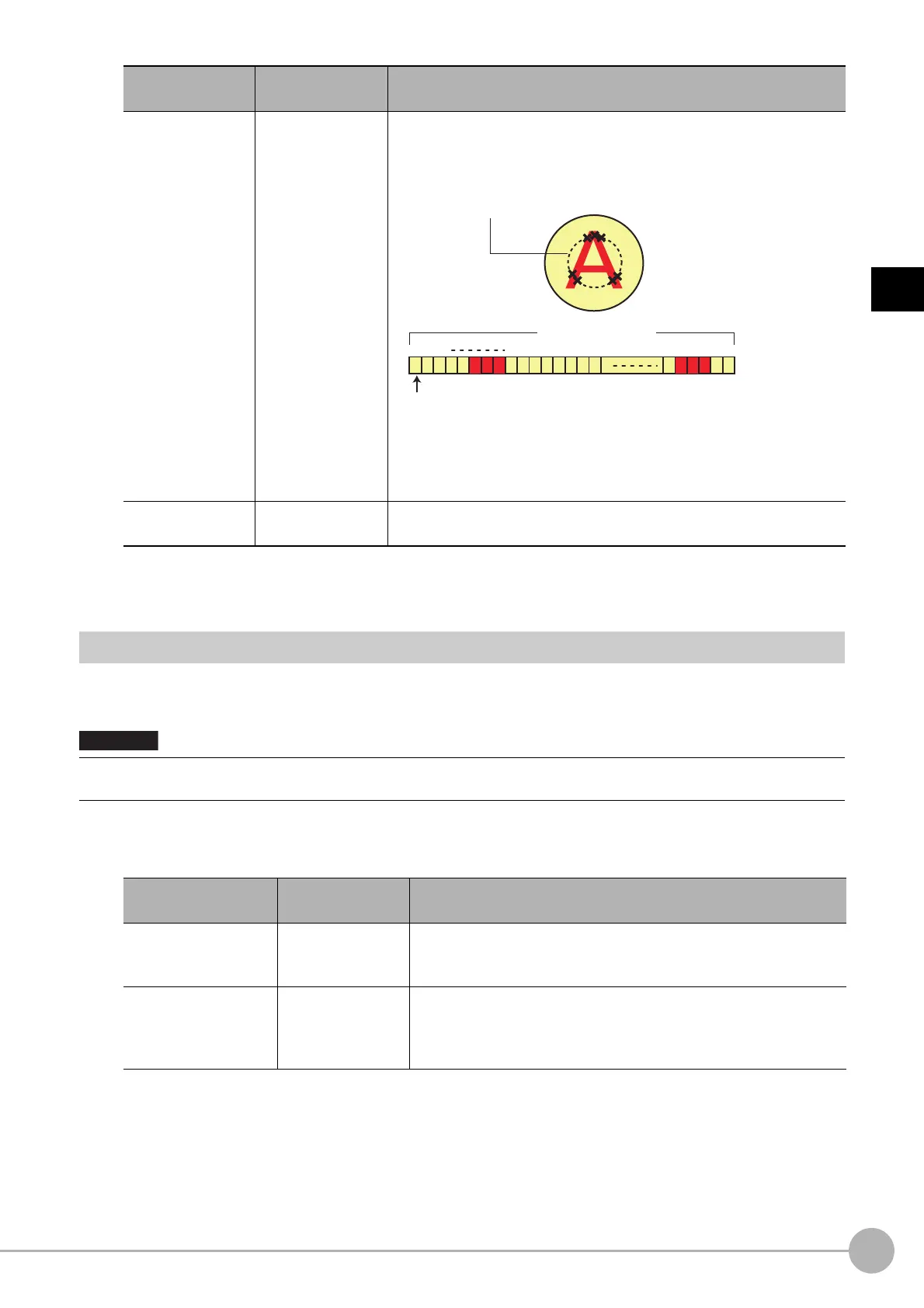

Calculate the color for every other point.
360° (600 point)
12 3
600
Example) When the scale unit is 0.6°
Measure 600 point on this line in the pixel unit.
