Inspecting and Measuring

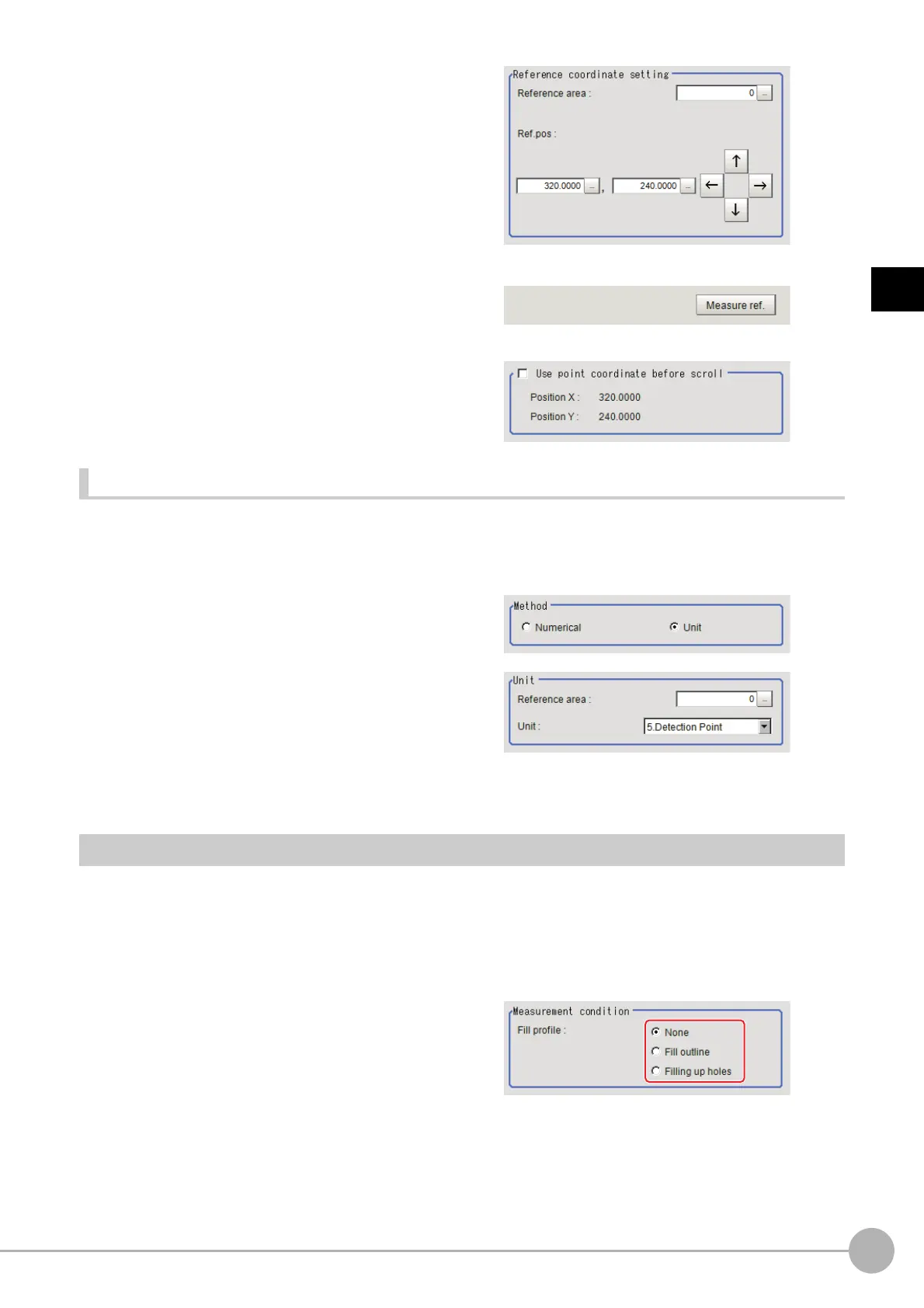

4 Make fine adjustments using numeric
value inputs or the arrow buttons as
required.
5 To remeasure on the displayed image
and set the reference, click the [Measure
ref.] button.
6 To use data before position
compensation for the reference setting
coordinates, place a check at "Use point
coordinate before scroll".
Referencing a unit
Set a reference by referencing a detection point unit with registered X coordinate, Y coordinate and angle data.
1 In the Item Tab area, click [Ref. setting].
In the display area, the current reference position will be displayed as the crosshair cursor.
2 In the "Method" area, select "Unit".
3 In the scene in the "Unit" area, select a
detection point unit.
4 Perform the next measurement, and the
reference will be displayed.
Measurement Parameters (Gravity and Area)
This item specifies the judgement condition for measurement results. Specify the upper and lower limit values for
the area and the gravity center X/Y.
Measurement parameters can be changed as needed to address unstable measurement results or to increase
the processing
speed. Normally
, the factory default value will be used.
1 In the Item Tab area, click [Measurement].
2 If necessary, in the "Measurement
condition" area, select an option for [Fill
profile].
If the measurement target has holes in it,
specify how to process the holes. Normally,
the factory default value will be used.
To Next Page
