Calibration Data Reference
708
FH/FZ5 Processing Item Function Reference Manual
Calibration Data Reference
Calibration data and distortion compensation data held under other processing items can be referenced.
Referenced data will be used to perform coordinate conversion
processing and distortion compensation
processing on measurement results after this processing unit.
As for distortion compensation processing, you can select n
o
t only "Compensate measurement result," but also
"Compensate measurement image".
Used in the Following Case
• When you want to position the FPD panel

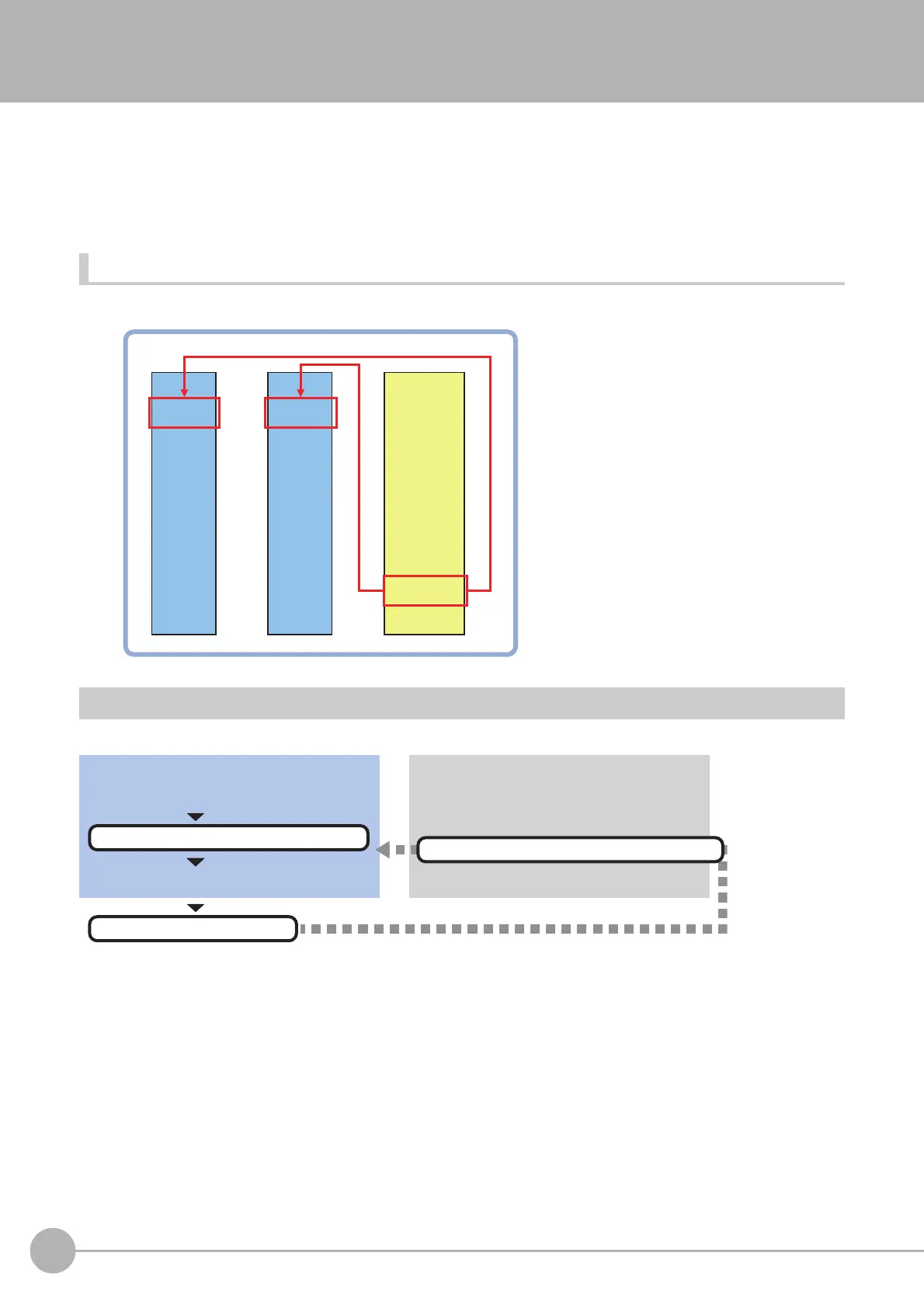

Settings Flow (Calibration Data Reference)
Calibration reference can be set up as follows.
…
Calibration
Data Reference
Calibration
Data Reference
Alignment measurement scene 0 Alignment measurement scene N Calibration scene
Vision Master
Calibration
Make sure to set Set as necessary.
Check results/make adjustments
▲
Calibration (Calibration Data Reference)
Start
Settings complete
Test measurement
▲
Distortion Compensation (Calibration Data Reference)
