PLC Master CalibrationFH/FZ5 Processing Item Function Reference Manual
771
4
Support Inspection and Measurement

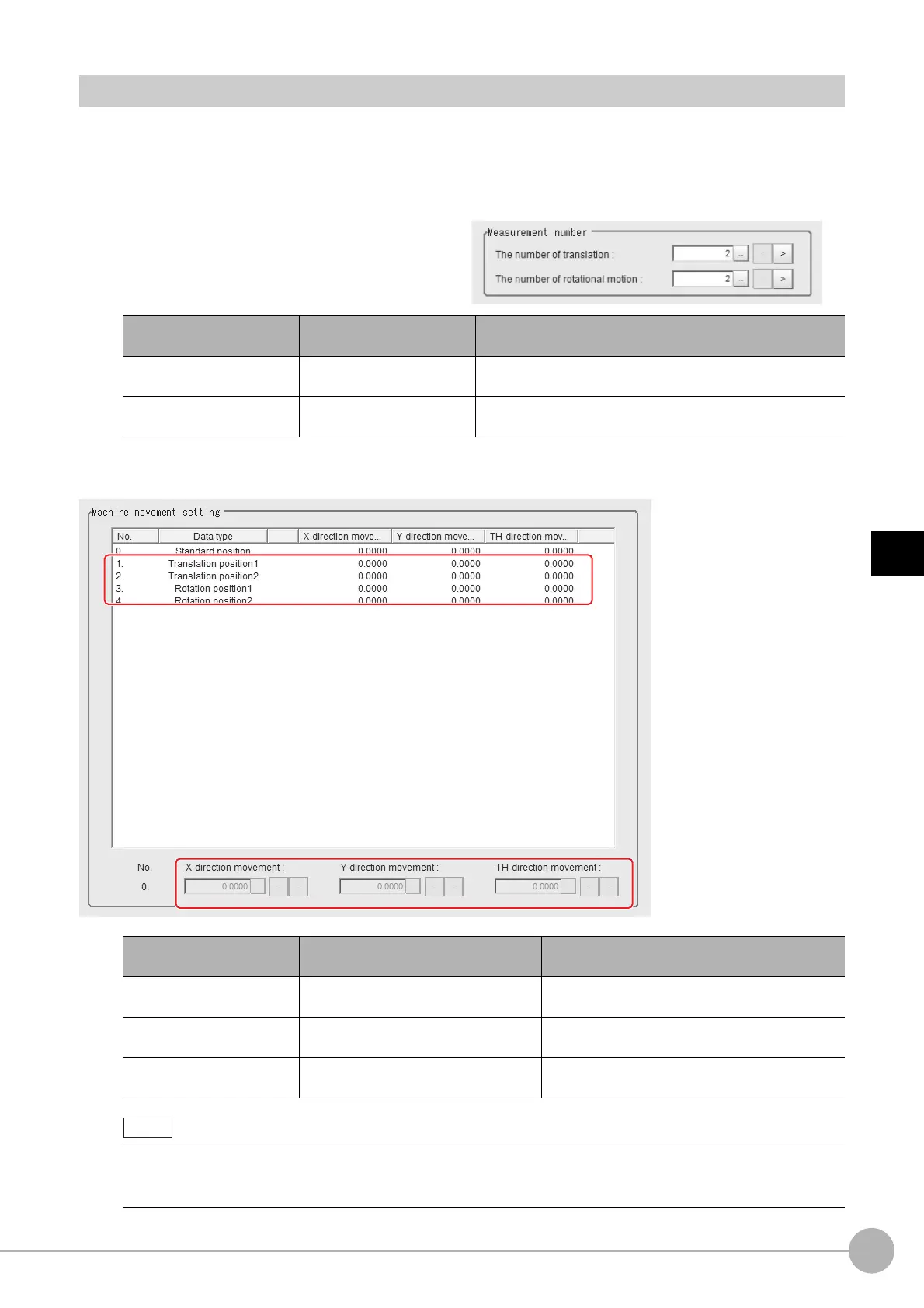

Sampling Setting (PLC Master Calibration)
This item sets data related to sampling.
Set the number of samplings and the actual coordinate positions for each sampling.
Displayed contents may change depending on selected type of Robot or Stage.
1 In the Item Tab area, click [Sampling setting].
2 Set each item in the Measurement
number area.
3 Set the value for parallel or rotational movement in the Machine movement setting area.
Select the item you want to set in the list and set the movement amount from the reference position.
Setting item
Setting value
[Factory default]
Description
The number of translation
2 to 100
[2]
Set the number of samplings performed by moving the
calib
rati
on work in parallel.
The number of rotation
motion
2 to 100
[2]
Set the number of samplings performed by rotating the
calib
rati
on work.
Setting item
Setting value
[Factory default]
Description
X-direction movement
-99999.9999 to 99999.9999
[0.0000]
Set the X axis movement amount from the
re
fere
nce position.
Y-direction movement
-99999.9999 to 99999.9999
[0.0000]
Set the Y axis movement amount from the
re
fere
nce position.
TH-direction movement
-180.0000 to 180.0000
[0.0000]
Set the θ a
xis movement amount from the
re
ference position.
• When the selected stage is the X stage, Y stage, Xθ st
age
, Yθ stage, θX stage, or θY stage, non-existing axis will
be greyed out and cannot be changed.
Non-existing axial direction is not displayed.
To Next Page
