LabelingFH/FZ5 Processing Item Function Reference Manual
339
2
Inspecting and Measuring

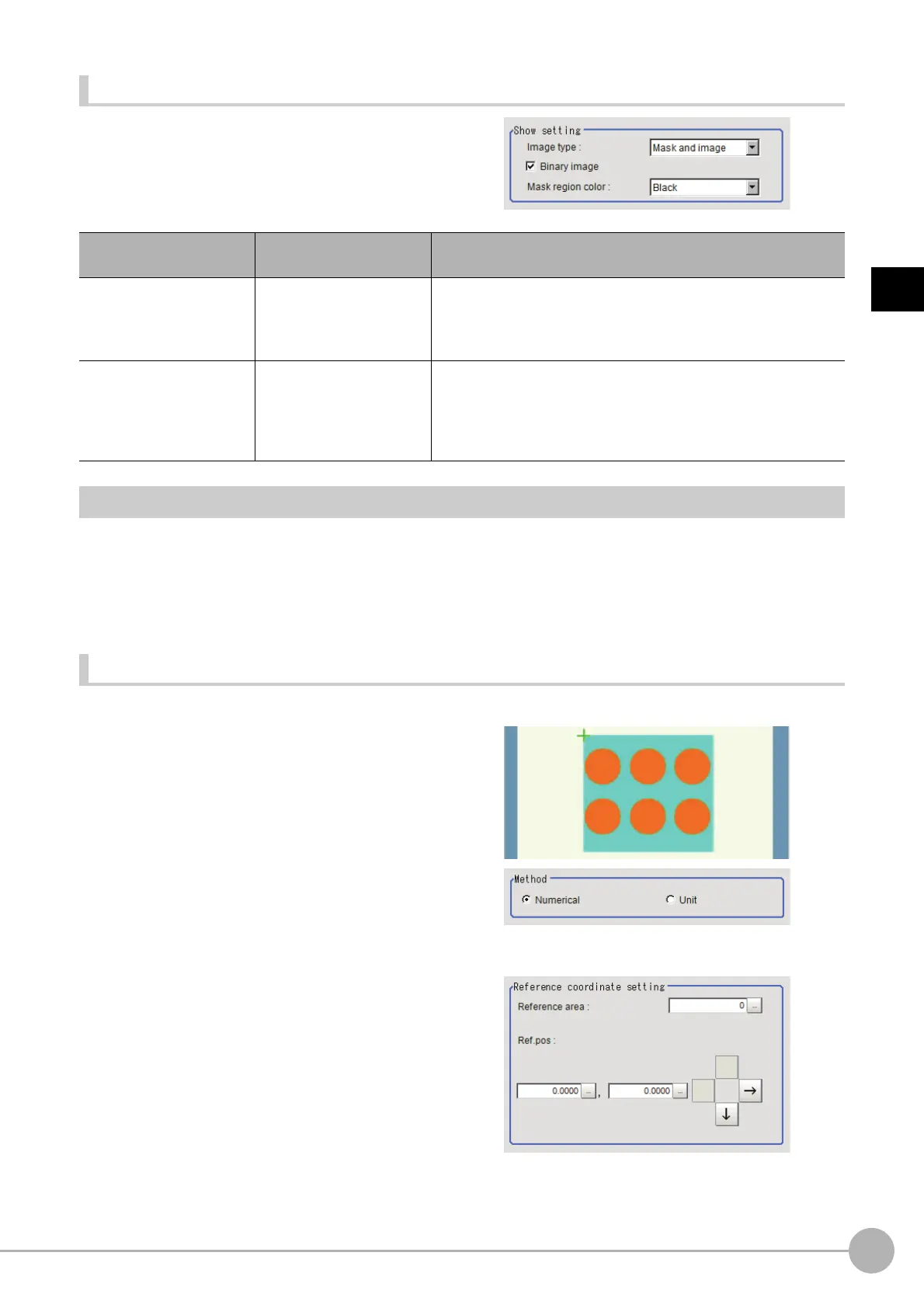

Setting display
Perform the display setting if required.
Reference Setting (Labeling)
This item can be changed if necessary. When the region is set, the reference position is automatically set at the
center of gravity of the measurement region. In the same way for the reference area, when the region settings
are made, they are set automatically based on the measurement region.
This item can be used to change the refere
n
ce position to any desired position.
A reference position can be set either directly or by referencing a unit.
Specifying directly
Click a position on the image you want to use as a reference position, or set coordinate data for that point.
1 In the Item Tab area, click [Ref. setting].
In the display area, the current reference
position will be displayed as the crosshair
cursor.
2 In the "Method" area, select "Numerical".
3 Click the position to be set as the
reference.
4 Make fine adjustments using numeric
value inputs or the arrow buttons as
required.
Setting item
Setting value
[Factory default]
Description
Image type
• Measure image
• Mask binary image
• [Mask and image]
Select the type of an image to be displayed.
Measure image: Measured image
Mask binary image: Binarized image for masking
Mask and image: Post-masking image
Mask region color
• [Black]
•White
•Red
• Green
•Blue
Select the display color of the mask region.
A part of color which is specified in
[Ma
sk region color] is not
measured.
To Next Page
