Camera Image Input HDR LiteFH/FZ5 Processing Item Function Reference Manual
81
1
Input image

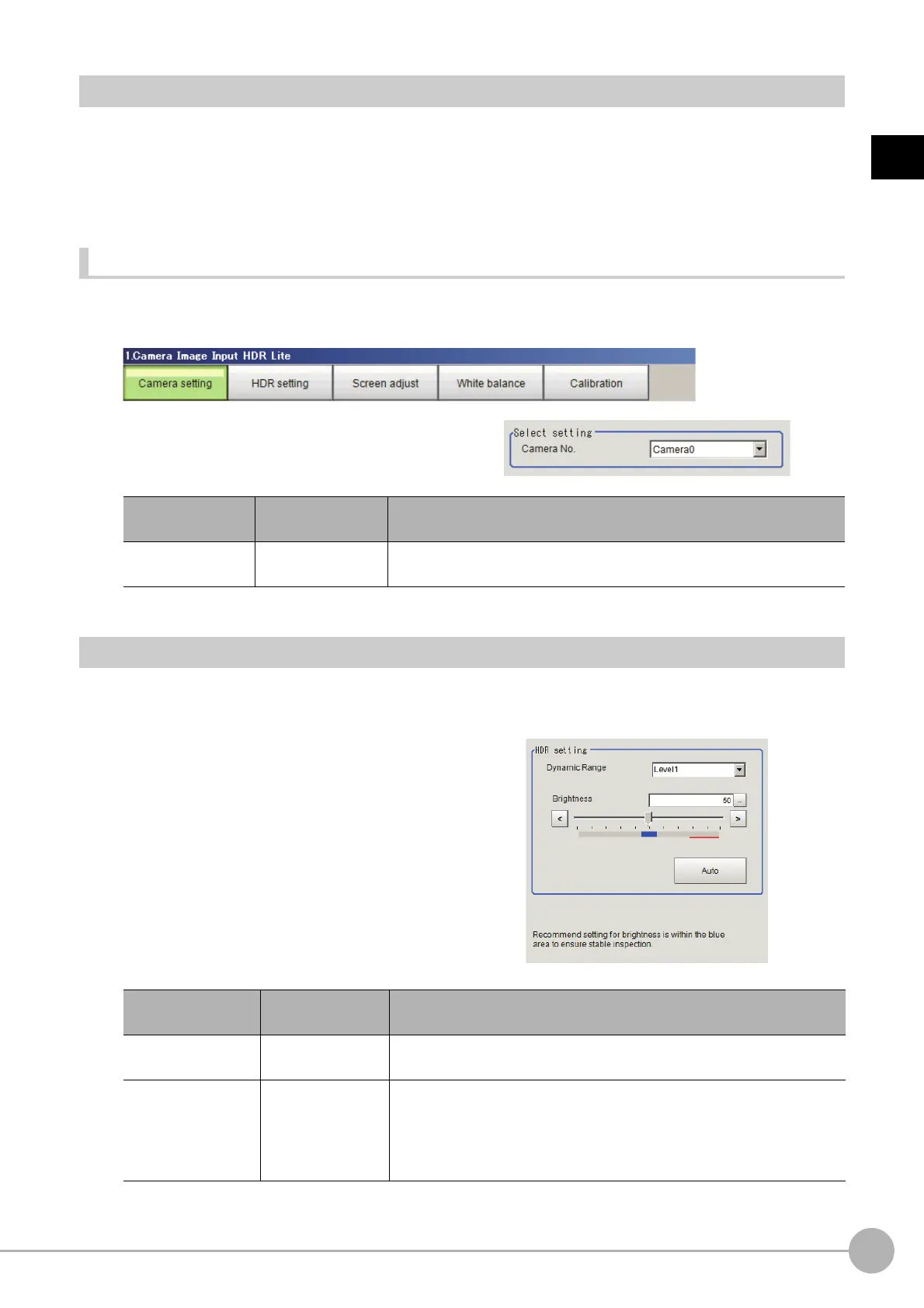

Camera Settings (Camera Image Input HDR Lite)
Set the following photographing conditions.
• Reference: Selection Setting (p.81)
• Reference: Number of lines to be read (p.29)
• Reference: Electronic Flash Setting (p.75)
Selection Setting
When multiple cameras are connected, select the camera to use for measurement.
1 In the Item Tab area, click [Camera setting].
2 Click [Camera No.] [ ] and select the
camera number.
HDR settings (Camera Image Input HDR Lite)
Specify the dynamic range and brightness settings.
1 In the Item Tab area, click [HDR Setting].
2 When automatic is clicked, the dynamic
range and the brightness will be
automatically set.
If automatic does not produce the desired
result, manually adjust the dynamic range and
brightness in the HDR settings.
Setting item
Setting value
[Factory default]
Description
Camera No.
Cam 0 to 7
[Cam 0]
Select the camera number.
Item
Set value
[Factory default]
Description
Dynamic Range [Level1] to Level4
Specify a dynamic range. The larger the value is, the broader the
dy
namic range to be combined will be.
Brightness 1 to 100
Specify the brightness settings. The larger the value is in this setting, the
l
ong
er the exposure time will be. When using a high-speed line, check to
make sure that there is no image blur in an actual environment. The
degree of image blur can be lowered by decreasing the brightness even
when the movement speed of the object is fast.
To Next Page
