Intersection
294
FH/FZ5 Processing Item Function Reference Manual
6 The region is divided equally.
7 Repeat steps 2 to 6, and set the region of line 1.
Edge Color Specification - For Color Cameras Only (Intersection)
This item sets the color of the edges to be detected.
If the target color changes, this setting is not necessary. If the
color is not set, positions in the measurement
region where the color changes drastically are detected as an edge.
1 In the Item Tab area, click [Edge color].
2 Select the figure to be color specified.
Uncheck "Share setting" if you want to
use different settings for line 0 and line 1.
3 Place a check at [Edge color
specification] in the "Color setting" area.

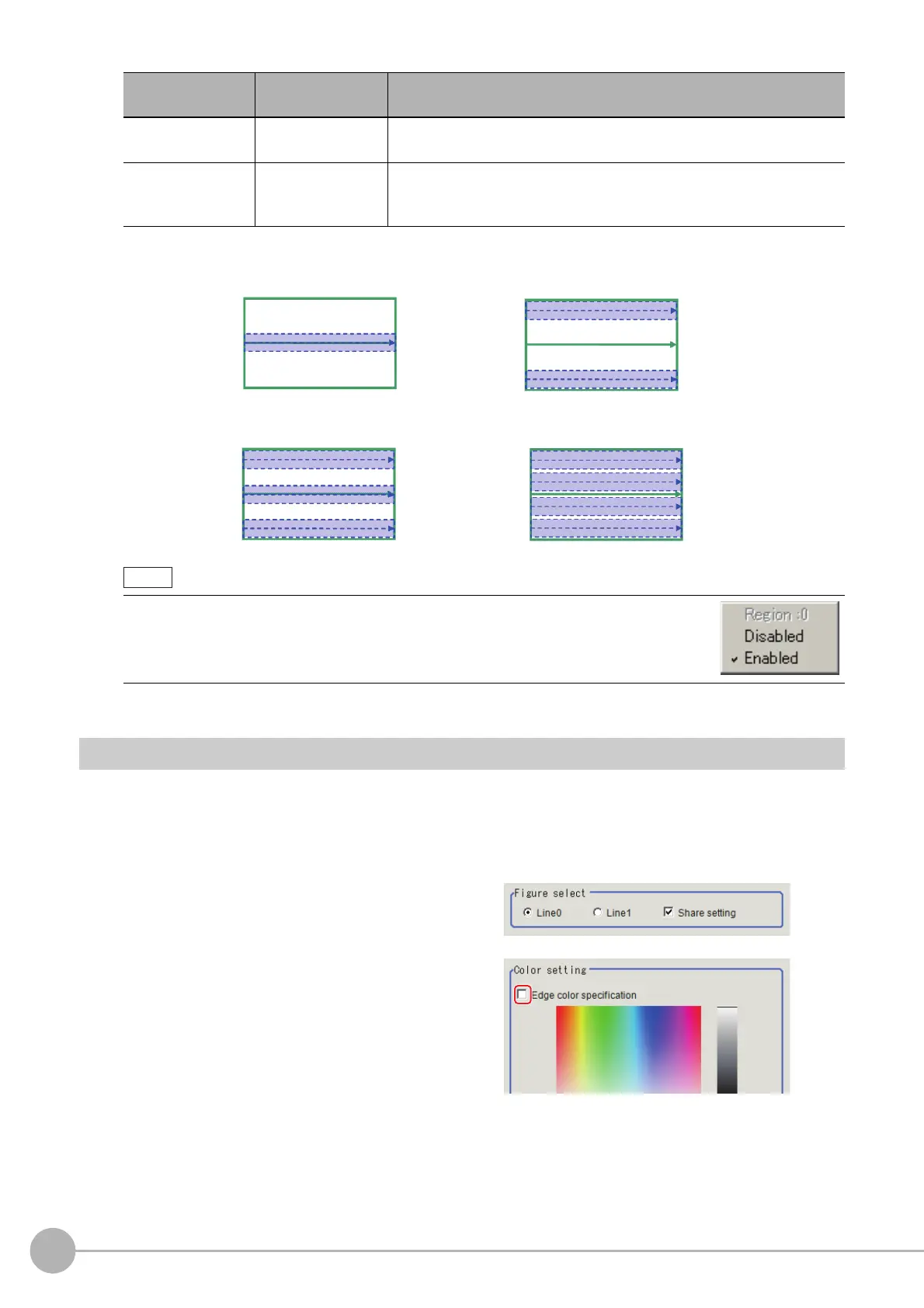

Setting item
Setting value
[Factory default]
Description
Scan sub-region
1 to 100
[5]
Set the measurement point for the region.
Mask size (Filter
size)
1 to 1000
[5]
Set the filter size when smoothing the measurement point vicinity. When 5
i
s
set, smoothing is processed for a total of 11 points: the measurement
point and the 5 pixels before and after it.
• Enable or disable setting can be specified fo
r each edge measurement number. Clicking
edge measurement points displays the following screen.
Scan region when scan sub-region is 1 Scan region when scan sub-region is 2
Scan region when scan sub-region is 3 Scan region when scan sub-region is 4
To Next Page
