Ec Corner
196
FH/FZ5 Processing Item Function Reference Manual

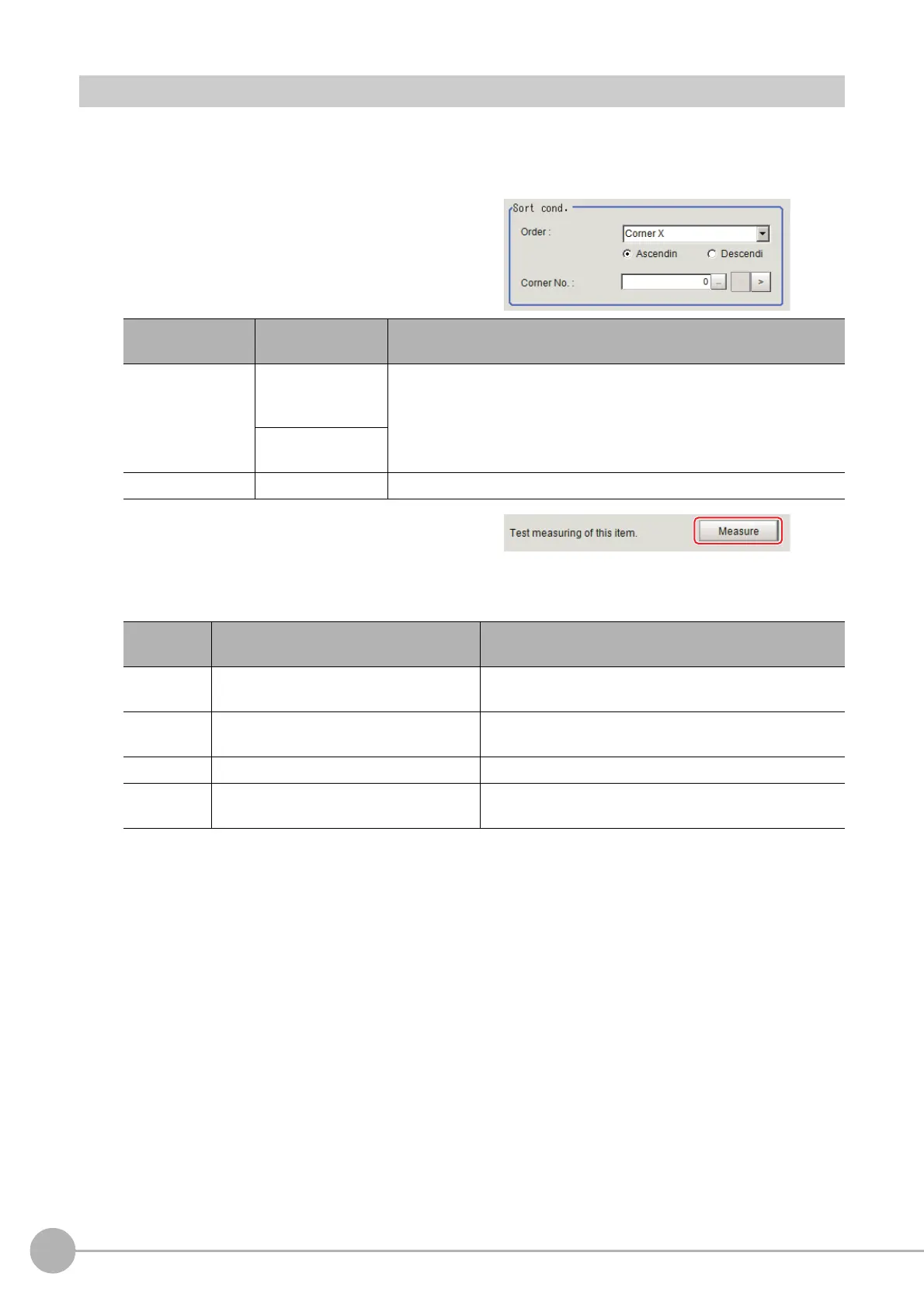

Measurement Parameters (Ec Corner)
Set the sort conditions/judgement conditions of corners.
Data of the specified number is output as measurement data.
1 In the Item Tab area, click [Measurement].
2 In the "Sort cond." area, set the sorting
conditions.
3 When the setting has been changed,
click [Measure] to verify whether
measurements can be made correctly.
4 Set up the judgement condition.
Setting item
Setting value
[Factory default]
Description
Order
•[Corner X]
Corner Y
Length
Select the sorting method for the measurement results.
[Ascending]
Descending
Corner No. [0] to 99 Set the corner number for the data to be output.
Setting item
Setting value
[Factory default]
Description
Corner X [-99999.9999] to [99999.9999]
Set the range of X coordinates of corner that is judged to
be OK.
Corner Y [-99999.9999] to [99999.9999]
Set the range of Y coordinates of corner that is judged to
be OK.
Angle [0.0000] to [360.0000] Specify the formed angles that are judged to be OK.
Count [1] to [100]
Specify the number of detections of
co
rner that is judged
to be OK.
