LabelingFH/FZ5 Processing Item Function Reference Manual
335
2
Inspecting and Measuring
Binarization (Labeling)
When a monochrome camera is connected, the 256-tone grayscale images taken in from the camera are
converted into binary black-and-white images before the images are measured. Converted white pixels are
measured.
This specifies the level for converting
g
rayscale images into binary images.

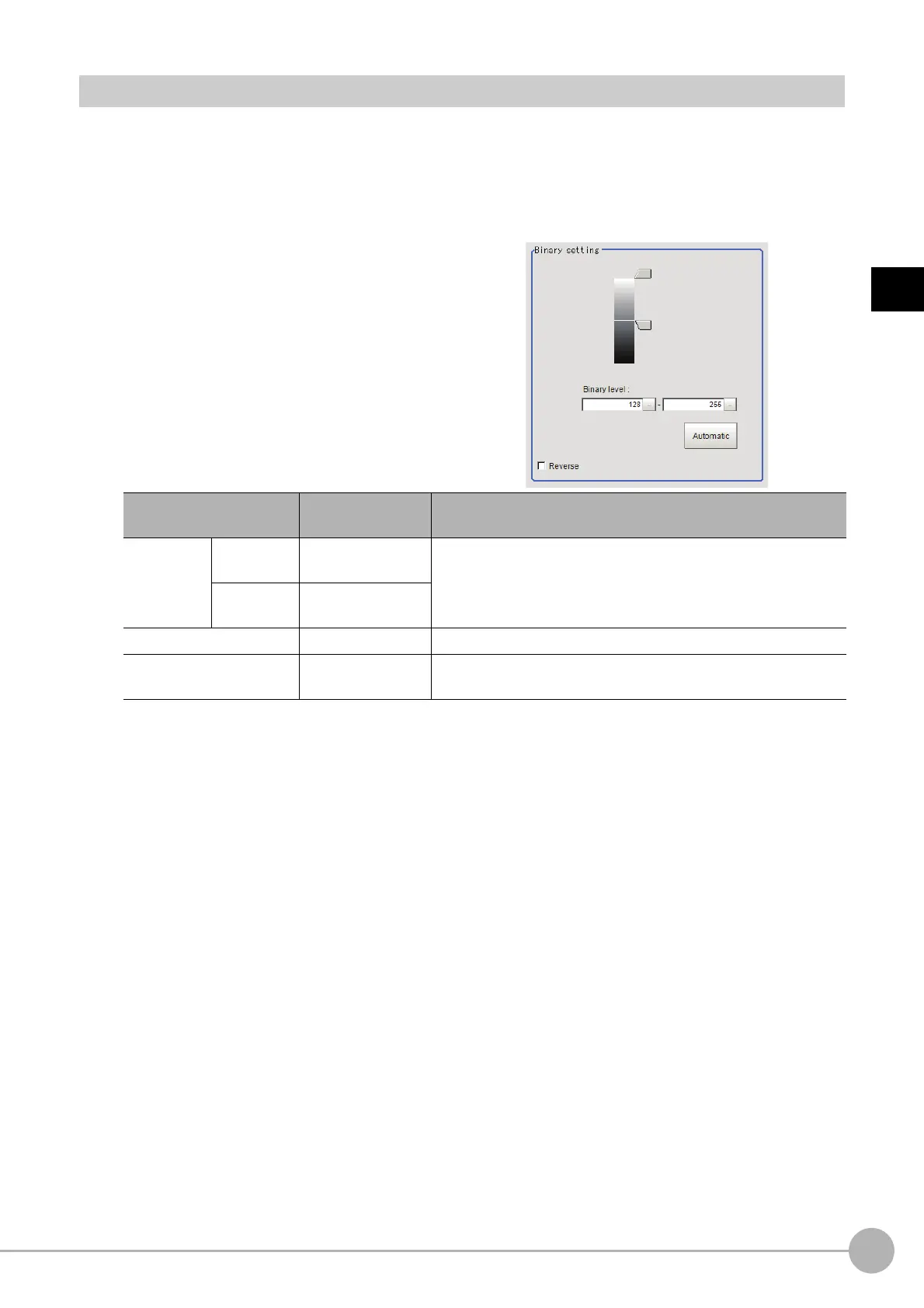

1 In the Item Tab area, click [Binary].
2 In the "Binary setting" area, specify the
reference density range.
Item
Set value
[Factory default]
Description
Binary level
Upper limit
value
0 to 255
[255]
Specify the level for converting 256-tone grayscale images to
binary image
s. Adjust the binary level so that the measurement
object is converted to white pixels. You can also set the binary
level so that only intermediate density is measured.
Lower limit
value
0 to 255
[128]
Automatic - Optimum binary levels are calculated automatically and set.
Reverse
• [Checked]
• Unchecked
This item reverses black and white colors.
