Sensitive Search
124
FH/FZ5 Processing Item Function Reference Manual

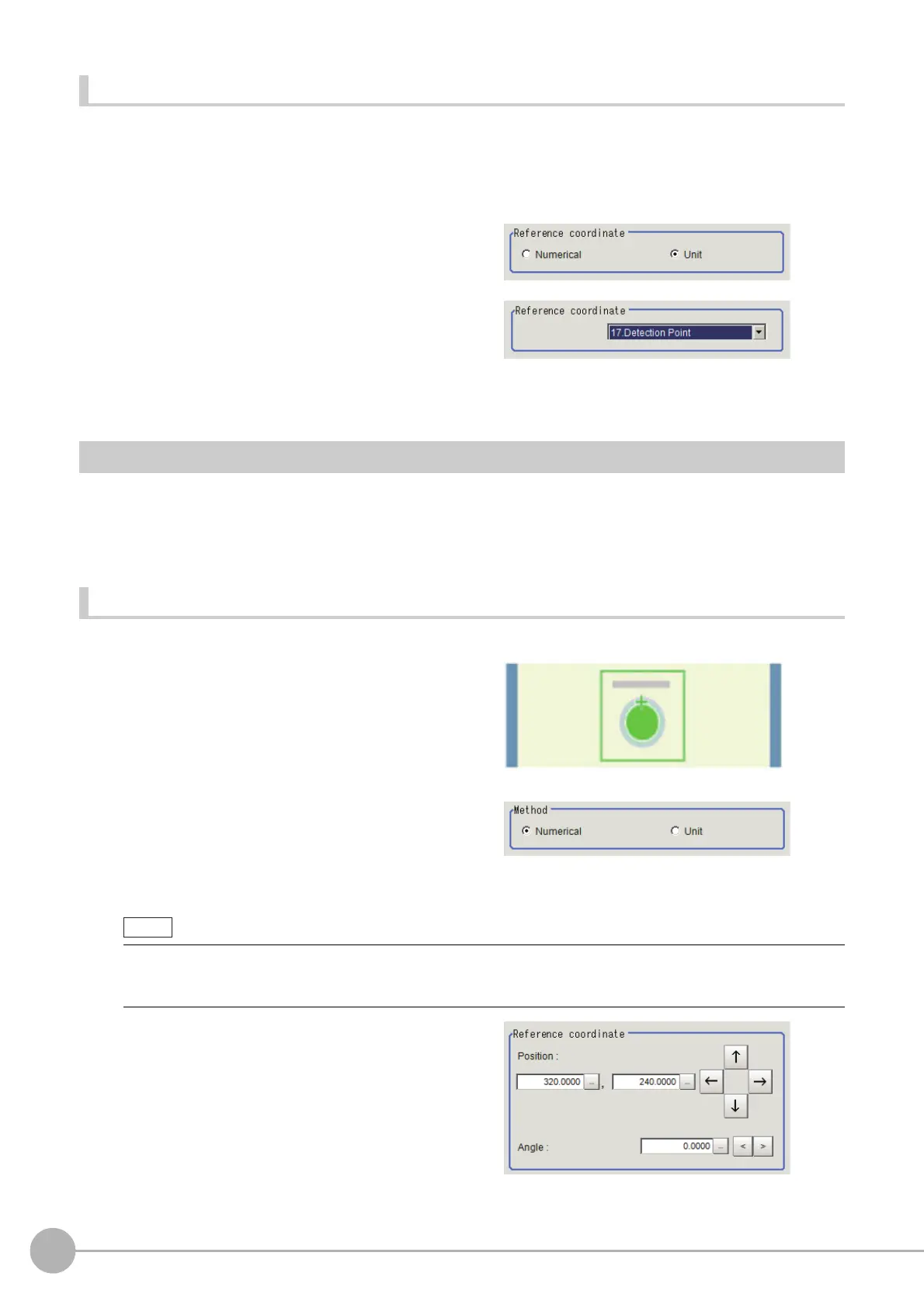

Referencing a unit
Set a detection point by referencing a detection point unit with registered X coordinate, Y coordinate and angle
data.
1 In the Item Tab area, click [Detection point].
In the Display area, the current detection point is displayed with a crosshair cursor.
2 In the "Method" area, select "Unit".
3 In the scene in the "Reference
coordinate" area, select a detection
point unit.
4 Perform the next measurement, and the detection point will be displayed.
Reference Setting (Sensitive Search)
When the model is set, this position is automatically set at the same time as the reference position. This item can
be used to change the reference position to any desired position. This is handy for measuring the position
deviation from a certain position.
A reference position can be set either directly or by referencing a unit.
Specifying directly
Click a position on the image you want to use as a reference position, or set coordinate data for that point.
1 In the Item Tab area, click [Ref. setting].
In the display area, the current reference
position will be displayed as the crosshair
cursor.
2 In the "Method" area, select "Numerical".
3 Click the position to be set as the
reference.
4 Make fine adjustments using numeric
value inputs or the arrow buttons as
required.
• Displaying the image enlarged makes this clicking easier.
Reference: "Appendixes Basic Knowledge about Operations Using th
e Zoom Function" in the "Vision System
FH/FZ5 Series User's Manual (Z365)"
