Camera CalibrationFH/FZ5 Processing Item Function Reference Manual
815
4
Support Inspection and Measurement
Specify point (Camera Calibration)
Specify a given pixel to make the calibration setting. Calibration parameters can be calculated by setting the
actual coordinates of specified locations. Up to 100 points can be set.

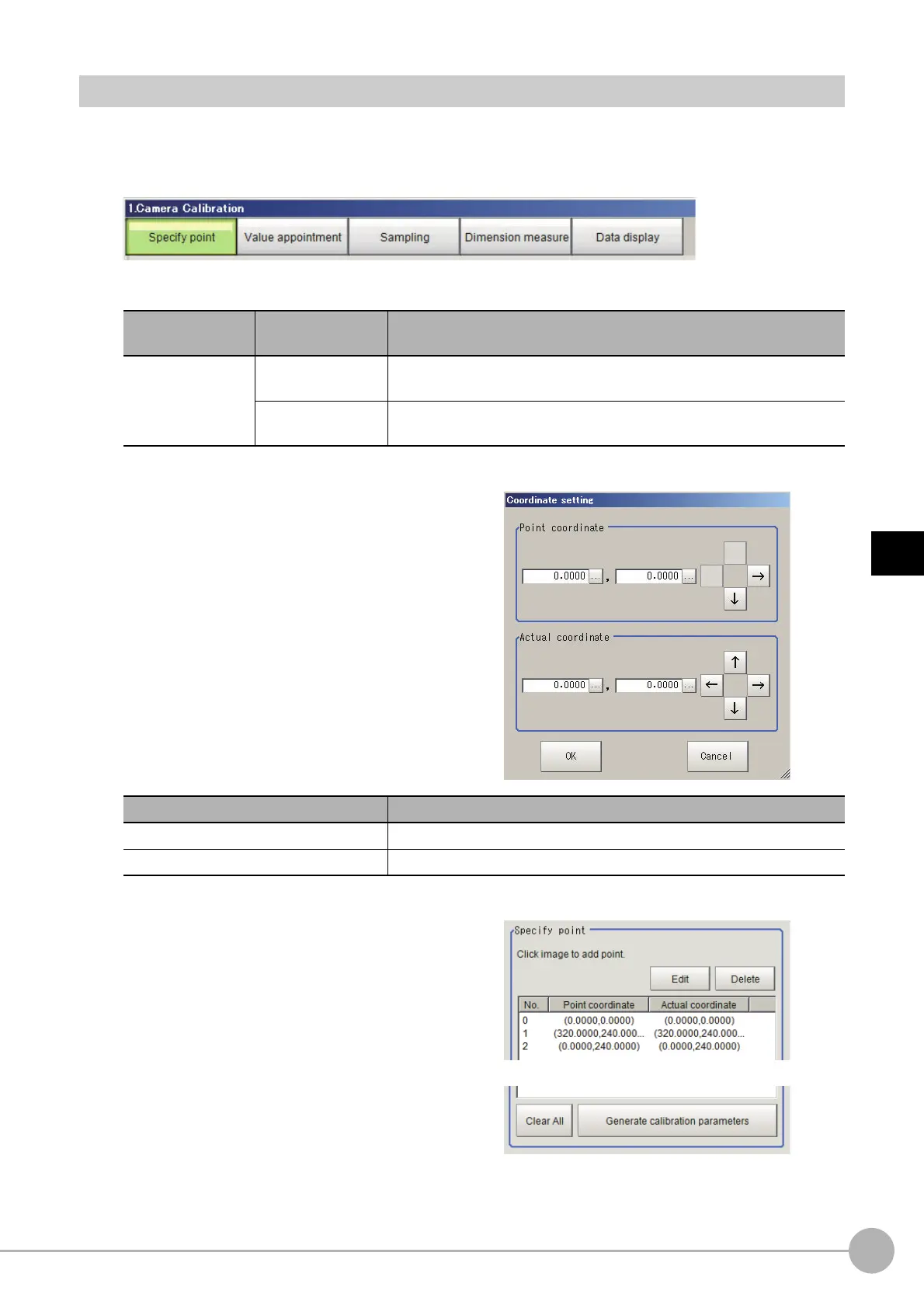

1 In the Item Tab area, click [Specify point].
2 In the [Display] area, click [Change display] to select the camera image type.
3 Click the first point on the screen.
4 Set the actual coordinates for the
specified point.
The actual coordinate input window is
displayed.
5 Set the 2nd, 3rd and subsequent points in the same way.
6 Edit or delete the coordinates as
required.
Select the points to be edited or deleted from
the list.
Click [Edit] or [Delete].
To delete all points, click [Clear All].
7 Click [Generate calibration parameters].
The calibration parameters will be generated.
Setting item
Setting value
[Factory default]
Description
Display
Through image
display
The latest image is always input from the camera and displayed.
[Freeze image
display]
The image that was scanned in the immediately preceding measurement
is displ
a
yed.
Actual coordinate Setting value [Factory default]
Point coordinate X, Y 0 to 9999.9999 [Point you clicked in the window]
Actual coordinate X, Y -99999.9999 to 99999.9999 [0]
