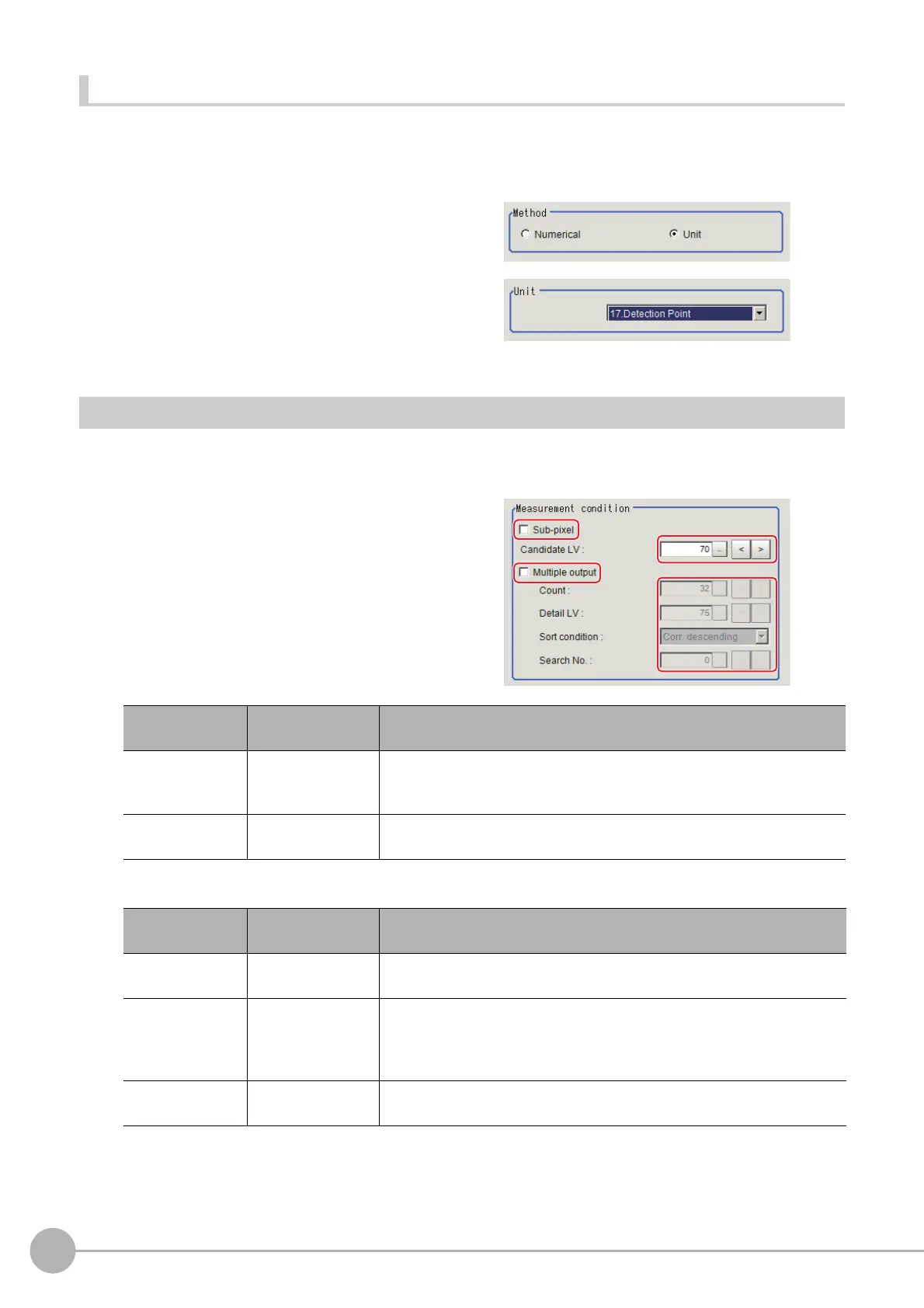

FH/FZ5 Processing Item Function Reference Manual
Referencing a unit
Set a reference by referencing a detection point unit with registered X coordinate, Y coordinate and angle data.
1 In the Item Tab area, click [Ref. setting].
In the display area, the current reference position will be displayed as the crosshair cursor.
2 In the "Method" area, select "Unit".
3 In the scene in the "Unit" area, select a
detection point unit.
4 Perform the next measurement, and the reference will be displayed.
Measurement Parameters (Search)
Specify the search measurement conditions and the judgement conditions for the measurement results.
1 In the Item Tab area, click [Measurement].
2 In the "Measurement condition" area,
specify a value for each item.
When executing a multi search
Setting item
Set value
[Factory default]
Description
Sub-pixel
• Checked
• [Unchecked]
When a check is placed at sub-pixel,
the
position information can be
measured in units of sub-pixels. However, this requires more processing
time.
Candidate LV
0 to 100
[70]
Specify the threshold value with which to d
e
tect candidate points in a rough
search. Specify a smaller value when model search results are unreliable.
Setting item
Set value
[Factory default]
Description
Multiple output
• Checked
• [Unchecked]
Select to execute a multi searches.
Count
1 to 128
[32]
This executing item is available
when Multi search is executed.
Specify the maximum number of detections.
If it detects more objects than the specified
value, these matches are
sorted out to output up to the specified value from the top.
Detail LV
0 to 100
[75]
Specify the threshold value with which to detect candidate points in a detail
search.
