Shape Search III
178
FH/FZ5 Processing Item Function Reference Manual

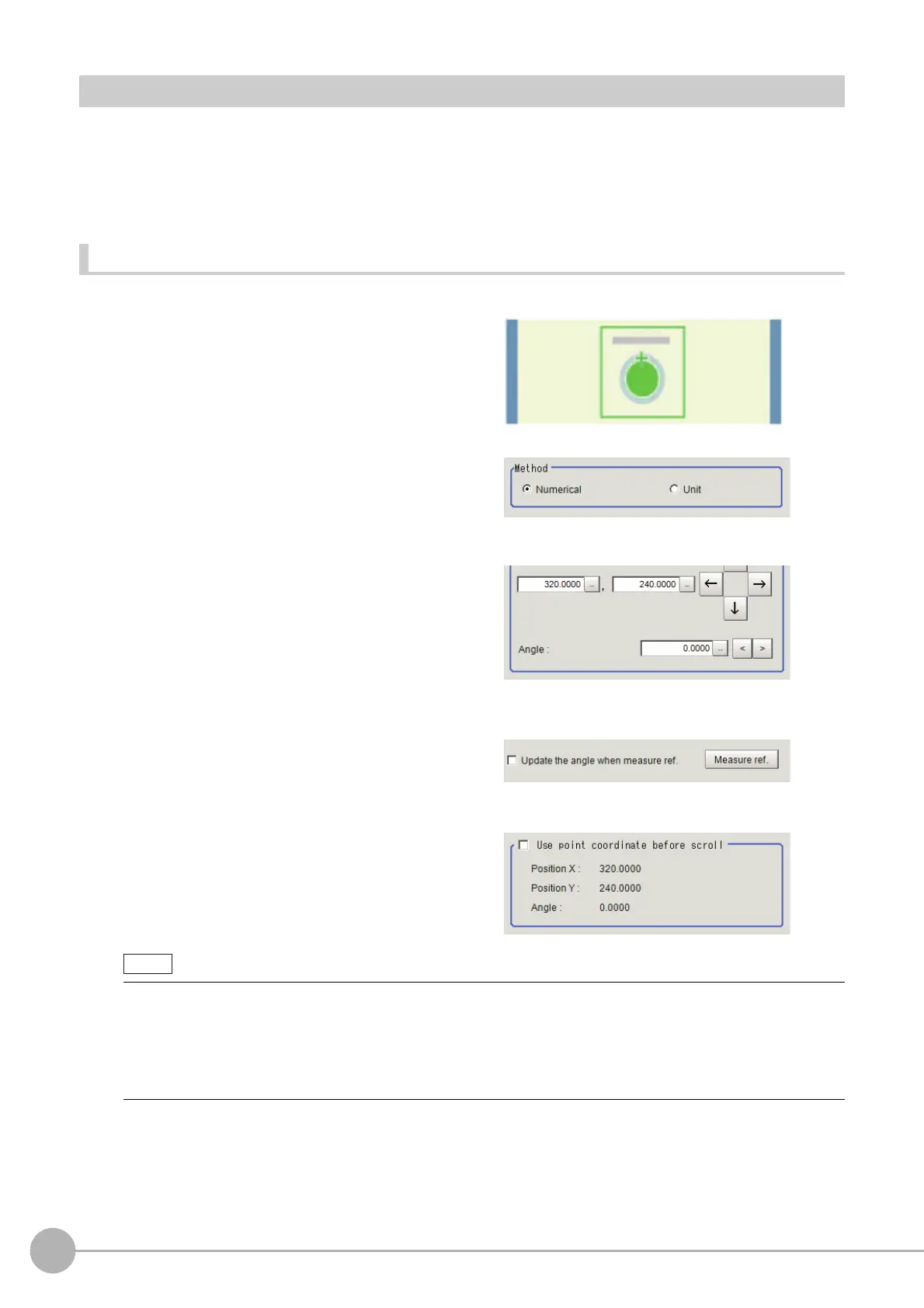

Reference Setting (Shape Search III)
You can change the reference coordinates on the Ref. setting tab page. Set the reference point and angle within
the camera FOV as the reference coordinate. When you register a model, the center point of the registered
model is automatically set as the reference point. This reference point is used to measure deviation from a
certain point.
A reference position can be set either directly or by referencing a unit.
Set the reference point by directly entering numerical values (Numerical)
Click a position on the image you want to use as a reference position, or input coordinate data for that point.
1 Click the Ref. setting tab.
2 In the [Method] area, select [Numerical].
3 Click the position to be set as the
reference.
4 Make fine adjustments using numeric
value inputs or the arrow buttons as
required.
5 Set the reference angle using numeric value inputs in the [Reference coordinate] area.
6 To use the reference coordinate as the
coordinate before the position
compensation, select the [Use point
coordinate before scroll] check box.
• You can enlarge the image so that it is easier to click.
Reference: Appendixes Basic Knowledge about Operatio
ns Using the Zoom Function in the Vision System FH/
FZ5 Series User's Manual (Cat. No. Z365)
• When using the Position Compensation processing item, the coord
i
nates after position compensation will be the
reference point. When the coordinates before the position compensation are needed for alignment, etc., select
the [Use point coordinate before scroll] check box.
To Next Page
