Image LoggingFH/FZ5 Processing Item Function Reference Manual
675
4
Support Inspection and Measurement

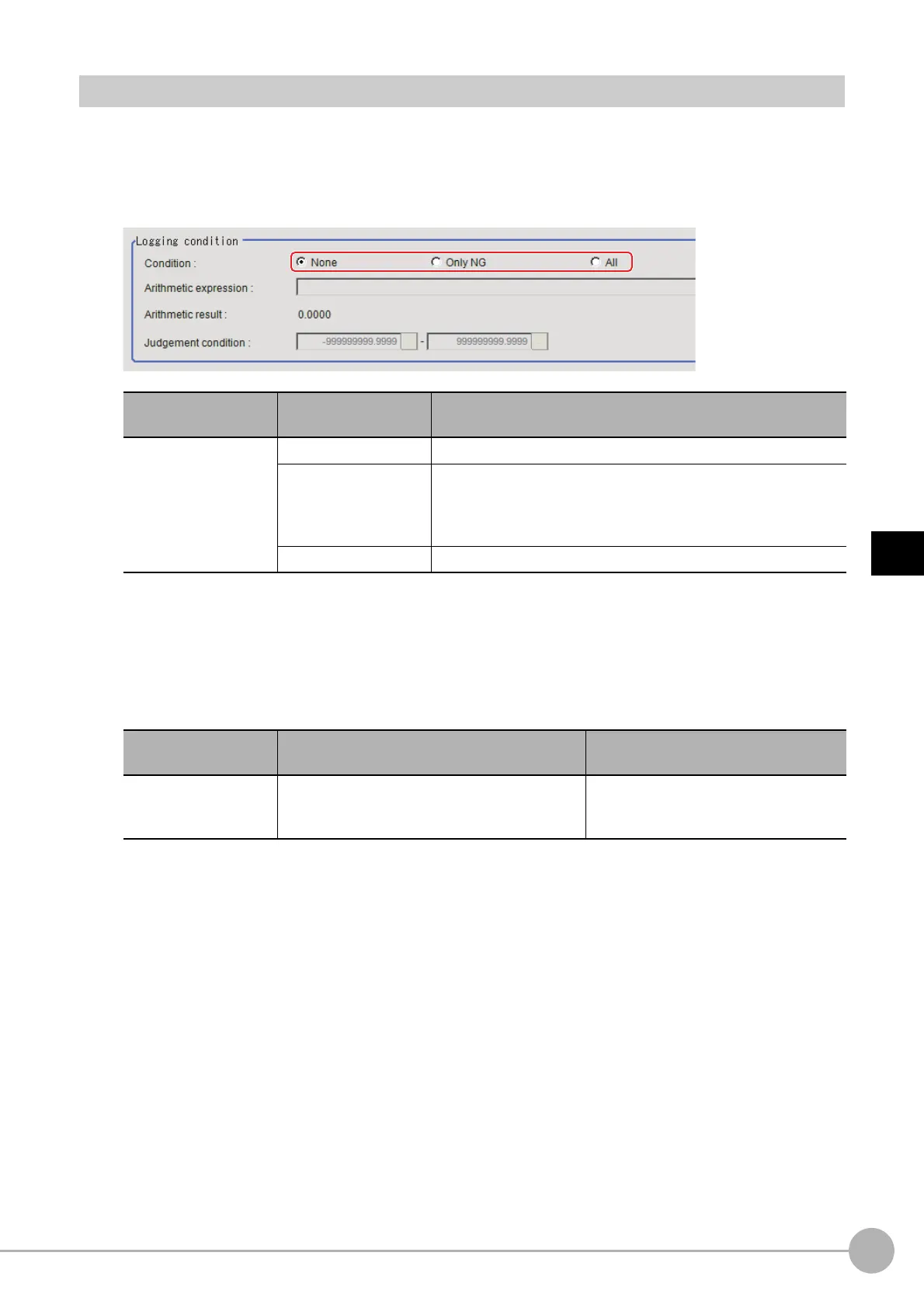

Logging Conditions (Image Logging)
Indicate the image to perform logging for. If 4 cameras are connected, image logging is performed for 4 cameras
each time.
1 Click [Logging condition] in the Item Tab area.
2 Set the logging conditions.
3 When "Only NG" is selected, click [...] to set up the expression.
The Setting Expression window is displayed.
4 After setting up the expression, click [OK].
The expression is confirmed.
5 Set up the judgement upper limit and the judgement lower limit for "Judgement condition".
Setting item
Set value
[Factory default]
Description
Condition
•[None] No images are saved.
•Only NG
Saves images only if an NG occurs. If an NG occurs downstream
from the i
mage logging processing unit, image logging is not
performed. Insert image logging as close to the end of the scene
as possible
•All All measured images are saved.
Setting item
Set value
[Factory default]
Description
Judgement condition -999999999.9999 to 999999999.9999
This is a judgement condition for the
expression
. Set upper and lower limits for
judging as OK.
To Next Page
