IntersectionFH/FZ5 Processing Item Function Reference Manual
293
2
Inspecting and Measuring
List of Intersection Items

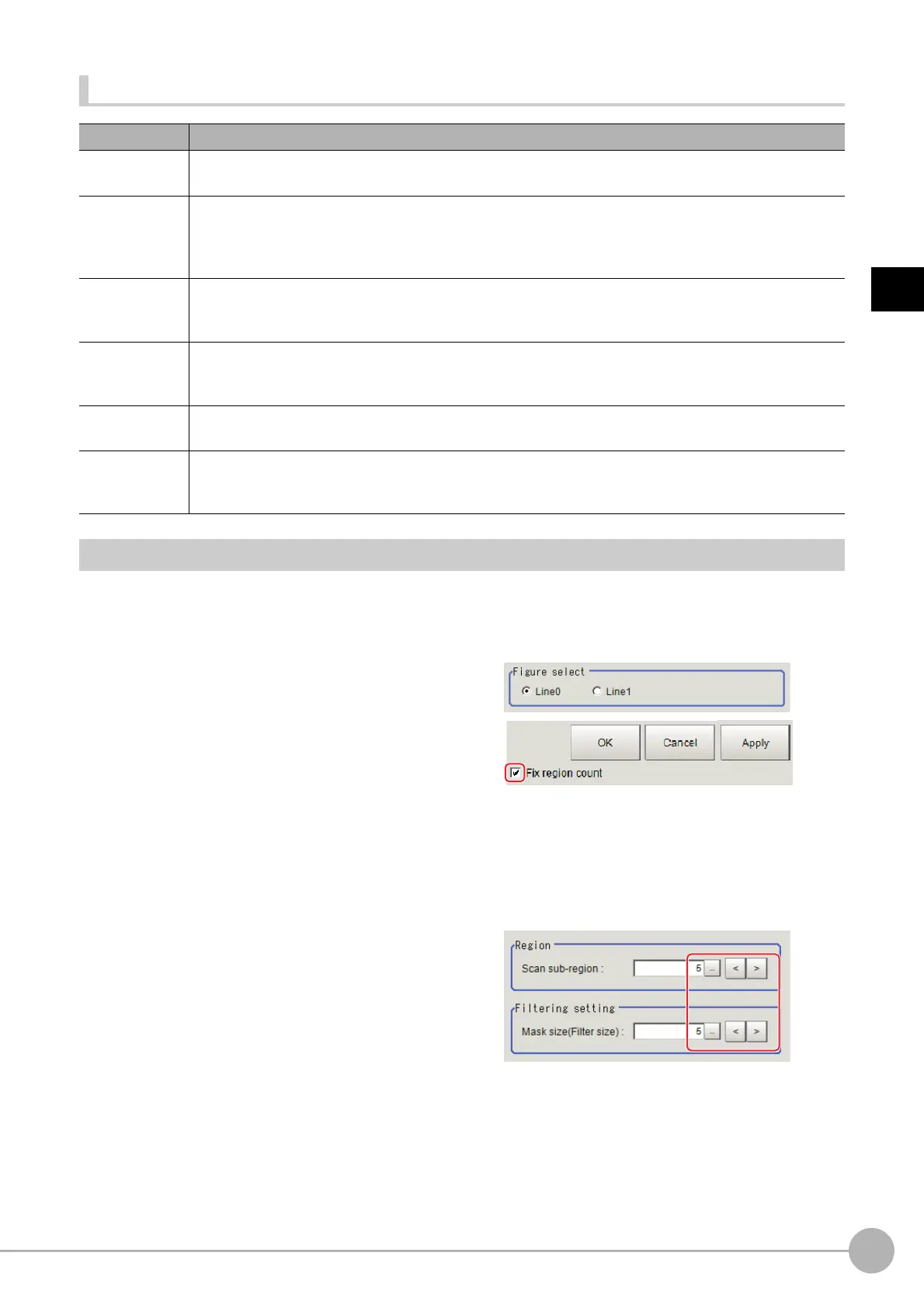

Region Setting (Intersection)
This item is used to set up the measurement area.
Specify the measurement region for [Intersection Coor
dinates] by using wide lines.
1 In the Item Tab area, click [Region setting].
2 Select the figure to be set.
3 Use the Drawing tools to set the
measurement region.
To align with the measurement area and
change the number of measurement points,
uncheck this.
4 Click [OK] in the Figure setting area.
• [OK]: Changes the settings and returns to the previous menu.
• [Cancel]: Changes are discarded. R
eturns to the previous menu.
• [Apply]: Updates the settings without leaving edit window.
5 Set the measurement point and the filter
size for the region.
Item name Description
Region setting
This item sets the scan edge area (wide line) for each
the two sides to be measured.
Reference: Region Setting (Intersection) (p.293)
Edge color
This item sets the color of the edges to be detected.
If the target color changes, this setting is not necessary. If the color is not set, positio
ns in the
measurement region where the color changes drastically are detected as an edge.
Reference: Edge Color Specification - For Color Cameras On
ly
(Intersection) (p.294)
Ref. setting
The edge position is registered as the reference when the region is set. Change as necessary. This is
changed
when measuring the position deviation from a certain position.
Reference: Reference Setting (Intersection) (p.295)
Measurement
This item sets the parameters relating to edge measurement and Line Regression calculation to measure
the intersection coordinates.
Reference: Measurement Parameters (Intersection) (p.296)
Judgement
This item specifies the judgement con
d
ition for measurement results.
Reference: Judgement Condition (Intersection) (p.299)
Output
p
a
rameter
This item can be changed if necessary.
Select the measurement result coordinates and set how to hand
le the coordi
nates.
Reference: Output Parameters (Int
ersection) (p.300)
