Ec Corner
192
FH/FZ5 Processing Item Function Reference Manual

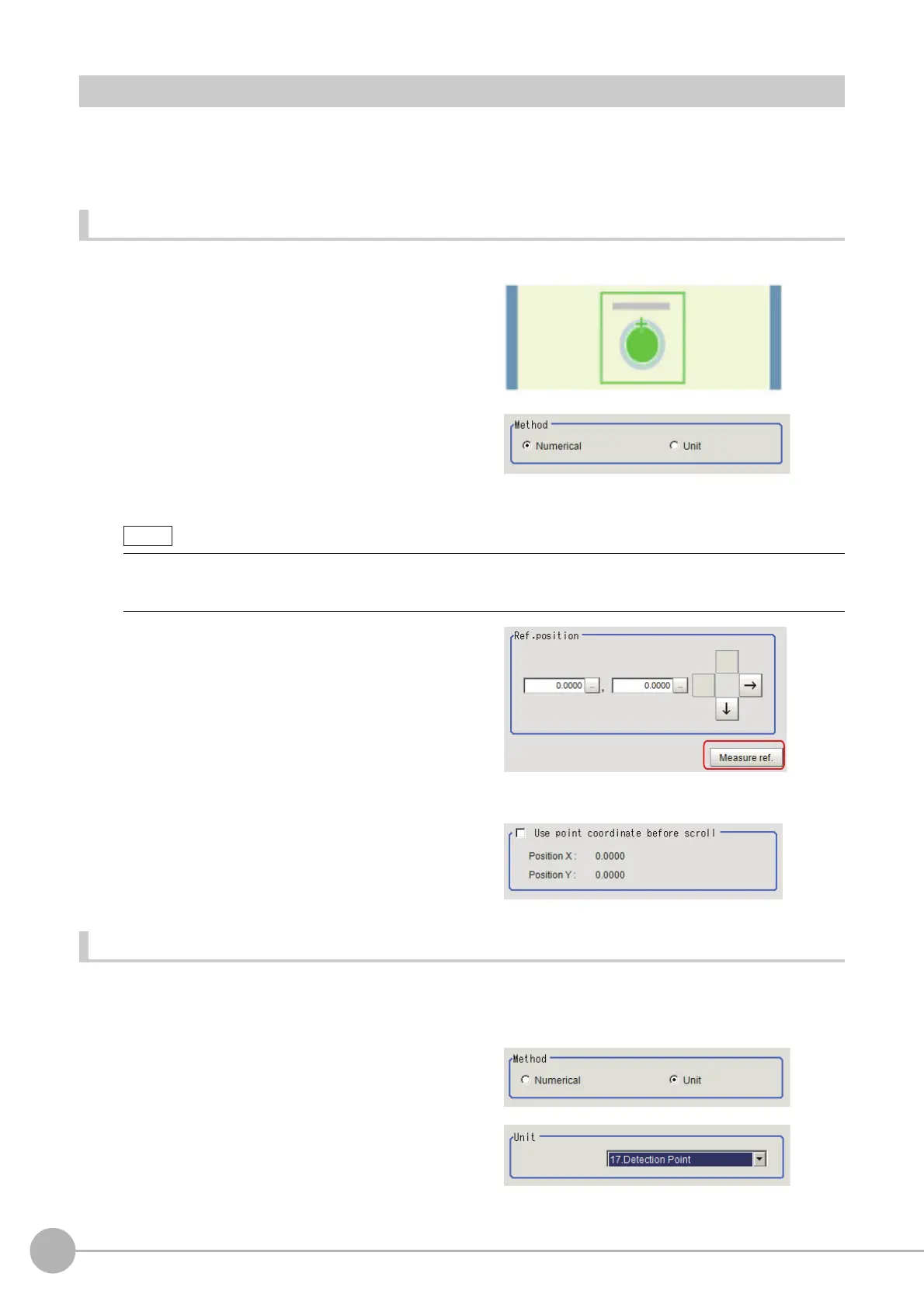

Reference Setting (Ec Corner)
When the model is set, this position is automatically set at the same time as the reference position. This item can
be set to change the reference position to any desired position. This is handy for measuring the position
deviation from a certain position.
A reference position can be set either directly or by referencing a unit.
Specifying directly
Click the position on the image that you want to set as the reference position, or set the coordinates.
1 In the Item Tab area, click [Ref. setting].
In the display area, the current reference
position will be displayed as the crosshair
cursor.
2 In the "Method" area, select "Numerical".
3 Click the position to be set as the
reference.
4 Make fine adjustments using numeric
value inputs or the arrow buttons as
required.
5 To remeasure on the displayed image
and set the reference, click the [Measure ref.] button.
6 To use data before position
compensation for the reference setting
coordinates, place a check at "Use point
coordinate before scroll".
Referencing a unit
Set a reference by referencing a detection point unit with registered X coordinate and Y coordinate.
1 In the Item Tab area, click [Ref. setting].
In the display area, the current reference position will be displayed as the crosshair cursor.
2 In the "Method" area, select "Unit".
3 In the scene in the "Unit" area, select a
detection point unit.
• Displaying the image enlarged makes this clicking easier.
Reference: "Appendixes Basic Knowledge about Operations Using the Zoom Function" in the "Vision System
FH/FZ5 Series User's Manual (Z365)"
To Next Page
