User DataFH/FZ5 Processing Item Function Reference Manual
647
4
Support Inspection and Measurement
User Data
User data is data that can be shared by scenes in the sensor controller. User data values are stored as system
data, and the same user data can be accessed from different scenes. User data processing items can be used to
set and acquire user data. If you want to set default values or comments in user data, use the User Data Tool in
addition to the user data processing items.
For details on the communication commands, refer to Referenc
e:
“Using User Data Tool [How to Set User
Data]” in “Section 4 Using Tools” in the “Vision System FH/FZ5 Series User’s Manual (Cat. No. Z365).”
Used in the Following Case
• When you want to share any set data among multiple processing units

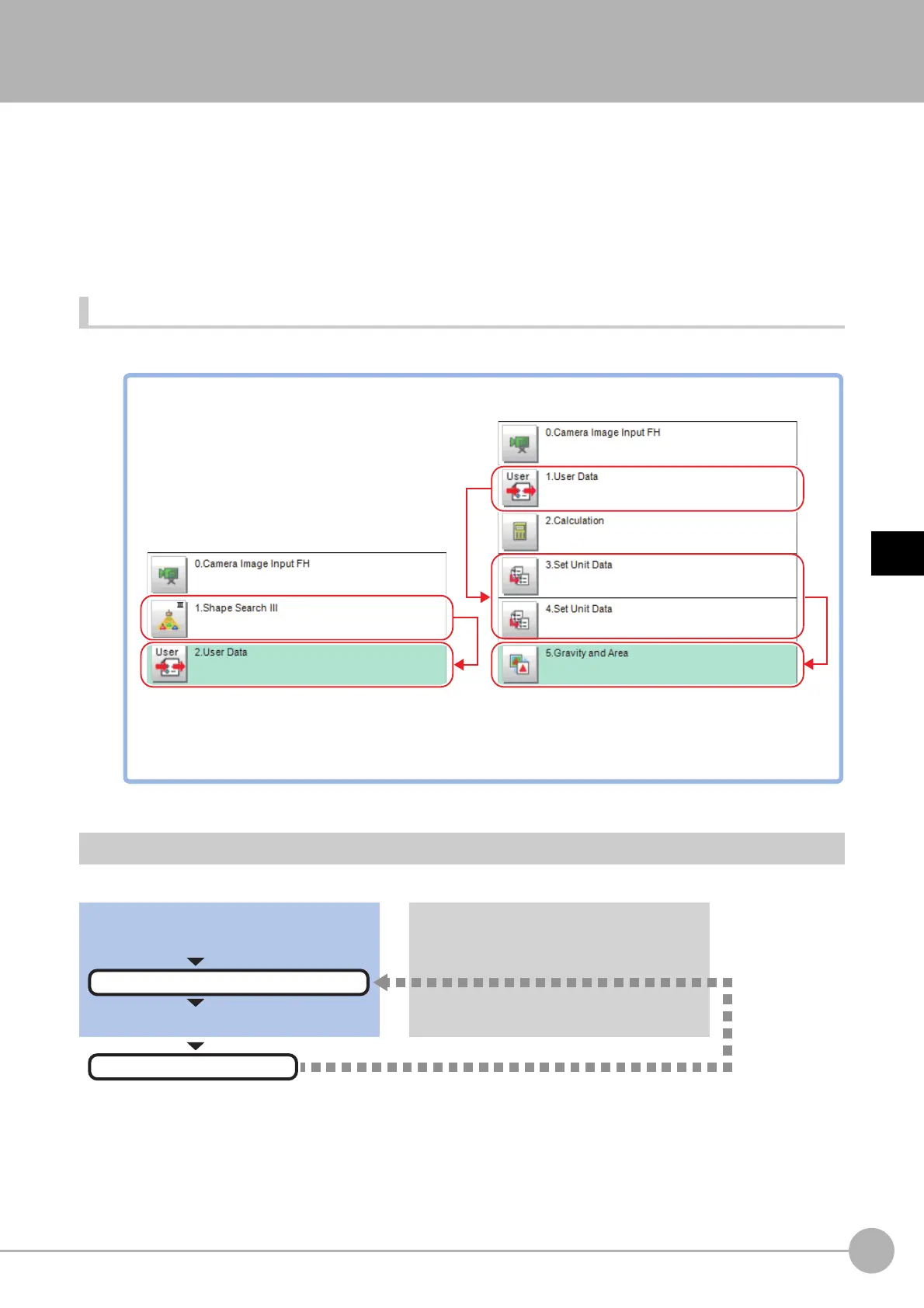

Settings Flow (User Data)
Set up user data according to the following steps.
· In scene 0, use [1. Shape Search III] to measure the coordinate values
· Set the measured coordinate X of [1. Shape Search III] in user data 0, and set the measured coordinate Y in user data 1
· In scene 1, use [1. User Data] to acquire the user data 0 and user data 1 that were set in scene 0
· Use [3. Set Unit Data] and [4. Set Unit Data] to change the parameter setting for [5. Gravity and Area].
Example: Using the coordinate values detected in scene 0, adjust the upper limit of the center of gravity of the region of scene 1
Necessary Steps Optional Steps
Check results/adjust parameters
▲
Settings (User Data)
Start
Settings completed
Test measurement
To Next Page
