Sensitive SearchFH/FZ5 Processing Item Function Reference Manual
125
2
Inspecting and Measuring

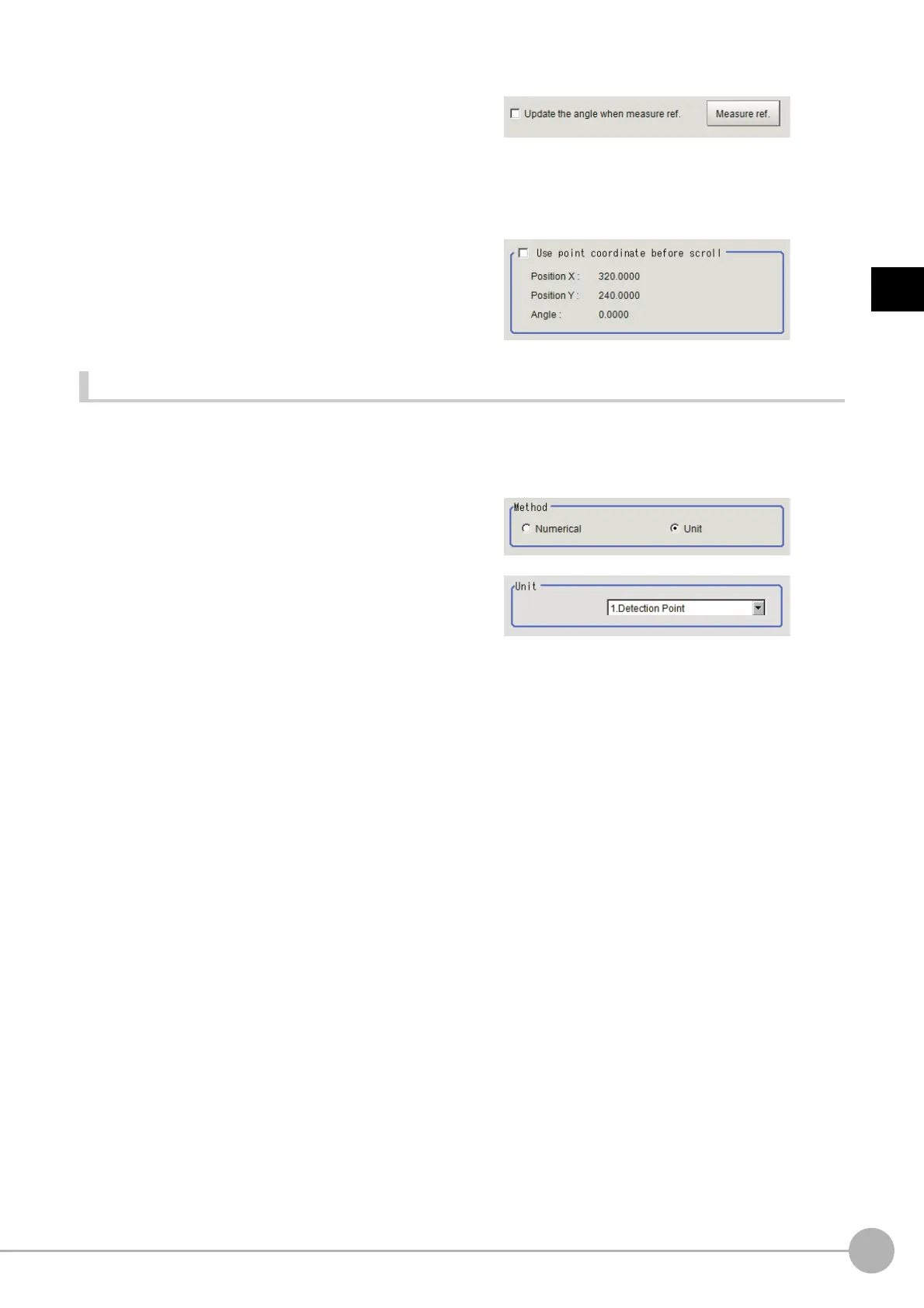

5 Set the reference angle with a numeric value.
6 To remeasure on the displayed image
and set the reference, click the [Measure
ref.] button. To update the reference
angle at the time of reference
measurement, place a check at "Update
the angle when measure ref.".
7 To use data before position
compensation for the reference setting
coordinates, place a check at "Use point
coordinate before scroll".
Referencing a unit
Set a reference by referencing a detection point unit with registered X coordinate, Y coordinate and angle data.
1 In the Item Tab area, click [Ref. setting].
In the display area, the current reference position will be displayed as the crosshair cursor.
2 In the "Method" area, select "Unit".
3 In the scene in the "Unit" area, select a
detection point unit.
4 Perform the next measurement, and the reference will be displayed.
