Camera Image Input
42
FH/FZ5 Processing Item Function Reference Manual

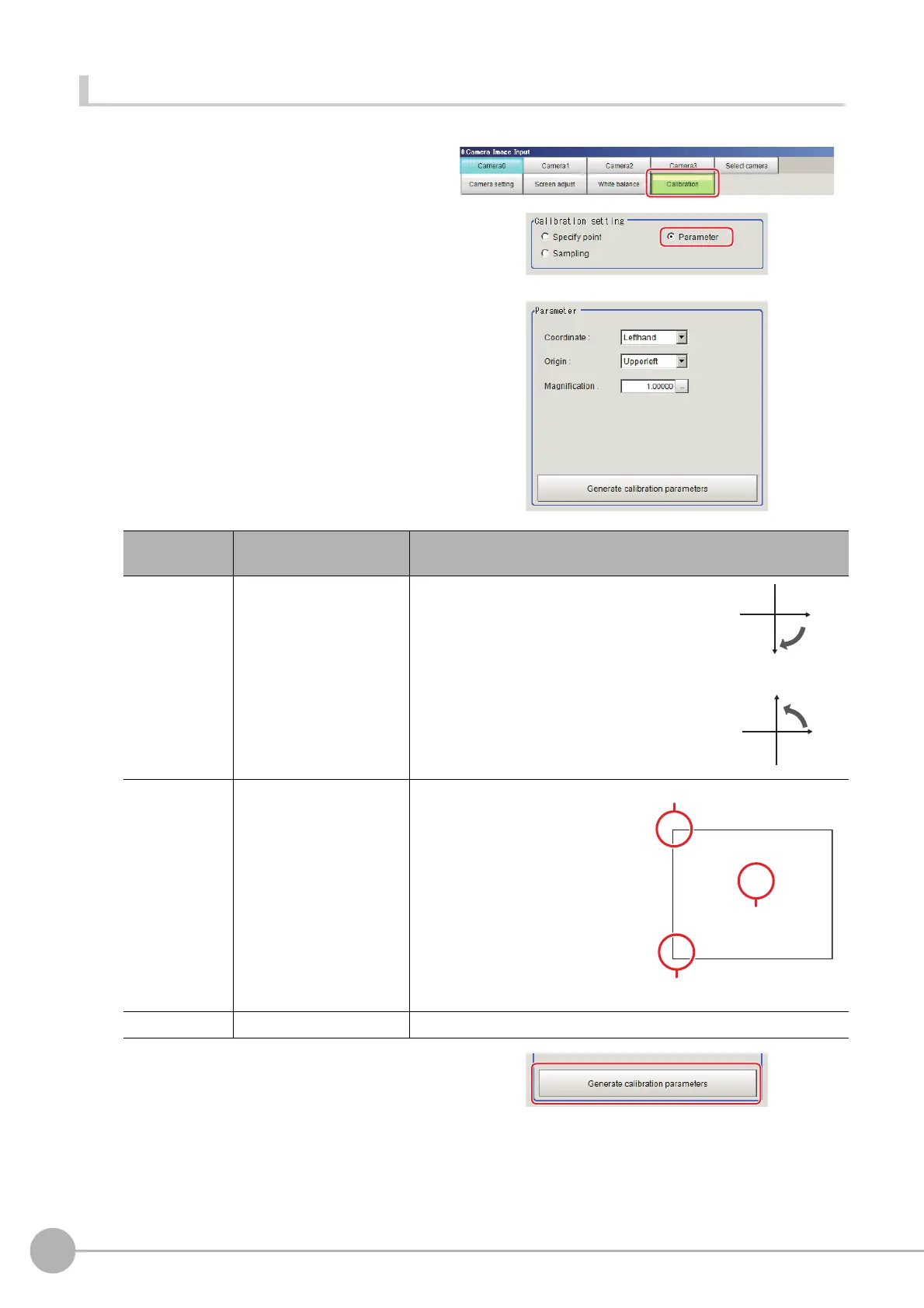

Inputting and Setting Values (Value Setting)
Enter calibration data directly with numerical values.
1 In the Item Tab area, click [Calibration].
2 In the "Calibration setting" area, select
"Parameter".
3 In the "Parameter" area, specify values
for the "Coordinate", "Origin" and
"Magnification".
4 Click [Generate calibration parameters].
The calibration parameters will be generated.
Item
Set value
[Factory default]
Description
Coordinate
• [Lefthand]
• Righthand
Left-hand type: Clockwise is forward
when
specifying the coordinates.
Right-hand type: Counter-clockwise is
forward when
specifying the coordinates.
Origin
• [Upperleft]
• Lowerleft
•Center
Select where the origin of the
actual
coo
rdinates will be.
Magnification 0.00001 to 9.99999 Specify the ratio of 1 pixel to the
actual dimensions.
Lefthanded
Righthanded
X
Y
0
0
Positive
X
Y
Positive
Upper left of screen
Lower left of screen
Center of screen
