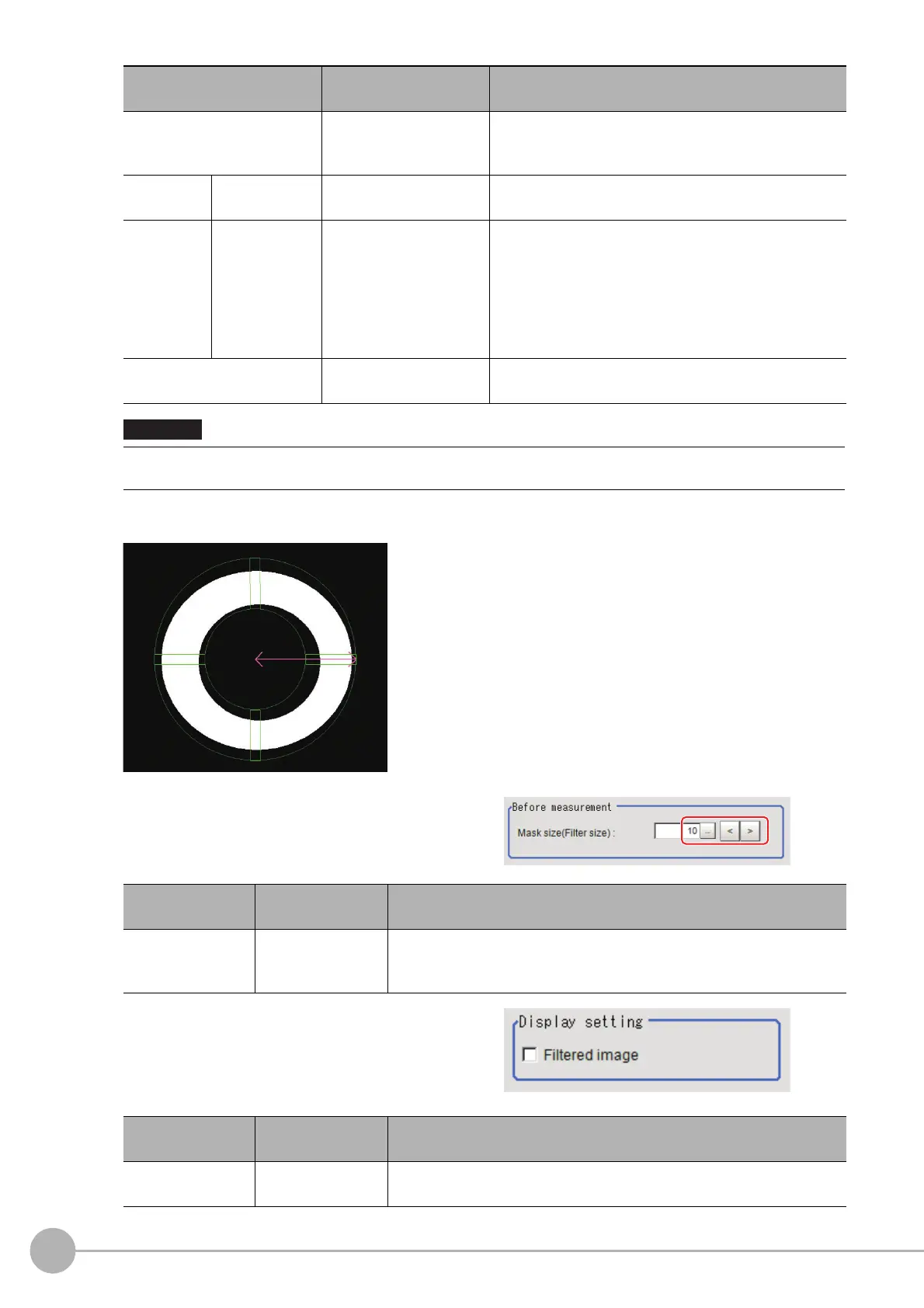

Circular Scan Edge Width
284
FH/FZ5 Processing Item Function Reference Manual
The region is divided by the specified number of points.
5 Specify the filtering settings as
necessary.
6 Perform the display setting if required.
Placing a check at [Filtered image] makes it
easier to change the filtering setting.
Scan sub-region
Set the measurement point.
Use either the "Divide num" or the "Divide angle" for this
setting.
Divide number
3 to 360
[4]
Set the number of divisions for the circle.
The specified value is used as the measurement point.
Angle number
When the width measure
type is ci
rcumfe
rence
1.000 to 179.999
When the width measure
type is diameter
1.000 to 90.000
[90.000]
Set the skipping angle for the circle.
The measurement point is de
termined based on the
specified angle.
Start angle
0 to 359
[0]
Set the start angle to specify a region.
• When the width measurement target is set to "Diameter" and
the number of divisions and the skipping angle are
set to an odd number value, 1 will be added to these settings so that they become even numbers.
Explanations of the display
• Green solid line:
Represents the circular region.
• Rectangle:
Represents the sub-region.
• Pink solid line:
Represents the angle and the measurement direction (arrow)
to sp
ecify the
region.
Setting item
Set value
[Factory default]
Description
Mask size
0 to 1000
[10]
Set the filter size when smoothing the measurement point vicinity. When 5
i
s
set, smoothing is processed for a total of 11 points: the measurement
point and the 5 pixels before and after it.
Setting item
Set value
[Factory default]
Description
Filtered image
•[Unchecked]
• Checked
If checked, the filtered image of the ranges
set with the Scan sub-region
and Filter size after smoothing is displayed.
Setting item
Set value
[Factory default]
Description
Important
