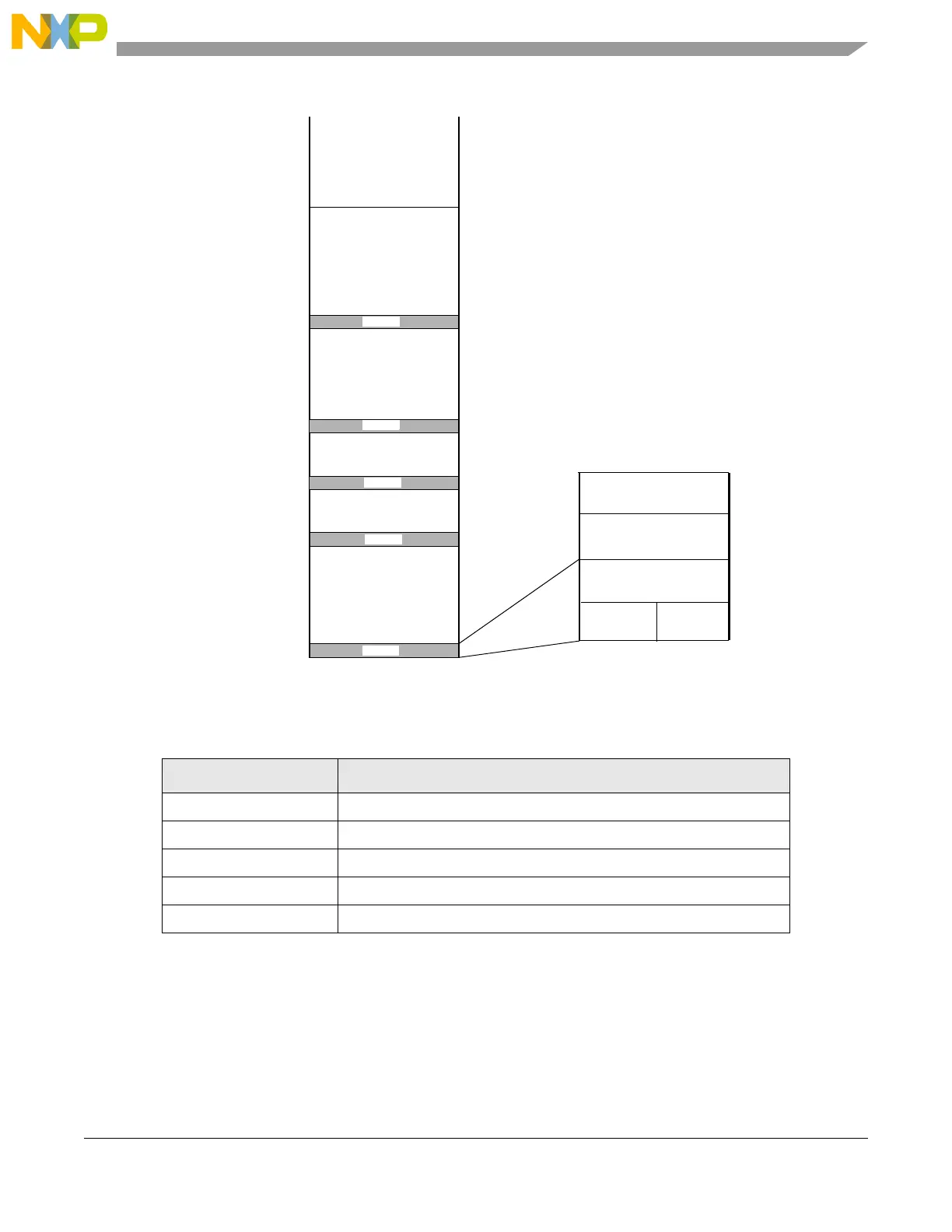

Figure 6-3. MPC5606S flash memory partitioning and RCHW search
6.5.3 Single-chip boot mode
In Single-chip mode, the hardware searches flash boot sectors for a valid boot ID. As soon the device
detects a bootable sector, it jumps within this sector and reads the 32-bit word at offset 0x4. This word is
the address where the startup code is located (reset boot vector).
Table 6-4. Flash boot sector
Block Address
0 0x0000_0000
1 0x0000_8000
2 0x0000_C000
3 0x0001_0000
4 0x0001_8000
32K
Boot information
16K
16K
32K
$0000 0000
$0000 8000
$0000 C000
$0001 0000
$0002 0000
Internal flash memory
RCHW
$0000 0000
$0000 0004
$0000 0008
$0000 000C
32K
$0001 8000
Boot information
128K
Boot information
Boot information
Boot information
Application start address
Application
Application
