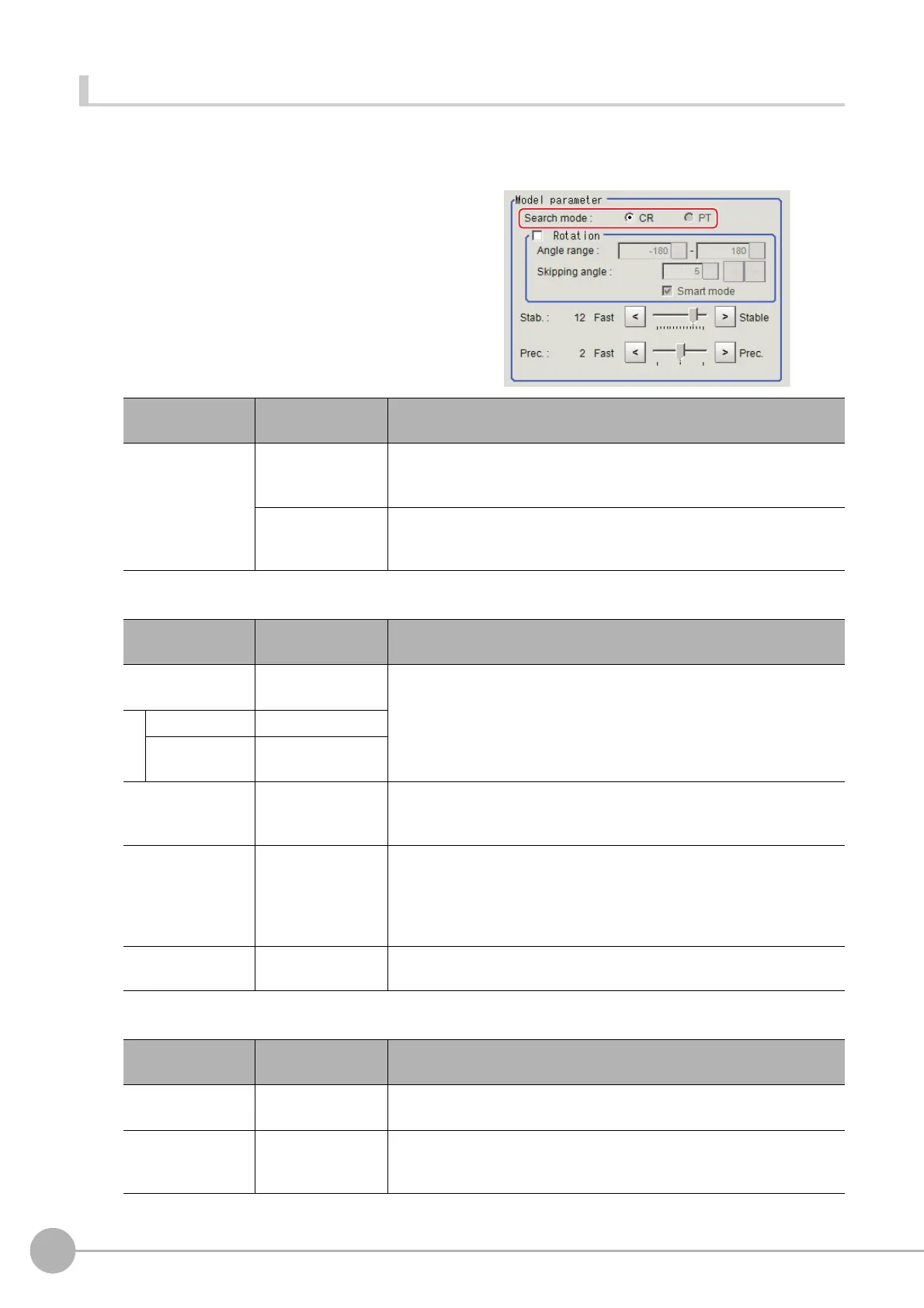

FH/FZ5 Processing Item Function Reference Manual
Changing Model Parameters
Model parameter values can be changed as needed to address unstable measurement results or to increase the
processing speed. Normally, the factory default value will be used.
After changing a setting, re-register the model.
1 In the "Model parameter" area, select the
search mode, then specify a value for
each item for that mode.
When CR is selected
When PT is selected
Setting item
Set value
[Factory default]
Description
Search mode
[CR]
Search for normalizing the brightness. This method can provide stable
measureme
nt
when there is fluctuation in the overall brightness and when
the image has low contrast.
PT
Measures the degree of matching with the profile. Th
is method can
measure at higher speed when the rotation angle has a wide range.
It is available only when a 0.3 megapixel color camera is connected.
Setting item
Set value
[Factory default]
Description
Rotation
• Checked
•[Unchecked]
When the measurement object is rotating, place
a check at "Rotation" and
specify how many degrees the model created rotates each time and
through what range of angles. A smaller skipping angle increases
stability, but slows down the processing. The forward direction is
clockwise.
Angle range [-180 to 180]
Skipping angle
1 to 30
[5]
Smart mode
• [Checked]
• Unchecked
Checking the "Smart mode" option enables a high-speed rotation search.
Howe
ver
, the stability may be lowered when the model shape aspect ratio
is large or when the NOT mask is used.
Stab.
1 to 15
[The default value
d
epen
d on the
connected camera.
9 or 12]
Specify which is to have priority
,
measurement stability or speed.
If lowering stability does not speed up proc
essing, it is likely that many
candidates have been detected. In this case, specify a larger value for
"Candidate LV" or "Stab."
Prec.
1 to 3
[2]
Specify which is to have priority, mea
s
urement positional precision or
speed.
Setting item
Set value
[Factory default]
Description
Angle range [-180 to 180]
This item specifies the rotation angle range for searching. The normal
direction i
s clockwise.
Stability
1 to 5
[3]
If lowering stability does not speed up pro
c
essing, it is likely that many
candidates have been detected. In this case, specify a larger value for
"Candidate LV" or "Stab."
