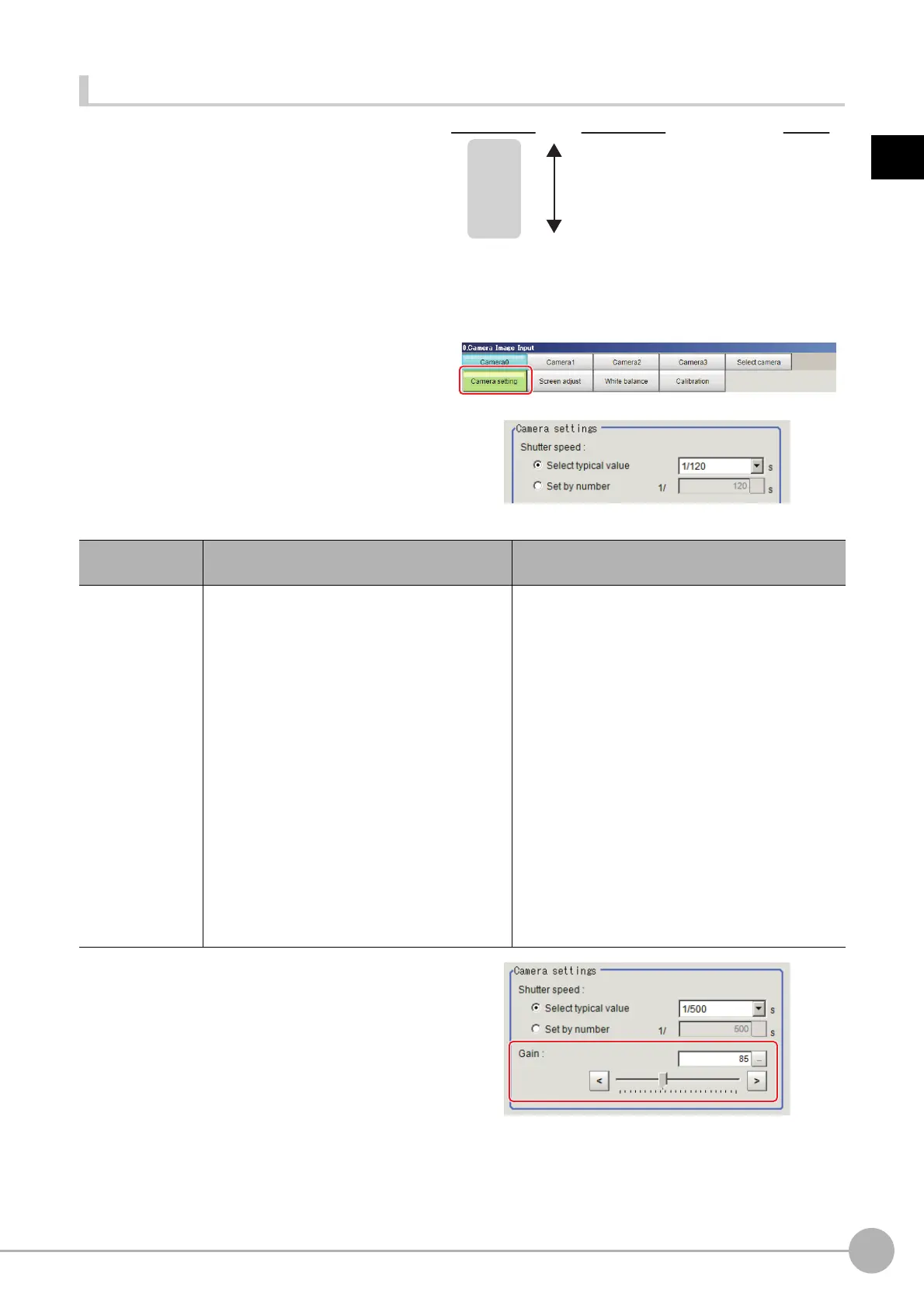

Camera Image InputFH/FZ5 Processing Item Function Reference Manual
27
1
Input image
Camera Settings
Adjust the settings related to camera shutter
speed and camera gain.
Select the shutter speed appropriate to the speed
of th
e mea
surement object. Choose a faster
shutter speed if the measurement object is
moving quickly and the image is blurred.
Adjust the camera gain when images cannot be
br
igh
tened through the shutter speed, lens
aperture, or lighting conditions. Usually, the
factory default value can be used.
1 In the Item Tab area, click [Camera
setting].
2 In the "Camera settings" area, specify
the shutter speed.
The setting methods are to select from the
options offered or to set the value directly.
3 Specify the camera gain while checking
the image.
Item
Set value
[Factory default]
Description
Shutter speed
FZ-SC/S/SHC/SH
• [Typical value]
1/200, [1/500], 1/1000, 1/2000, 1/4000,
1/8000, 1/20000
• Set by number
1/10 to 1/50000
FZ-SC2M/S2M/SC5M2/S5M2/SF/SP
• [Typical value]
1/200, [1/500], 1/1000, 1/2000, 1/4000,
1/8000, 1/20000
• Set by number
1/10 to 1/50000
FZ-SQ
• [Typical value]
1/200, 1/500, [1/1000], 1/2000, 1/4000,
1/8000, 1/16000, 1/30000
• Set by number
1/250 to 1/30000
Shutter speed value to set differs by camera type.
Camera gain
[Factory defaults: 85]
200
0
Image quality Image
Very poor (too much noise)
Very good (less noise)
bright
dark
To Next Page
