Panorama
608
FH/FZ5 Processing Item Function Reference Manual
Camera installation and image combination method
Camera arrangement (two line)
1 Set the camera arrangement.
Determine how the cameras should be placed
so that the fields of vision of adjacent
cameras, whose camera numbers are each
assigned to a camera allotment number,
overlap each other vertically and horizontally
by at least 1/4.
2 Adjust the image positions.
Use the Offset X and Y buttons on the setting
screen to align the overlapping parts of the
adjacent images that are being combined.
3 Combine the images.
Click the Combine button on the setting screen.

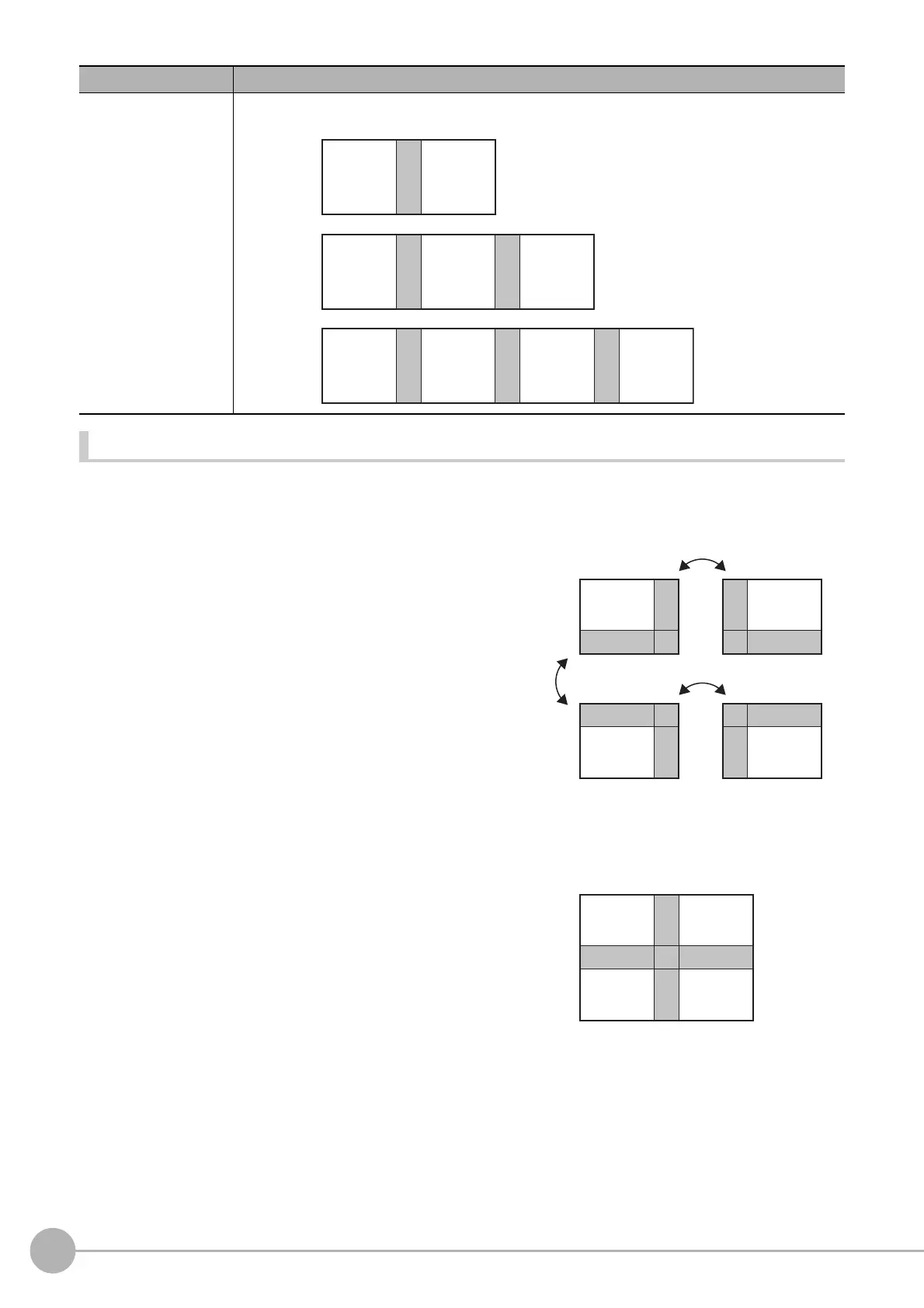

Camera arrangement (one line)
1 Set the camera arrangement.
This layout is explained using the example of combining four images.
Determine how the cameras should be placed so that the fields of vision of adjacent cameras, whose camera numbers
are each assigned to a camera allotment number, overlap each other vertically and horizontally by at least 1/4.
one line
Placement combining images arranged horizontally.
Three patterns: two images, three images, and four images.
Item Description
Camera
allotment
number 0
Camera
allotment
number 1
Camera
allotment
number 0
Camera
allotment
number 1
Camera
allotment
number 2
Camera
allotment
number 0
Camera
allotment
number 1
Camera
allotment
number 2
Camera
allotment
number 3
Overlapping parts
Overlapping parts
Camera
allotment
number 0
Camera
allotment
number 2
Camera
allotment
number 3
Camera
allotment
number 1
Camera
allotment
number 0
Camera
allotment
number 1
Camera
allotment
number 2
Camera
allotment
number 3
