Calculation
626
FH/FZ5 Processing Item Function Reference Manual
Using Values of Other Expressions
Up to 8 expressions can be set in 1 expression unit.
The value of other expressions set within
the same unit can also be used.
Since expression results obtained by the expression are displaye
d as D00 to D07 and judgement results of
expression are displayed as J00 to J07, this is set to "U3.D00" (results of expression 0 set for processing item
[Calculation] of unit number "3") using "unit number calculation results".
For the following scene settings:

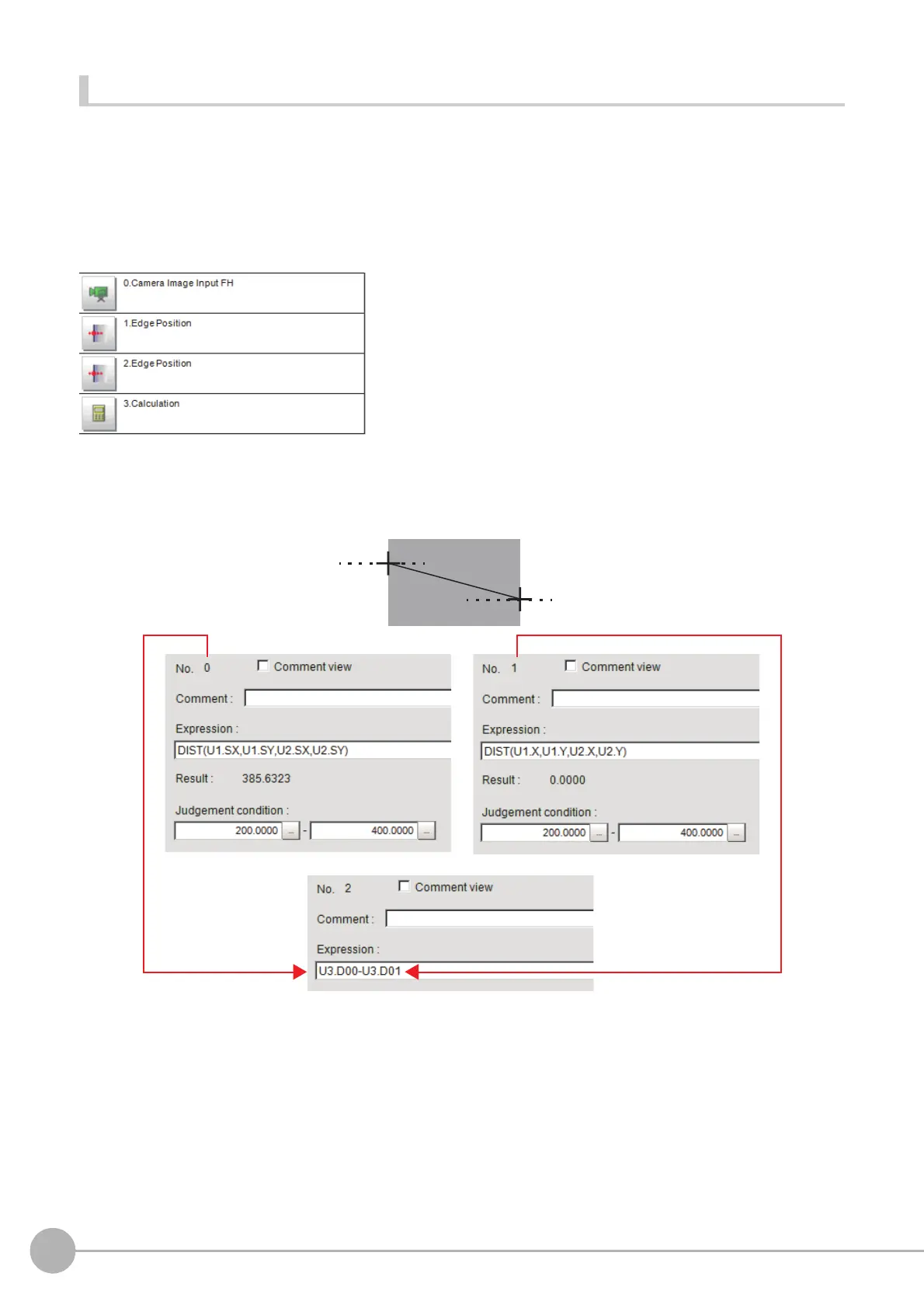

Example 1: Calculate the reference position distance and measurement results distance for the
edge position and output the difference between the two.
rea of Unit 1
Area of Unit 2
Substitute the operational results of Expression 0 (DO0) and Expression 1 (DO1)
To Next Page
