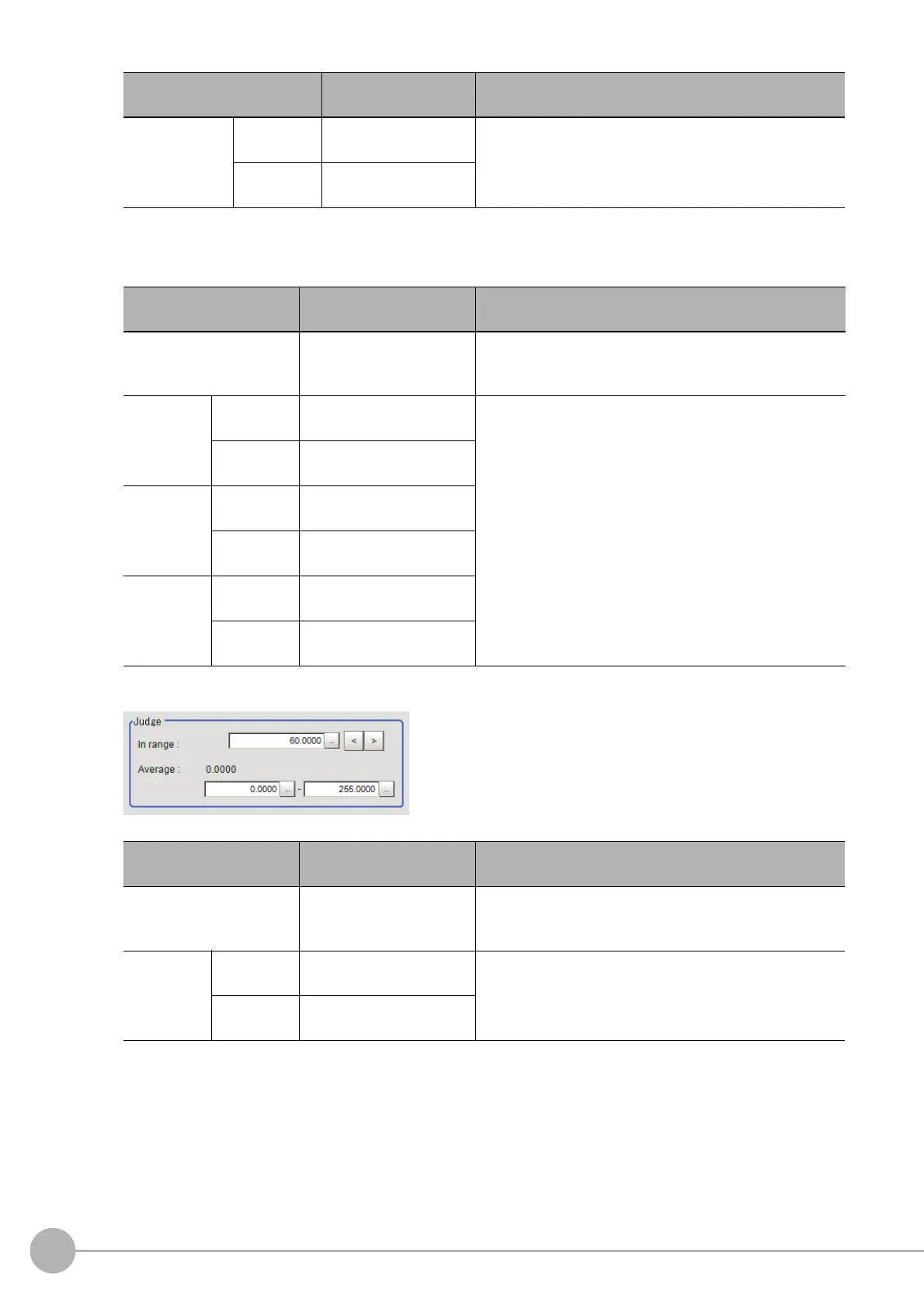

FH/FZ5 Processing Item Function Reference Manual
4 Set up the judgement condition.
For color cameras:
For monochrome cameras:
Setting item
Set value
[Factory default]
Description
Brightness
range
Up
per limit
0 to 255
[240]
Set the range used to determine
whether or not the
brightness of pixels is valid.
Lower limit
0 to 255
[20]
Setting item
Set value
[Factory default]
Description
In range
0.0000 to 100.0000
[60.0000]
Set the minimum number of pixels to be made valid. Valid
pixels
indicate the percentage (%)of pixels inside the valid
brightness range in the region.
R average
Upper limit
0 to 255
[255.000]
Set the R, G and B ranges to be made valid.
Lower limit
0 to 255
[0.000]
G average
Upper limit
0 to 255
[255.000]
Lower limit
0 to 255
[0.000]
B average
Upper limit
0 to 255
[255.000]
Lower limit
0 to 255
[0.000]
Setting item
Set value
[Factory default]
Description
In range
0.0000 to 100.0000
[60.0000]
Set the minimum number of pixels to be made valid. Valid
pixels
indicate the percentage (%)of pixels inside the valid
brightness range in the region.
Average
Upper limit
0 to 255
[255.000]
Set the average brightness range to be made valid.
Lower limit
0 to 255
[0.000]
