Camera Image Input HDRFH/FZ5 Processing Item Function Reference Manual
77
1

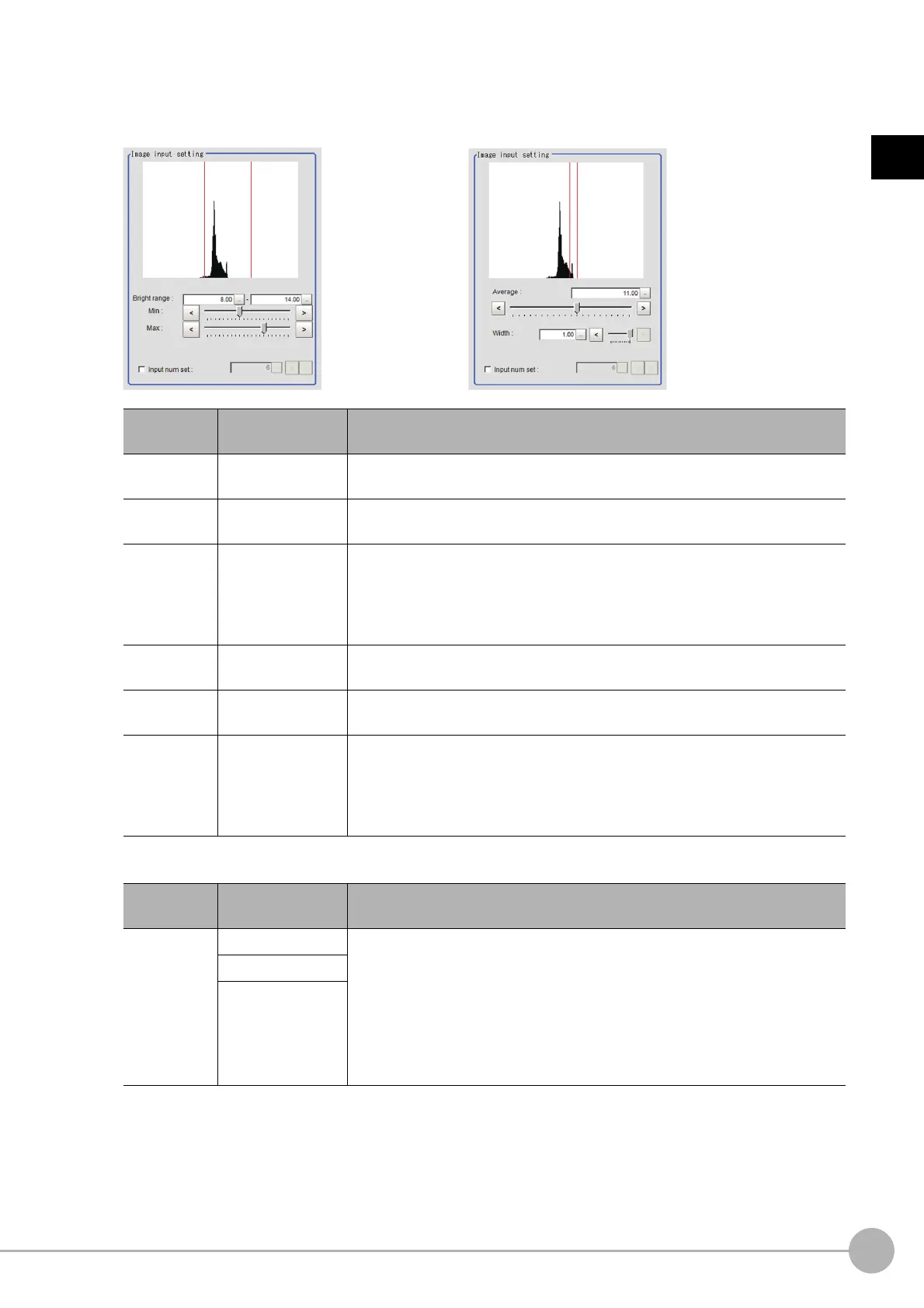

Input image
3 In the "Image input setting" area, set the items.
A brightness histogram is displayed as the graph.
4 In the "Output setting" area, set the combination method.
The current shot count and image combination time for the settings are displayed.
Item
Set value
[Factory default]
Description
Min Bright
range
0 to 20
[8]
This item sets the minimum brightness for combining images.
Max Bright
rang
e
0 to 20
[14]
This item sets the maximum brightness for combining images.
Input num set
• [Unchecked]
• Checked
2 to 16
[6]
Place a check to set the number of shots manually.
Setting a high shot count provides ima
ges with low no
ise. However, more
processing time is required.
Setting a low shot count shortens the processing time. However, the image is
more
easi
ly affected by noise.
Average
0.00 to 20.00
[11.00]
Specify the average brightne
ss for
images shot.
Width
0.01 to 1.00
[1.00]
Specify the brightness range for images shot.
Input num set
• [Unchecked]
• Checked
2 to 16
[6]
Place a check to set the number of shots manually.
Setting a high shot count provides ima
ges with low no
ise. However, more
processing time is required.
Setting a low shot count shortens the processing time. However, the image is
more
easi
ly affected by noise.
Item
Set value
[Factory default]
Description
Combine type
[Normal] Select the combination method.
Normal: Standard combination method This compensates the brightness so that
dark
sections on the combination image do not become all black.
Color: This is suitable for inspecting lab
e
ling and the Gravity and Area. This
compensates the saturation when there is little hue information in the combined
image.
Linear: This is suitable for fine matching and defect inspection. In order to output
the
actual brightness of the workpiece, no compensation is performed.
Color
Linear
To Next Page
