Sensitive SearchFH/FZ5 Processing Item Function Reference Manual
121
2
Inspecting and Measuring
Changing Model Parameters
Model parameter values can be changed as needed to address unstable measurement results or to increase the
processing speed. Normally, the factory default value will be used.
After changing a setting, re-register the model.

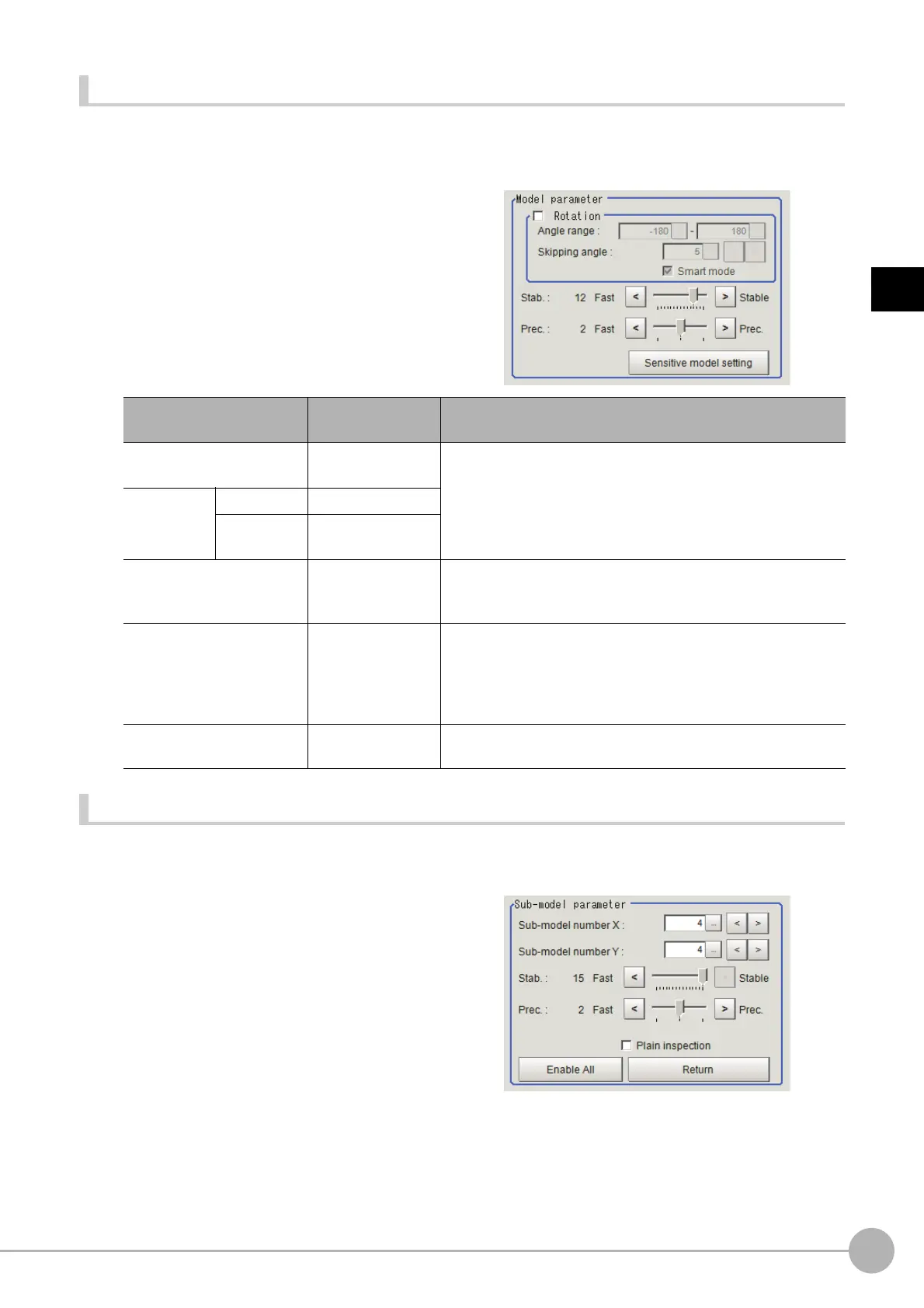

1 In the "Model parameter" area, set each
item.
Changing Sub-model parameter
Set the "Sensitive model setting" as necessary.
1 Click [Sensitive model setting] in the model parameter.
2 Set up the Sub-model parameter.
Setting item
Set value
[Factory default]
Description
Rotation
• Checked
• [Unchecked]
When the measurement object is rotating, place a check at
"Rot
ation
" check box and specify how many degrees the model
created rotates each time and through what range of angles. A
smaller skipping angle increases stability, but slows down the
processing. The normal direction is clockwise.
Angle range [-180 to 180]
Skipping
an
gle
1 to
30
[5]
Smart mode
• [Checked]
• Unchecked
Checking the "Smart mode" option enables a high-speed rotation
search.
However, the stability may be lowered when the model
shape aspect ratio is large or when the NOT mask is used.
Stab.
1 to 15
[The default value
d
epen
d on the
connected camera.
9 or 12]
Specify which is to have priority
,
measurement stability or speed.
If lowering stability does not speed up processing, it is likely that
many ca
ndidates have been detected. In this case, specify a
larger value for "Candidate level" or "Stab."
Prec.
1 to 3
[2]
Specify which is to have priority, measurement positional
precisio
n or speed.
