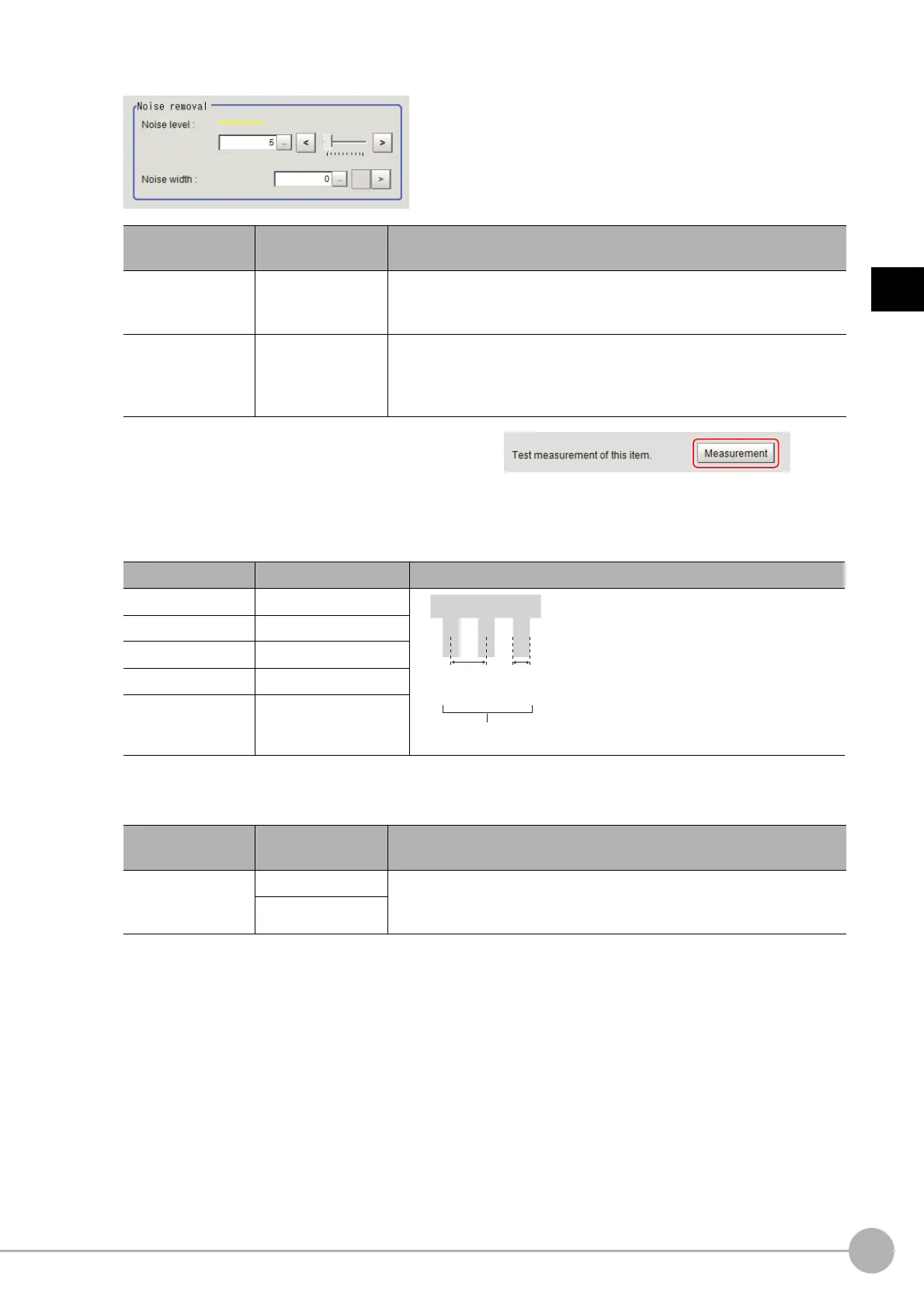

Edge PitchFH/FZ5 Processing Item Function Reference Manual
239
2
Inspecting and Measuring
3 If necessary, set each item in the "Noise removal" area.
4 When the setting has been changed,
click [Measurement] in the "Detail" area
to verify whether measurements can be
made correctly.
5 Set up the judgement condition.
6 If a circumference with a width or an arc with a width is set for the region, set the profile
display settings as required.
Setting item
Set value
[Factory default]
Description
Noise level
0 to 442
[5]
When detection is affected by noise, increase this value.
Reference: "Appendixes Measurement Mechanism Noise Level" in the
"V
isi
on System FH/FZ5 Series User's Manual (Z365)"
Noise width
0 to 9999
[0]
Set the width for judging noise.
When detection is affected by noise, increase this value.
Reference: "Appendixes Measurement Mechanism Noise Width" in
th
e "V
ision System FH/FZ5 Series User's Manual (Z365)"
Setting item Set value Description
Edges 0 to 999 Specify a range to be judged as OK.
Pitch 0 to 99999.9999
Ave pitch 0 to 99999.9999
Width 0 to 99999.9999
Ave width 0 to 99999.9999
Setting item
Set value
[Factory default]
Description
Enlarged display
[Not Visible] If you place a check here, the profile will be displayed for the length along
the circumference of the circumference with a width or arc with a width.
Use an enlarged display to check the details of the profile.
Visible
Pitch
Width
Number
(Distance between two
central points)
