IntersectionFH/FZ5 Processing Item Function Reference Manual
297
2
Inspecting and Measuring

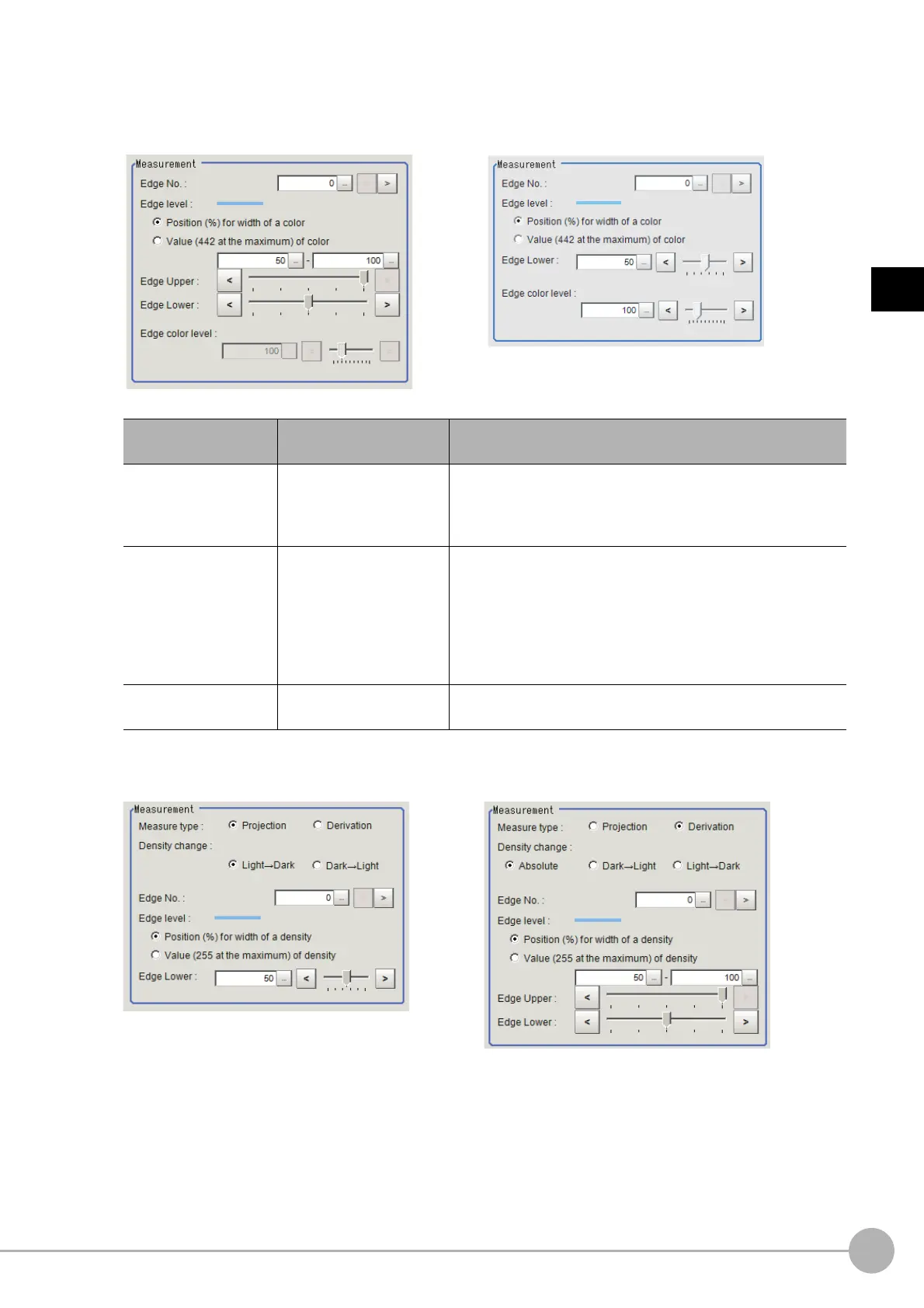

4 Set the value of each item in the "Measurement" area.
For color cameras:
For monochrome cameras:
Edge Color Not Specified Edge Color Specified
Setting item
Setting value
[Factory default]
Description
Edge No.
0 to 99
[0]
Set the edge number used to extract edges.
Edge numbers are assigned to detected edges starting from 0
an
d in the directio
n from the start point (the arrow) to the end
point (the arrow point) in the selected region.
Edge Upper (only when
ed
ge color is not
specified)
Edge Lower
• Position (%) for
width of a color
0 to 100
[50] to [100]
• Value (442 at the
m
a
ximum) of color
[20] to [442]
Set a range of a color difference level with which the edge is
detected.
Reference: "Appendixes Measurement Mechanism Edge
De
te
ction Measurement" in the "Vision System FH/FZ5 Series
User's Manual (Z365)"
Edge color level
0 to 442
[100]
This emphasis level can be set only if the ed
ge co
lor to detect is
set.
When the measurement method is "Projection" When the measurement method is "Derivation"
