Model DictionaryFH/FZ5 Processing Item Function Reference Manual
413
2
Inspecting and Measuring
1 In the Item Tab area, click [Model].
2 When the measurement object is rotating, set the Angle range for the "Model parameter"
area.
Reference: Changing Model Parameters (p.414)

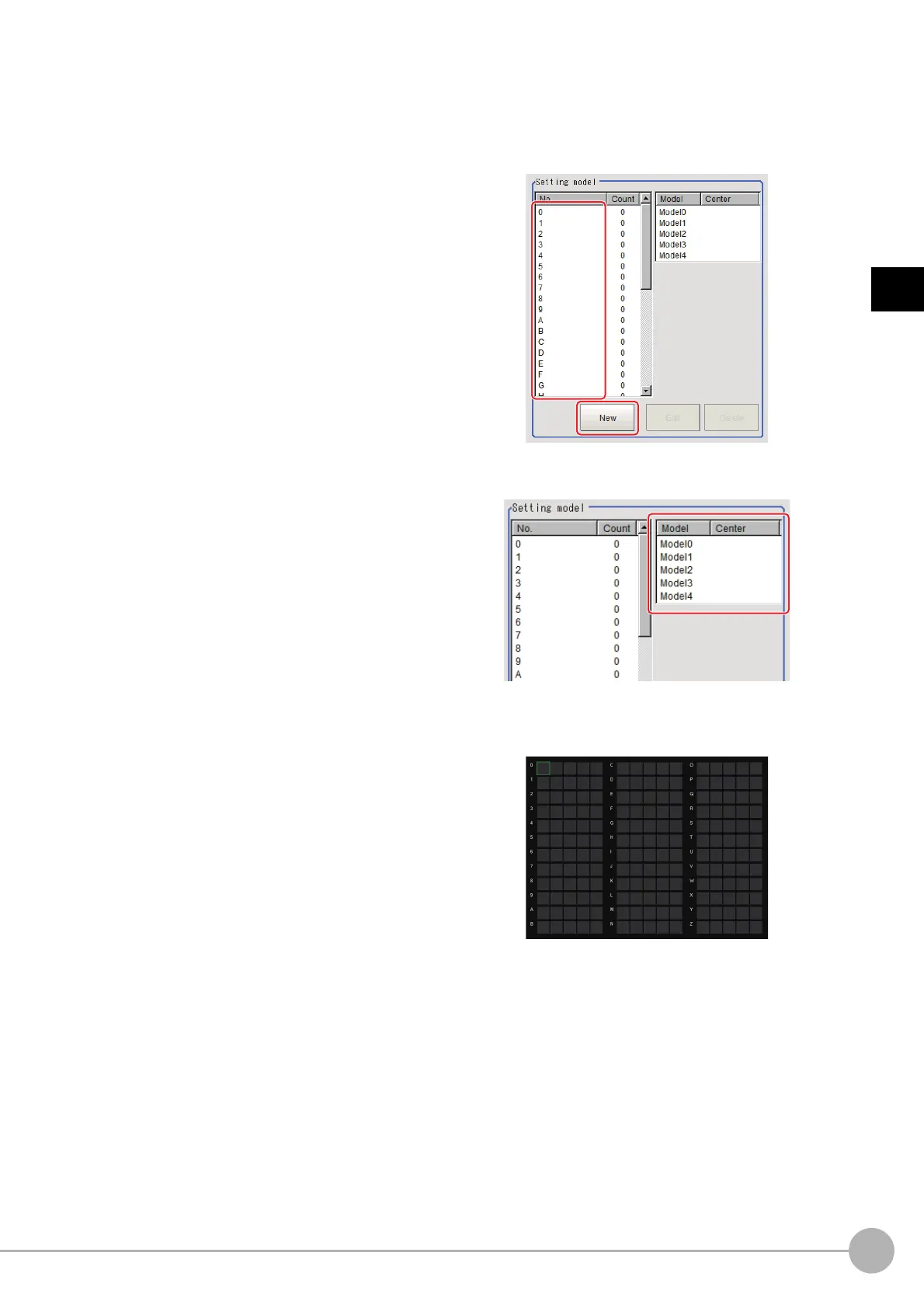

3 Select the index to register the model in,
then click [New].
4 Use the Drawing tools to specify the model registration range.
5 Click [OK] in the Figure setting area.
• [OK]: Changes the settings and returns to the
previous menu.
• [Cancel]: Changes are discarded. Returns to the
pre
v
ious menu.
• [Apply]: Updates the settin
gs w
ithout leaving
edit window.
The image specified for the model is displayed
in the Image Display area.
6 To register two or more models, repeat the Steps Reference: 3 (p.413) to Reference: 5
(p.413) .
To Next Page
