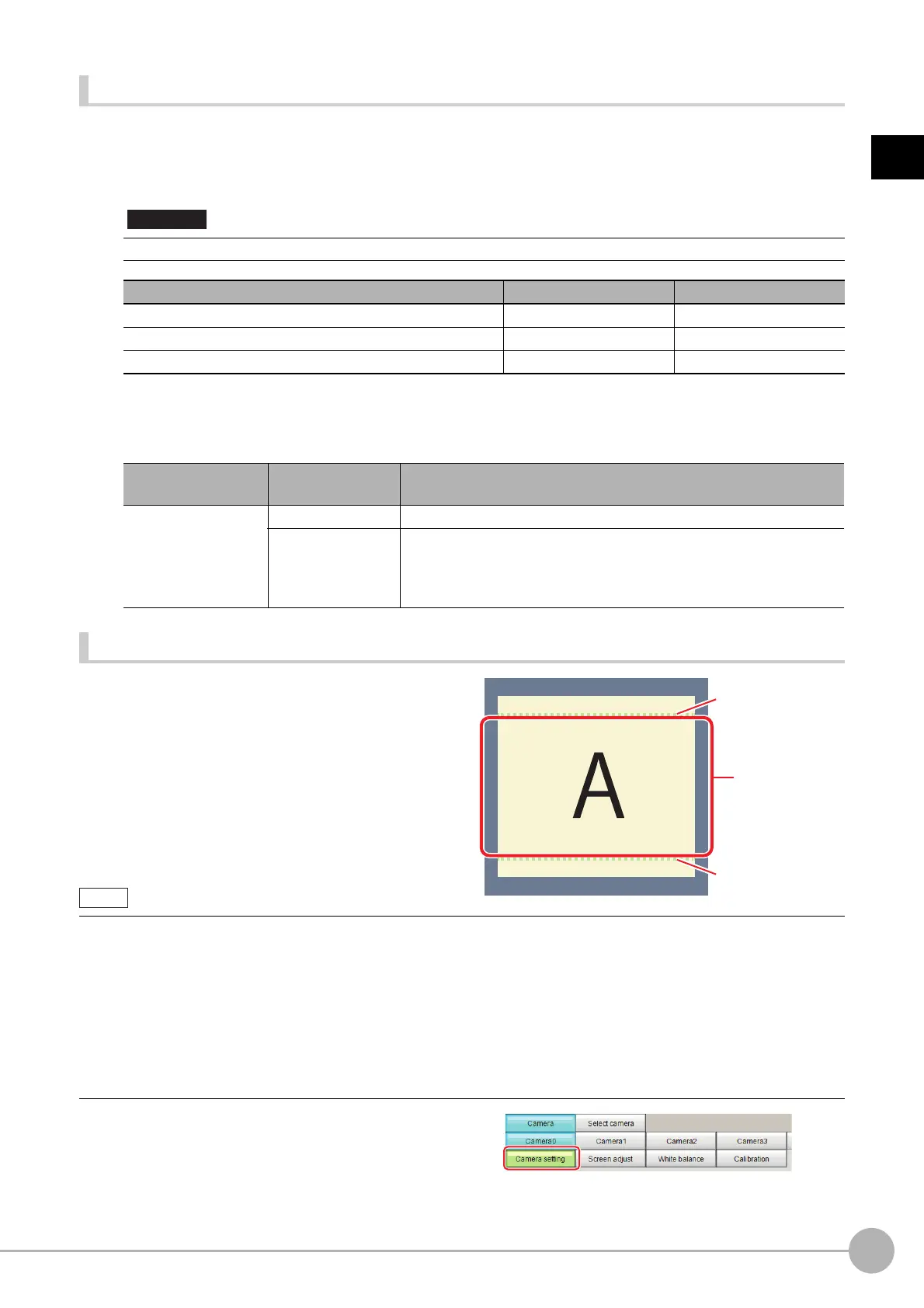

Camera Image Input FHFH/FZ5 Processing Item Function Reference Manual
51
1
Input image
Binning Settings (for Monochrome Cameras Only)
Binning is a function for obtaining a single value by adding multiple lines together.
Some cameras give the effect of a higher frame rate by raising th
e sensitivity of the brightness virtually by adding
together and decreasing the amount of data to be transferred.
1 In the Item Tab area, click [Camera setting].
In the "Binning settings" area, select either "1 line" or "2 lines".
Number of lines to be read
By narrowing the image range to be loaded, the image
scan time can be shortened.
Set the range taking the offset of the measurement
object into
cons
ideration.
The part of the image narrowed down by the start line
and the end line will be displayed in the
Image Display
ar
ea of the processing item setting window or the Main
screen.
1 In the Item Tab area, click [Camera
setting].
• The effects that can be obtained with different cameras are as follows.
Camera model Brightness Sensitivity Frame rate
Monochrome FZ Camera Effective Effective
Monochrome FH Camera (Excluding FH-SM05R) Effective No effect
FH-SM05R No effect Effective
Item
Setting value
[Factory default]
Description
Binning setting
[1 line] Data is transferred line by line.
2 lines
Data is transferred two lines at a time.
Each image is scanned skipping one scan line per two consecutive
lin
es. Mea
surement precision is decreased because the image
resolution in the vertical direction is lower.
About minimum number of lines
• With the FH-SM/FH-SMR, the minimum number of lines (minimum value between the start and end lines) is 4
li
ne.
•
With the FH-SC/FH-SCR, the minimum number of lines is 4 lines.
• With the FZ-S excluding the FZ-SQ series, the minimum number of lines is 12 lines.
• With the FZ-SQ series, the minimum number of lines is 8 lines.
About coordinate values
• The coordinate values displayed as the me
asuremen
t results are the values of the display position on the monitor.
• The coordinate values do not vary according to the settings
for "Number of lines to be read".
Important
Start line
End line
Range of image to be
loaded
