Camera Image Input FH
56
FH/FZ5 Processing Item Function Reference Manual

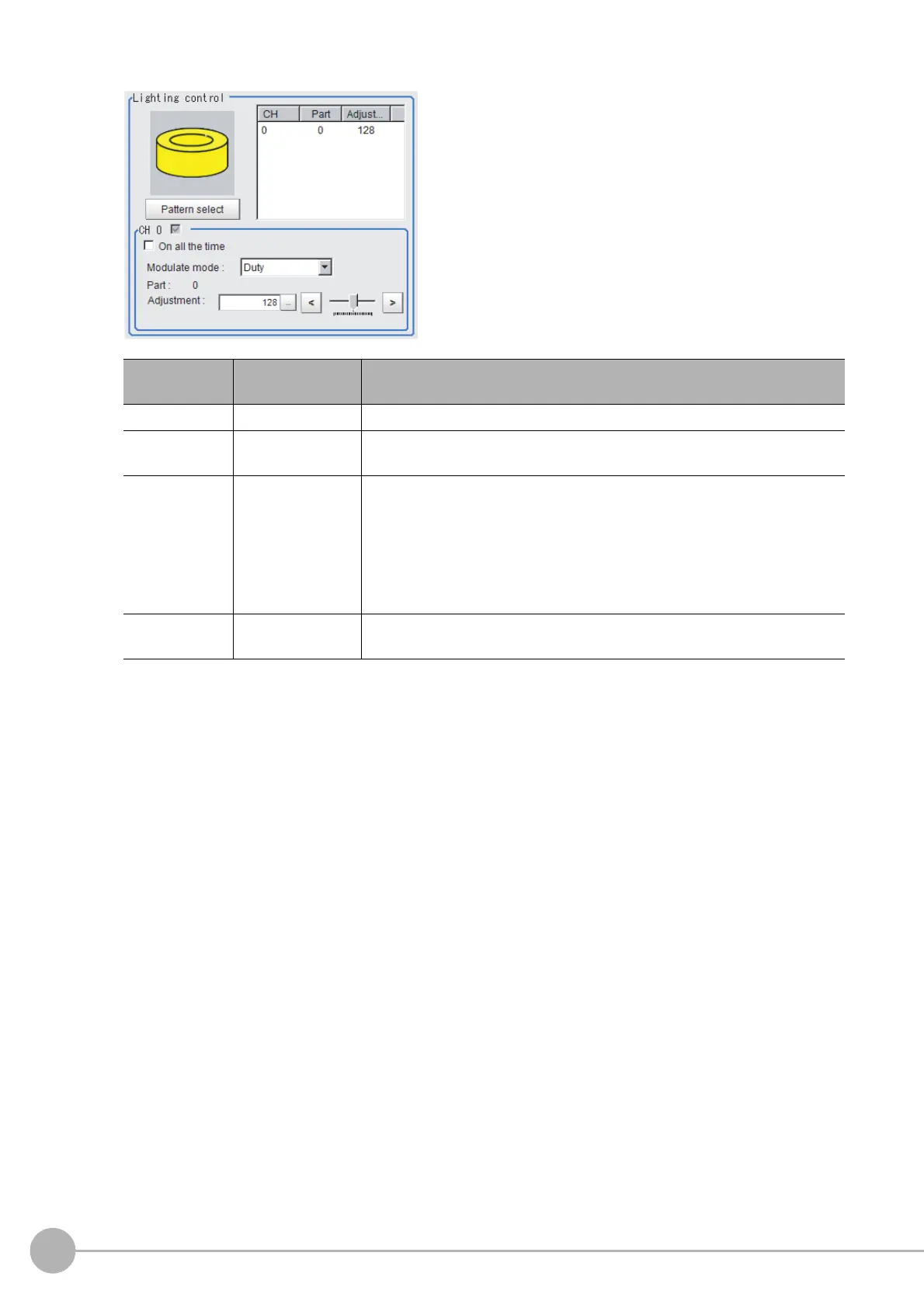

Camera-mount Lighting Controller FLV-TCC1 is connected:
Item
Setting value
[Factory default]
Description
Pattern select
---
Select from preset lighting patterns.
On all the time
•Checked
• [Unchecked]
Place a check here to keep the light turned ON
all
of the time regardless of the
exposure time.
Modulate mode
•[Duty]
• Voltage / Current
Select the lighting a
d
justment method.
•Duty
The brightness of the light is adjusted with 255
levels of the pulse width
(PWM frequency: 100 kHz).
• Voltage / Current
The brightness of the light is adjusted with 255 voltage / current levels.
Select voltage lighting adjustment if you will use a high-speed shutter speed.
Part
0 to 255
[128]
Set the brightness for the selected parts.
