Camera Image Input FH
70
FH/FZ5 Processing Item Function Reference Manual

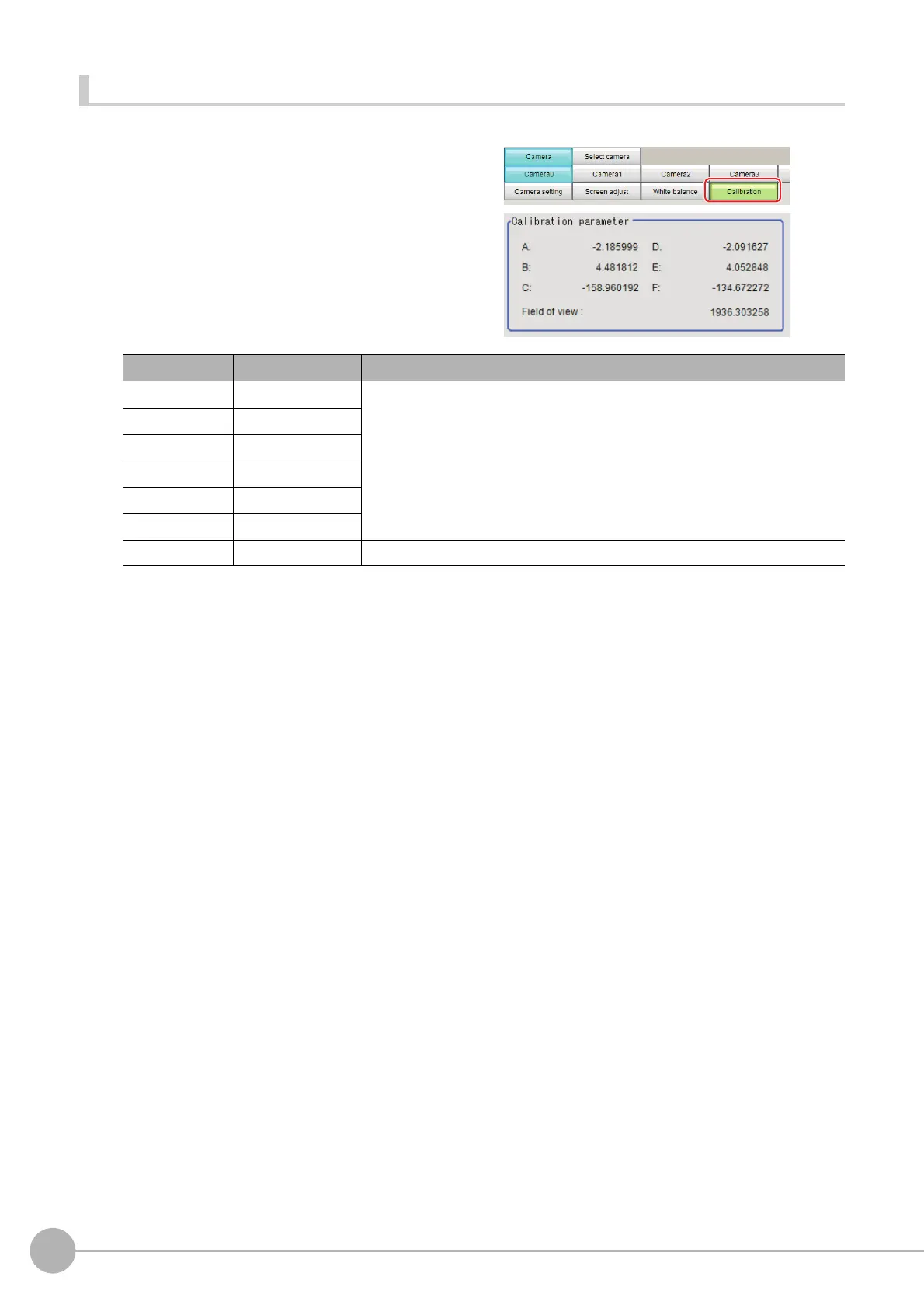

View Calibration Parameters
View the set calibration data.
1 In the Item Tab area, click [Calibration].
2 In the "Calibration parameter" area,
confirm the calibration data.
Item Setting value Description
A Calculation value
These are calibration conversion values. Camera coordi
nates are converted
to actual coordinates based on these values. The conversion formulas for
actual coordinates are as follows:
• (X, Y): Measurement point (camera coordi
nates), Unit: pix
• (X', Y'): Conversion point (actual coordinates)
X'=A ×
X + B × Y
+ C
Y'=D × X + E × Y + F
B Ca
lculation value
C Calculation value
D Calculation value
E Calculation value
F Calculation value
Field of view Calculation value This is an actual dimension in the X direction.
