Stage Data
734
FH/FZ5 Processing Item Function Reference Manual
*1, *2, *3: Those function name are displayed on the screen. If you select Y-axis in Movement axis, those name will change
as below.

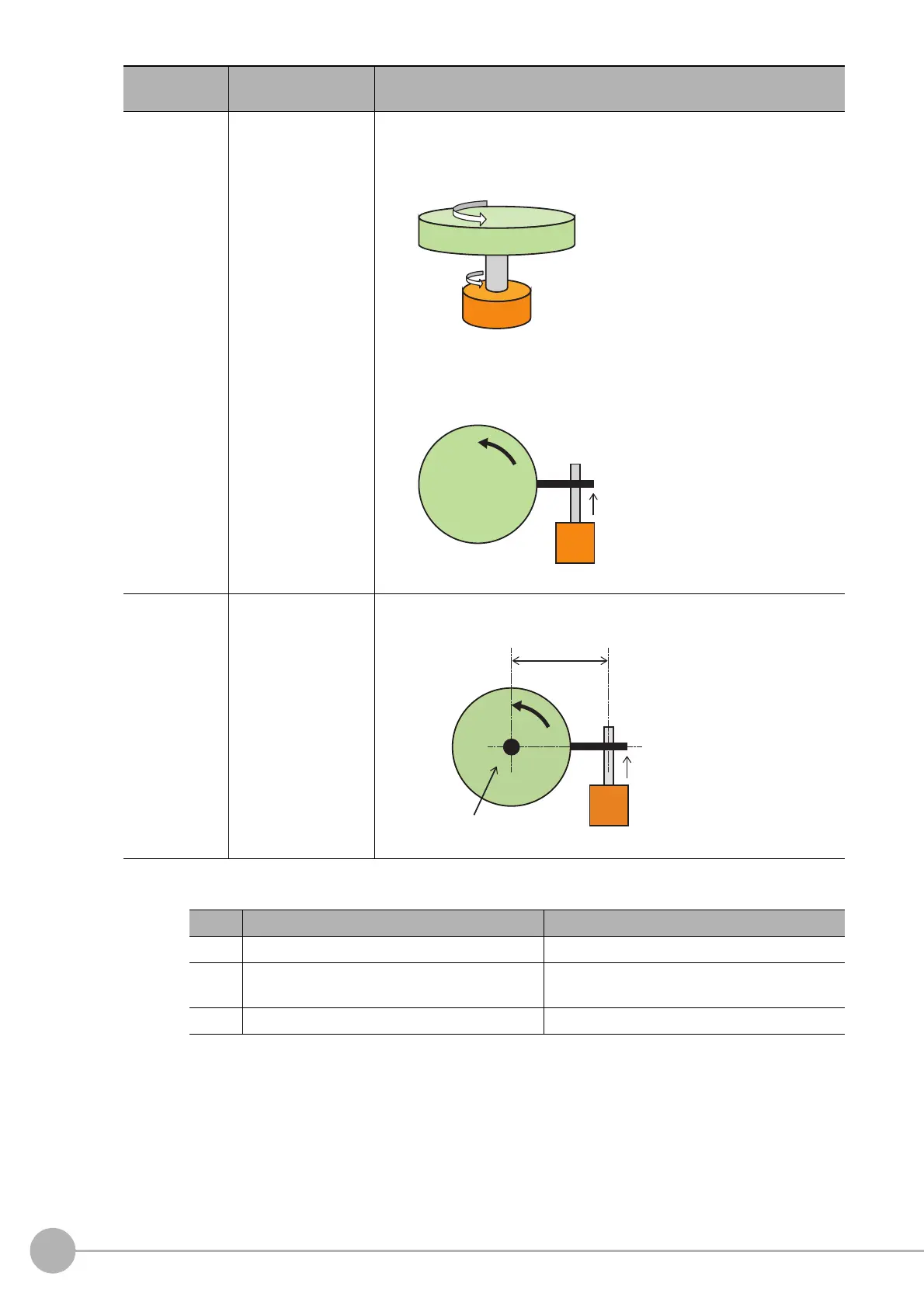

θ-axis type
• [Direct dirive]
• Linear drive
Select the q axis drive type.
[Direct drive]: Movement method comberting rotation of θ-axis to
rot
ation
axis of motor.
Linear dive: Control rotation of θ-axis with linear movement of motor
rotation.
Distance from
rot
a
tion center
to linear axis
0.0000 to
99999.9999
[0.0000]
When you select [Linear], set the distance (L) from rotation center to linear
axis.
Select X-axis as Measurement axis Select Y-axis as Measurement axis
*1 Y-axis relative angle(X-axis standard) X-axis relative angle(Y-axis standard)
*2
Y-axis relative angle magnification(X-axis
standard)
X-axis relative angle magnification(Y-axis
standard)
*3 X-axis limit Y-axis limit
Setting Item
Setting value
[Factory default]
Description
Rotation stage
Motor
Rotation stage
Motor
Rotation stage
Stage rotation center
Motor
L
