Vision Master CalibrationFH/FZ5 Processing Item Function Reference Manual
753
4

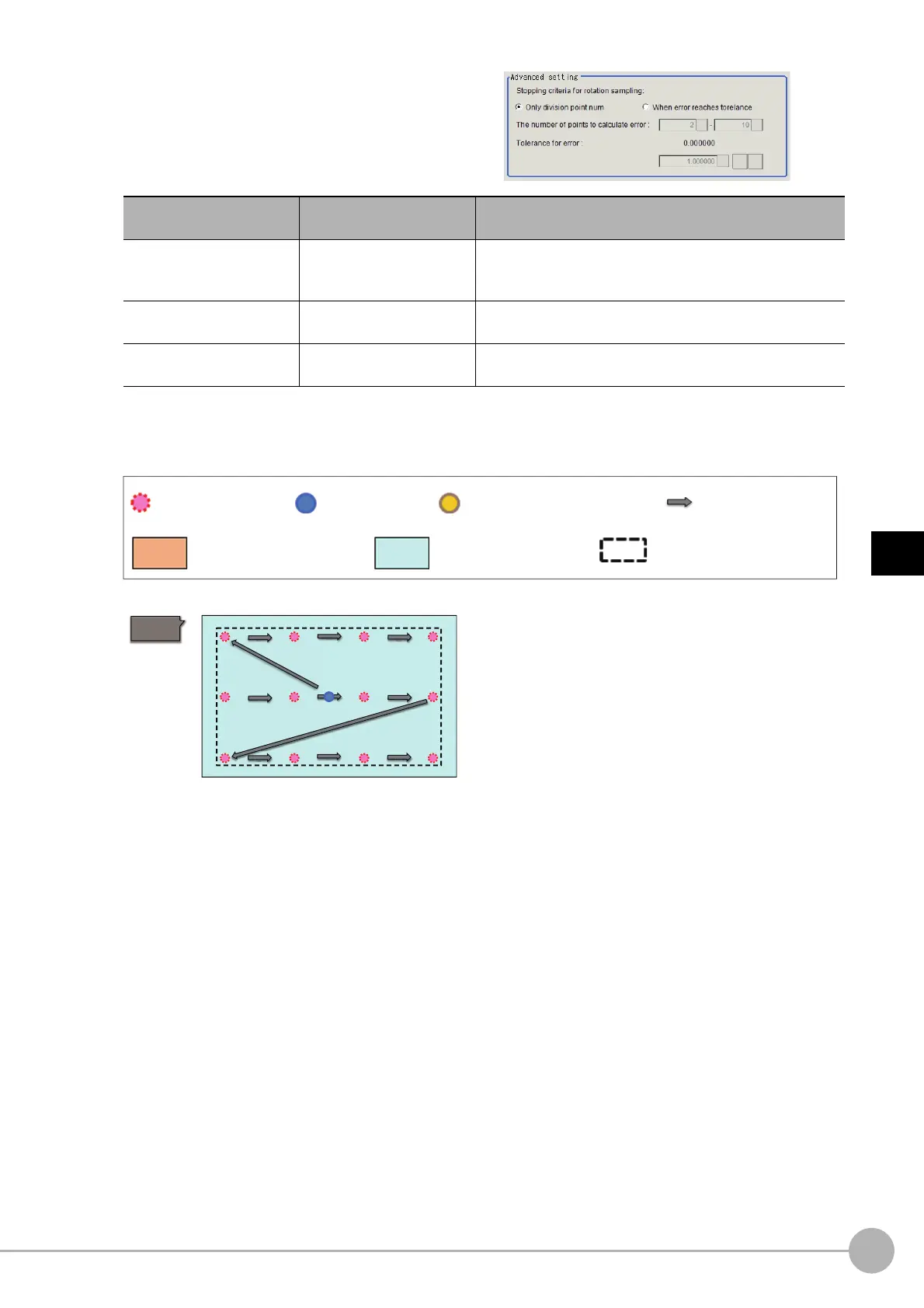

Support Inspection and Measurement
4 If necessary, set each item in the
Advanced setting area.
The movement amount necessary
for sampling measurement
Movement amount necessary for sampling measurement is calculated using the number of divided lines
(N) and the number divided lines (M).
Setting item
Setting value
[Factory default]
Description
Stopping criteria for rotation
sampling
• [Only division point num]
• When error reaches
torelance
Select th
e end condition for rotational movement in this
calibrati
on.
The number of points to
calcul
ate error
2 to 100
[2] to [10]
[Stopping criteria for rotation sampling], calculates error
within the range of [The number of points to calculate error].
Tolerance for error
0 to 99999.999999
[1.000000]
Specify the upper limit value for the error detection.
Number of movement points = N × M
Number of movement times = The number of
dat
a items
checked in [Calibration target].
When the parallel movement sampling by one
data is executed
.
• Samples in every using camera.
• Calcurates the sampling moving amount as the
maximum moving range of the number of
movement point in parallel movement sampling
settings and the effective view range of camera.
• Reference position is the axis position of the
center view.
Reference position will be center of vision.
: Range of camera field of view : Range of stage movement : Valid range of the field of view
: Measurement position : Reference position : Center of the camera field of view : Direction of movement
Parallel
movement
per 1 data
To Next Page
