Vision Master Calibration
752
FH/FZ5 Processing Item Function Reference Manual
(2)
• When you select the XYθ, θXY, UVW or
UVWR
stages in Stage Data function.
• When you select 4-axis robot in Robot
Data function.
• When you select X(Y) Stage and set X axis as movement axis, only [Y division number] can be applied. In this case,
[X division number] is grayed out. When you select Y axis to the movement axis, [Y division number] is grayed out.

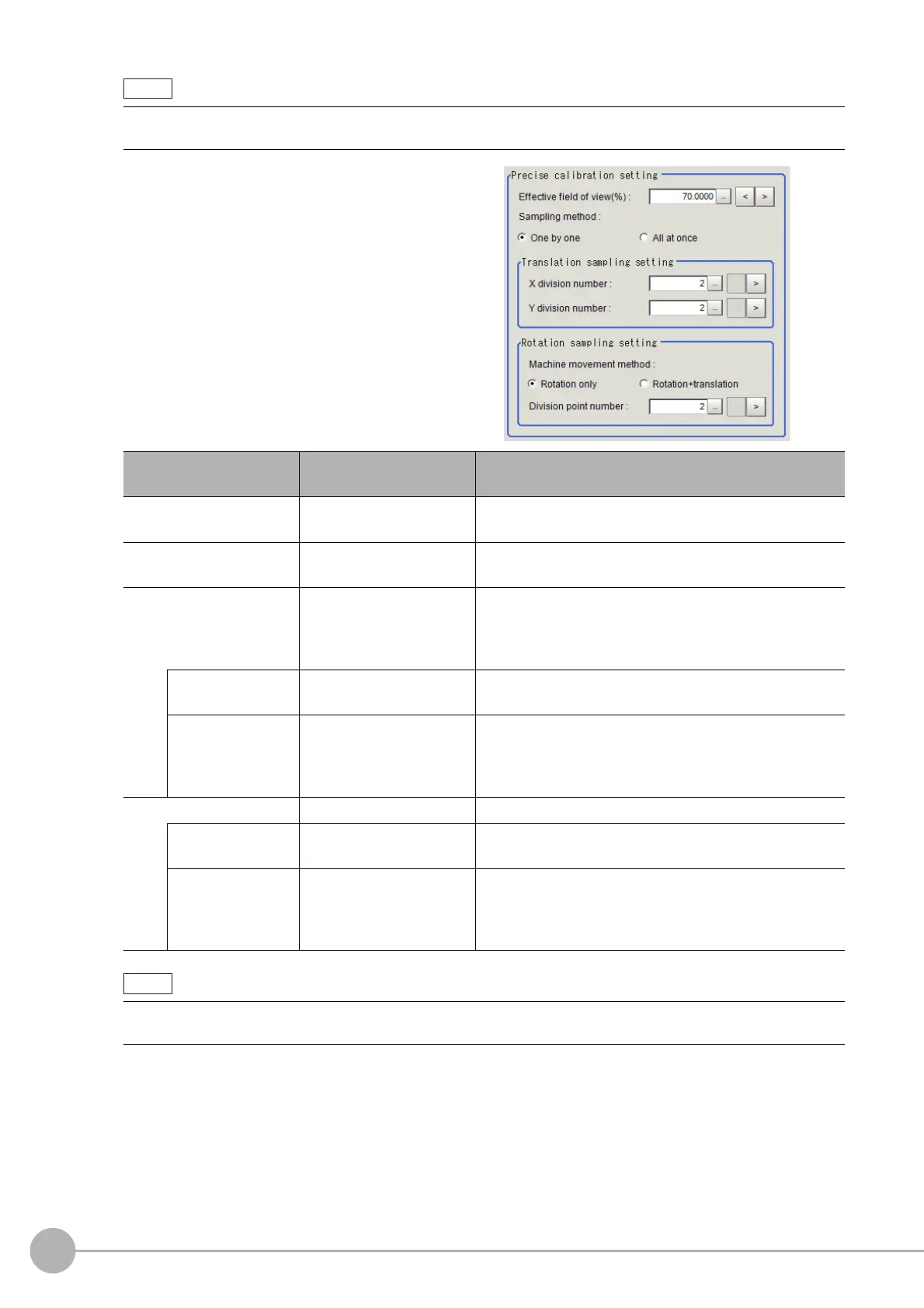

Setting item
Setting value
[Factory default]
Description
Effective field of view(%)
1 to 100
[70.0000]
Set the effective range of the field of view for the image
input un
it.
Sampling method
• [One by one]
• All at once
Select the Sampling method.
Translation sampling
setting
-
This setting item is a sampling method that Stage has to
mo
ve to X or
T axis. This method is composed of parallel
row to X axis and parallel column to Y axis. An intersection
point of its row and column will be sampling point
X division number
2 to 10
[2]
Sets the number of lines divided during parallel movement
samplin
g in th
is calibration.
Y division number
2 to 10
[2]
Set the number of columns divided during parallel
mo
vement sa
mpling in this calibration.
When data are selected one by one, Measuring Processing
Unit of
da
ta not targeted for sampling may be NG.
Rotation sampling setting - -
Machine moving
method
• [Rotation only]
• Rotation+translation
Set the external device movement method for rotational
sampling in th
is calibration.
Division point
nu
mber
2 to 100
[2]
Sets the number of division points for rotational sampling in
th
is ca
libration.
This setting is grayed out and is not applied when you
select [All
at once].
• When you select X
θ
(Y
θ
) or
θ
X(
θ
Y) Stage and set X axis as movement axis, only [Y division number] can be applied. In this
case, [X division number] is grayed out. When you select Y axis to the movement axis, [Y division number] is grayed out.
To Next Page
