Vision Master CalibrationFH/FZ5 Processing Item Function Reference Manual
751
4
Support Inspection and Measurement

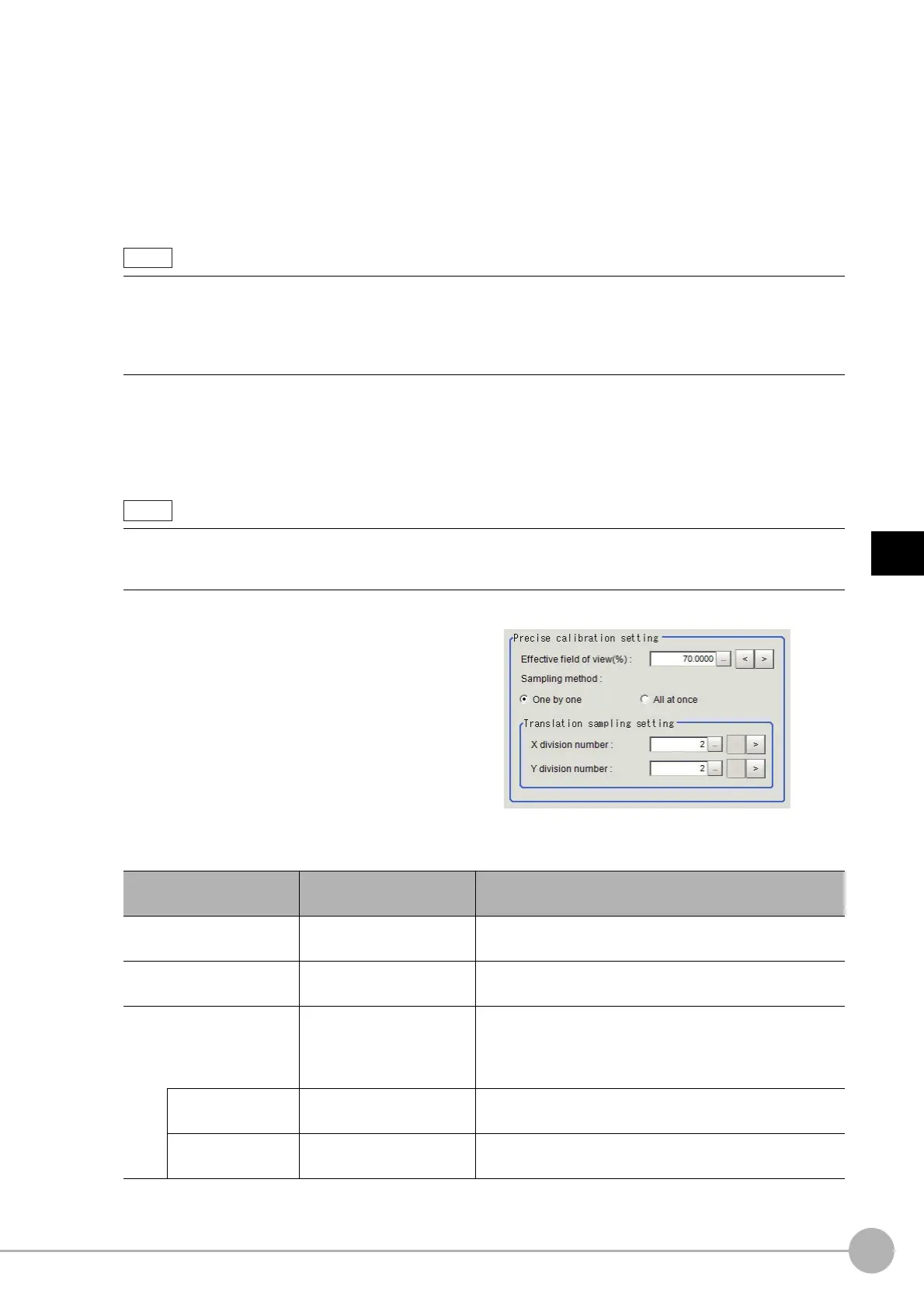

3 In this Precise calibration setting area, specify each item.
In this calibration, there are two methods for sampling. Creatable calibration data limit 8. One method is
creating sample one by one. Other one is creating all samples at the same time.
[One by one] in [Sampling method]
This function widens the sampling measurement area more than [All at once] because it calculates the
visual field range for each of calibration data.
[All at once] in [Sampling method]
This function is able to create the calibration data faster than [One by one] because all of the calibration
data are simultaneously created.
(1)
• When you select the XY or X(Y) stages in
Stag
e Da
ta function.
• When you select 3-axis robot in Robot
Data function.
• This calibration can be [NG] (failed) when inapplicable measurement processing unit data is [NG].
• In this case, change the determining method in [Calibration target] area. Set the unit judgment [JG] for
measuremen
t sampling to each judgment methods of calibration data. By setting this, normalizes calibration
processing even if inapplicable measurement processing unit data is judged as [NG].
(Reference: Calibration (Vision Master Calibration) (p.746))
• However, normalization of measurement processing unit may
not complete for each of calibration data.
• In this case, confirm evaluation value or maximum error detection value and retry to calibrate.
(Reference: Error detection values (p.758))
Setting item
Setting value
[Factory default]
Description
Effective field of view(%)
1 to 100
[70.0000]
Set the effective range of the field of view for the image
input un
it.
Sampling method
• [One by one]
• All at once
Select the Sampling method.
Translation sampling
setting
-
This setting item is a sampling method that Stage has to
mo
ve to X or
T axis. This method is composed of parallel
row to X axis and parallel column to Y axis. An intersection
point of its row and column will be sampling point.
X division number
2 to 10
[2]
Sets the number of lines divided during parallel movement
samplin
g in th
is calibration.
Y division number
2 to 10
[2]
Set the number of columns divided during parallel
mo
vement sampling in this calibration.
To Next Page
